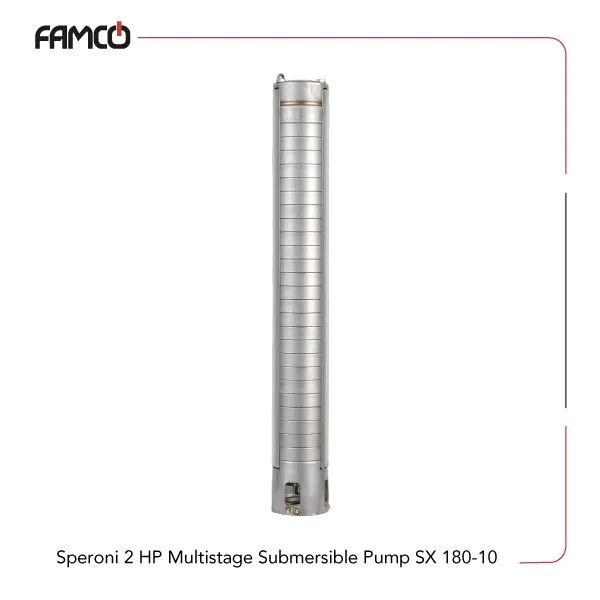

Speroni 2 HP Multistage Submersible Pump SX 180-10 Specifications
This product features a powerful 2 HP (1.5 kW) motor designed for efficient water pumping. It can handle a maximum flow rate of 180 liters per minute and delivers a maximum head of 58 meters. The pump is equipped with 10 stages, enhancing its ability to lift water over long distances or high elevations. It is suitable for immersion depths up to 150 meters, making it ideal for deep well applications. The device can operate with liquids up to 35°C and can tolerate sand content up to 50 grams per cubic meter, ensuring durability in challenging environments. Speroni designers have made the most out of this submersible pump by using all durable mateirals, such as theexternal casing, motor shaft, and stages all made from high-quality stainless steel AISI 304, giving it corrosion resistance and longevity. The pump weighs only 6.8 kilograms, making this Speroni submersible pump relatively lightweight and easy to install or maintain. Its robust construction and high performance make it suitable for various industrial, agricultural, and domestic water supply needs, especially where deep water extraction or high flow rates are required.
| Specification | Value |
| Power (HP) | 2 |
| Power (kW) | 1.5 |
| Max. flow rate (l/min) | 180 |
| Max. delivery head (m) | 58 |
| Number of stages | 10 |
| Max. immersion depth (m) | 150 |
| Max. liquid temperature (°C) | 35 |
| Sand content (g/m³) | 50 |
| External casing | stainless steel AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Stages and impellers | stainless steel AISI 304 |
| Weight (kg) | 6.8 |

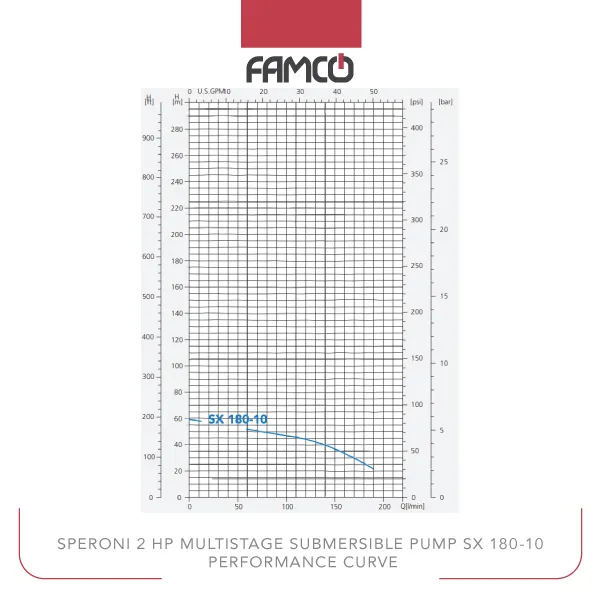

Speroni 2 HP Multistage Submersible Pump SX 180-10 Performance Data
| m³/h | 0 | 2.4 | 2.7 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 |
| head (m) | 58 | 54 | 53 | 52 | 51 | 49 | 48 | 47 | 46 | 43 | 38 | 32 | 25 |
Speroni 2 HP Multistage Submersible Pump SX 180-10 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Municipal water supply
Speroni 2 HP Multistage Submersible Pump SX 180-10 Benefits
- High efficiency with 10-stage design
- Corrosion-resistant stainless steel build
- Suitable for deep immersion up to 150 meters
- Handles high flow rates and sand content
Speroni 2 HP Multistage Submersible Pump SX 180-10 Price List
| No. | Name | Price |
| 1 | Speroni 2 HP Multistage Submersible Pump SX 180-10 Price | Contact us |
