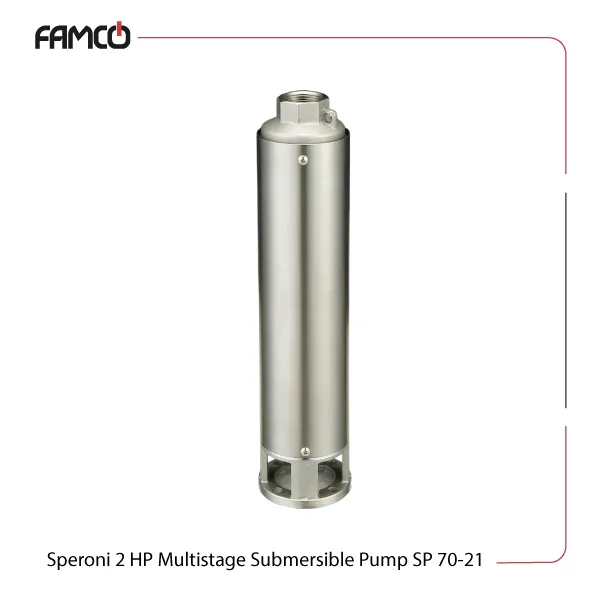

Speroni 2 HP Multistage Submersible Pump SP 70-21 Specifications
This Speroni product submersible pump offers a power of 2 HP (1.5 kW) and is designed for demanding applications. It features a head height of 142 meters and can handle a maximum flow rate of 70 liters per minute. The pump is suitable for immersion depths up to 150 meters and can operate efficiently with liquids up to 35°C. It is equipped with a stainless steel AISI 304 motor shaft, ensuring durability and corrosion resistance. The mechanical seal made of ceramic and graphite provides a reliable seal for extended usage durations. The impellers are made from Noryl, a durable plastic material that withstands wear and tear. Most Speroni pumps, including the SP 70-21, support both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50Hz and two poles. This Speroni submersible pump’s F insulation class, and an IP68 protection degree, have made this pumping solution resistant to dust and water ingress to a great extent. The pump can handle sand content up to 50 g/m3, making it suitable for various water and wastewater applications.
| Specification | Value |
| Power (HP) | 2 |
| Power (kW) | 1.5 |
| Head (m) | 142 |
| Max. flow rate (l/min) | 70 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Motor shaft | stainless steel aisi 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

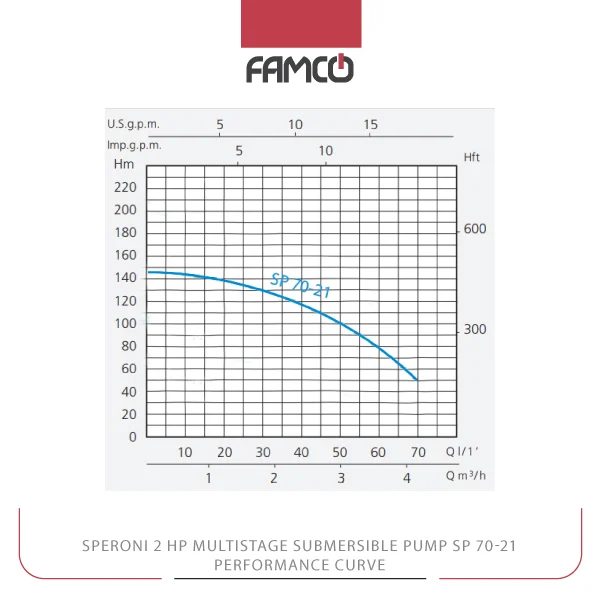

Speroni 2 HP Multistage Submersible Pump SP 70-21 Performance Data
| M3/h | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| Head (m) | 142 | 141 | 135 | 132 | 127 | 122 | 115 | 108 | 100 | 79 | 49 |

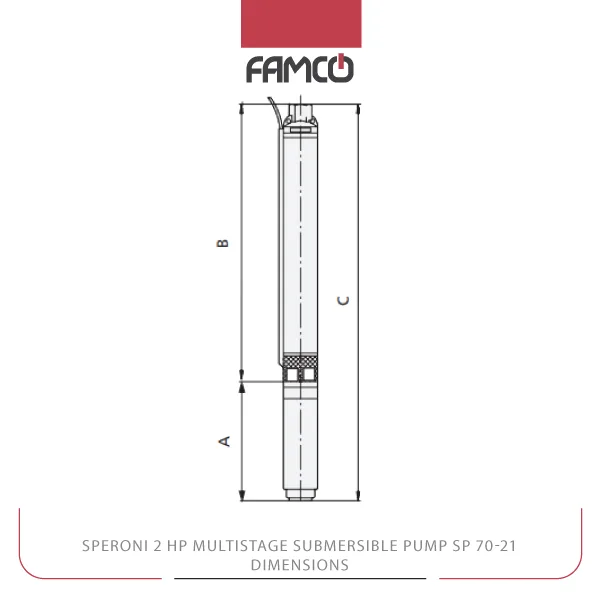

Speroni 2 HP Multistage Submersible Pump SP 70-21 Dimensions
| Dimensions (mm) | A | 440 |
| B | 519 | |
| C | 959 |
Speroni 2 HP Multistage Submersible Pump SP 70-21 Applications
- Water drainage in construction sites
- Irrigation systems for agriculture
- Municipal water management
- Industrial wastewater transfer
Speroni 2 HP Multistage Submersible Pump SP 70-21 Benefits
- High durability with stainless steel shaft and ceramic seal
- Supports both single-phase and three-phase power
- Can operate at great depths up to 150 meters
- Handles sand content up to 50 g/m3 for versatile use
Speroni 2 HP Multistage Submersible Pump SP 70-21 Price List
| No. | Name | Price |
| 1 | Speroni 2 HP Multistage Submersible Pump SP 70-21 Price | Contact us |
