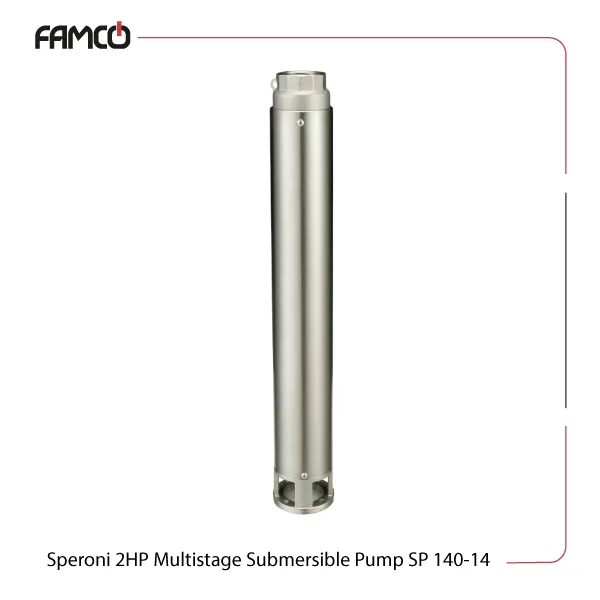

Speroni 2 HP Multistage Submersible Pump SP 140-14 Specifications
This product features a powerful 2 HP (1.5 kW) motor designed for continuous duty. It can operate at a head height of 90 meters and handle a maximum flow rate of 140 liters per minute. The pump is capable of immersion up to 150 meters deep, ideal for deep well or sump applications. This Speroni pump has been equipped with the technology to support both single-phase (230V) and three-phase (400V) power supplies, and a frequency of 50 Hz and two poles. The motor’s insulation class is F. Its protection degree is IP68, meaning this Speroni submersible pump is fully protected against dust and water ingress, such as found in the United Arab Emirates. The motor shaft is made of stainless steel AISI 304, providing corrosion resistance. The mechanical seal is composed of ceramic and graphite, offering reliable sealing performance. The impellers are made from Noryl, a durable plastic material that ensures efficient fluid movement. The pump is designed to operate with liquids up to 35°C and can handle sand content up to 50 g/m3, making it versatile for various water transfer tasks.
| Specification | Value |
| Power (HP) | 2 |
| Power (kW) | 1.5 |
| Head (m) | 90 |
| Max. flow rate (l/min) | 140 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

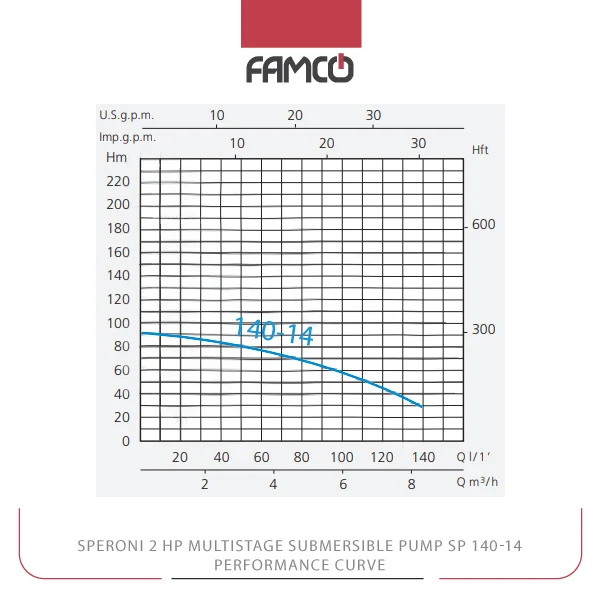

Speroni 2 HP Multistage Submersible Pump SP 140-14 Performance Data
| M3/h | 0 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 |
| l/min | 0 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 |
| Head (m) | 90 | 77 | 74 | 71 | 68 | 63 | 59 | 46 | 28 |

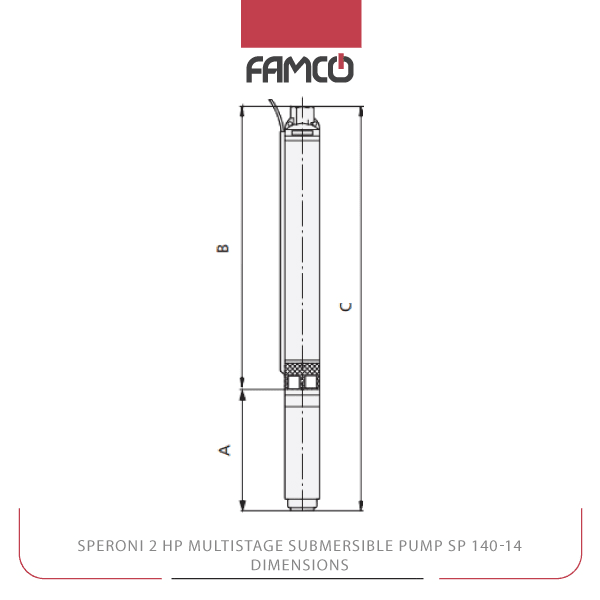

Speroni 2 HP Multistage Submersible Pump SP 140-14 Dimensions
| Dimensions (mm) | A | 405 |
| B | 483 | |
| C | 888 |
Speroni 2 HP Multistage Submersible Pump SP 140-14 Applications
- Deep well water extraction
- Sump drainage and dewatering
- Irrigation systems
- Industrial water transfer
Speroni 2 HP Multistage Submersible Pump SP 140-14 Benefits
- High efficiency with 2 HP power and 90-meter head
- Durable construction with stainless steel shaft and IP68 protection
- Suitable for continuous operation in harsh environments
- Handles water temperatures up to 35°C and sand content up to 50 g/m3
Speroni 2 HP Multistage Submersible Pump SP 140-14 Price List
| No. | Name | Price |
| 1 | Speroni 2 HP Multistage Submersible Pump SP 140-14 Price | Contact us |
