Speroni 2 HP Multistage Submersible Pump SP 100-18 Specifications
This robust submersible pump offers a powerful 2 HP (1.5 kW) motor designed for continuous duty, making it suitable for demanding applications. It features a maximum head of 120 meters and can handle a flow rate of up to 100 liters per minute. The pump is capable of operating at a maximum immersion depth of 150 meters, ideal for deep water extraction or drainage tasks. It supports both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50Hz and two poles for efficient operation. The motor embeded in the SP 100-18 Speroni submersible pump is built with an insulation class F, ensuring safety and durability under various conditions. Its protection degree is IP68, meaning it is fully protected against dust and water ingress, suitable for submerged environments. The motor shaft is made from stainless steel AISI 304, providing corrosion resistance. The mechanical seal is composed of ceramic and graphite, offering reliable sealing performance. The impellers are made from Noryl, a durable plastic material that ensures efficient fluid movement and longevity. The pump is designed to handle liquids with a maximum temperature of 35°C and can tolerate sand content up to 50 grams per cubic meter, making it suitable for use in environments with some particulate matter.
| Specification | Value |
| Power (HP) | 2 |
| Power (kW) | 1.5 |
| Head (m) | 120 |
| Max. flow rate (l/min) | 100 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel aisi 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

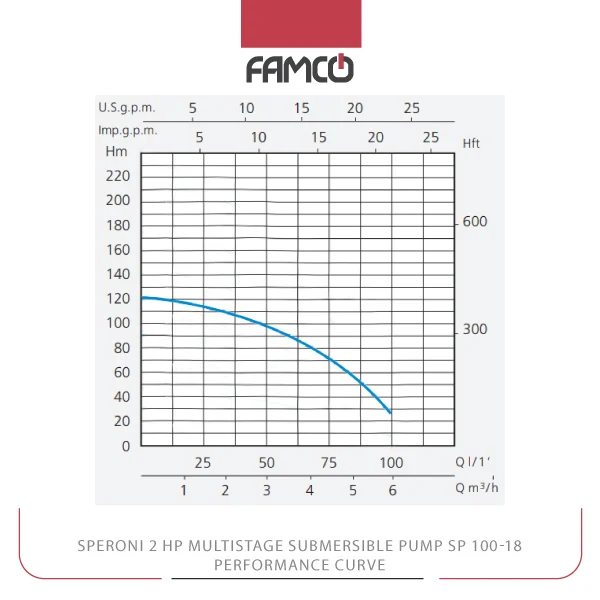

Speroni 2 HP Multistage Submersible Pump SP 100-18 Performance Data
| M3/h | 0 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
| l/min | 0 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Head (m) | 120 | 113 | 111 | 108 | 105 | 98 | 88 | 75 | 60 | 42 | 25 |

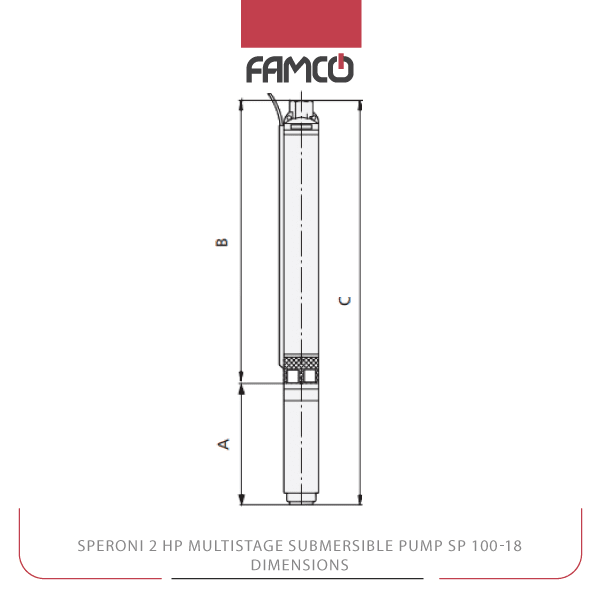

Speroni 2 HP Multistage Submersible Pump SP 100-18 Dimensions
| Dimensions (mm) | A | 440 |
| B | 538 | |
| C | 978 |
Speroni 2 HP Multistage Submersible Pump SP 100-18 Applications
- Deep well water extraction
- Industrial drainage systems
- Flood control and water removal
- Agricultural irrigation
Speroni 2 HP Multistage Submersible Pump SP 100-18 Benefits
- High durability with stainless steel shaft and IP68 protection
- Versatile power options for different setups
- Reliable performance with ceramic/graphite seal
- Capable of handling deep immersion and particulate matter
Speroni 2 HP Multistage Submersible Pump SP 100-18 Price List
| No. | Name | Price |
| 1 | Speroni 2 HP Multistage Submersible Pump SP 100-18 Price | Contact us |
