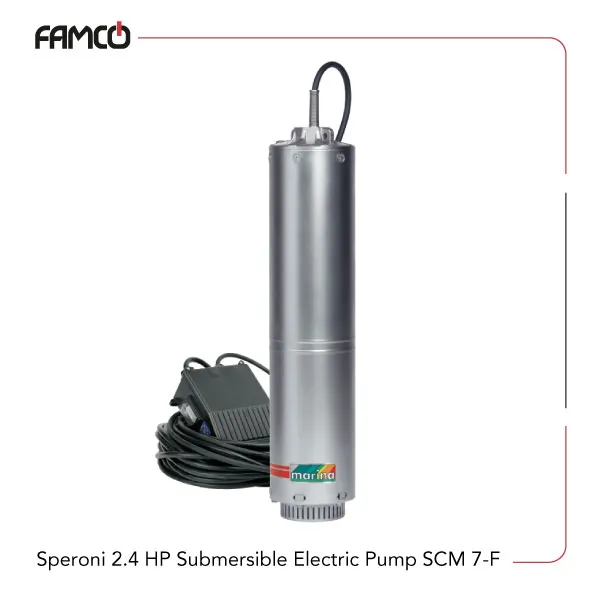

Speroni 2.4 HP Submersible Electric Pump SCM 7-F Specifications
This product features a power output of 1.8 kW (2.4 HP), making it suitable for various demanding applications. It operates on a single-phase power supply of 230V at 50Hz, with a current draw of 8.5A. This Speroni submersible pump can handle a maximum flow rate of 5.7 cubic meters per hour, which is equivalent to 95 liters per minute, and can generate a maximum head of 84 meters. Its inlet diameter is 1 1/4 inch (DNM), ensuring compatibility with standard piping systems. This Speroni submersible pump weighs 23.5 kilograms. It is designed to work with liquids up to 35°C and can be submerged up to 20 meters deep, making it ideal for deep well or sump applications. The device is resistant to sand with a content of up to 40 grams per cubic meter, ensuring durability in sandy environments. Its insulation class is F, providing good thermal resistance, and it has an IP 68 protection degree, meaning it is fully protected against dust and capable of withstanding continuous immersion in water. Overall, this pump combines power, durability, and versatility, suitable for various industrial, agricultural, or water management tasks.
| Specification | Value |
| Power (kW) | 1.8 |
| Power (HP) | 2.4 |
| Current (A) | 8.5 |
| Maximum Flow rate (m3/h) | 5.7 |
| Maximum Flow rate (l/min) | 95 |
| Maximum Head (m) | 84 |
| DNM | 1 1/4 inch |
| Weight (kg) | 23.5 |
| Liquid temperature | up to 35°C |
| Submersion depth | 20 mt |
| Sand content | 40 g/m3 |
| Phase | Single-phase |
| Voltage | 230V |
| Frequency | 50Hz |
| Insulation Class | F |
| Protection Degree | IP 68 |

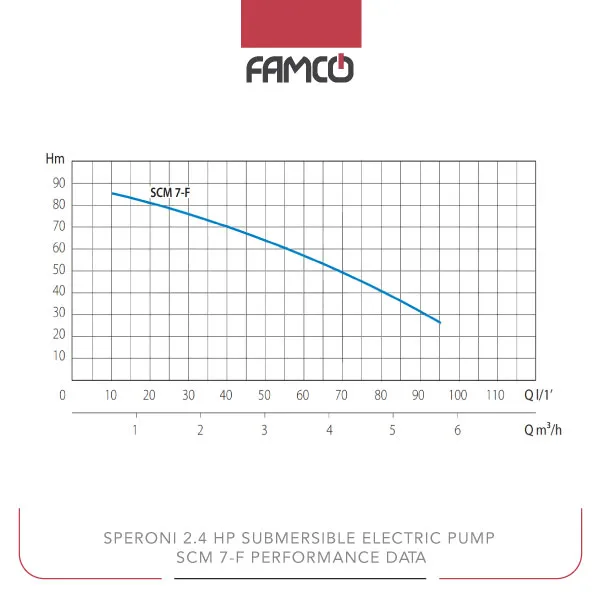

Speroni 2.4 HP Submersible Electric Pump SCM 7-F Performance Data
| Q (m3/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.8 | 2.7 | 3.6 | 4.2 | 5.1 | 5.7 |
| Q (l/min) | 0 | 5 | 10 | 15 | 20 | 30 | 45 | 60 | 70 | 85 | 95 |
| H (m) | 84 | 83 | 80 | 77 | 74 | 67 | 55 | 67 | 47 | 35 | 25 |
Speroni 2.4 HP Submersible Electric Pump SCM 7-F Applications
- Deep well water extraction
- Sump and drainage systems
- Irrigation and agricultural water supply
- Industrial water transfer
Speroni 2.4 HP Submersible Electric Pump SCM 7-F Benefits
- High maximum head for deep water applications
- Durable IP 68 protection for water and dust resistance
- Suitable for sandy environments with high sand tolerance
- Compact and lightweight for easy handling
Speroni 2.4 HP Submersible Electric Pump SCM 7-F Price List
| No. | Name | Price |
| 1 | Speroni 2.4 HP Submersible Electric Pump SCM 7-F Price | Contact us |
