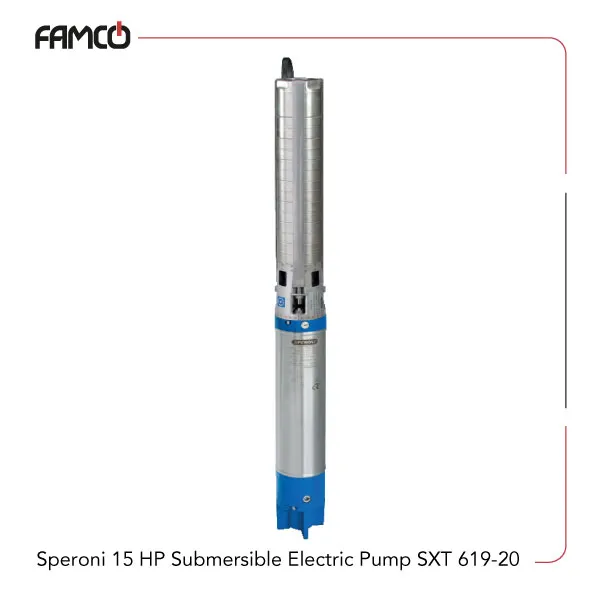

Speroni 15 HP Submersible Electric Pump SXT 619-20 Specifications
Speroni submersible electric pump SXT 619-20 features an 11 kW (15 HP) motor, designed for high performance applications. It can handle a maximum flow rate of 23 cubic meters per hour, which translates to 383 liters per minute, making it suitable for demanding tasks. The pump can generate a maximum head of 216 meters, providing strong vertical lift capabilities. It has a DNM connection size of 2 inches and a 1/2 inch thread. The device is capable of operating in liquid temperatures up to 35°C, ensuring versatility in various environments. It supports a submersion depth of up to 350 meters, ideal for deep well or borehole applications. This Speroni submersible pump is resistant to sand with a content of 50 grams per cubic meter, ensuring durability in sandy or gritty conditions. It operates on a three-phase power supply, suitable for industrial settings. The insulation class is B, indicating good thermal resistance, and it features an IP 68 protection degree, making it dust-tight and waterproof for submerged use.
| Specification | Value |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Maximum Flow rate (m3/h) | 23 |
| Maximum Flow rate (l/min) | 383 |
| Maximum Head (m) | 216 |
| DNM | 2″ 1/2 |
| Liquid temperature | up to 35°C |
| Submersion depth | 350 meters |
| Sand content | 50 g/m3 |
| Phase | Three-phase |
| Insulation Class | B |
| Protection Degree | IP 68 |

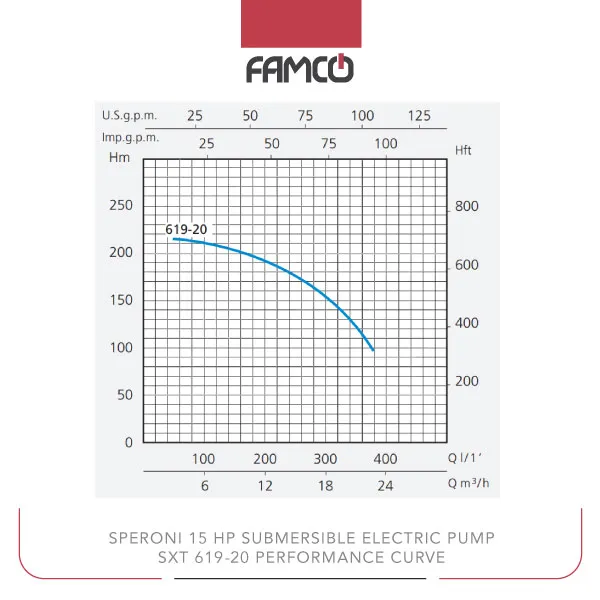

Speroni 15 HP Submersible Electric Pump SXT 619-20 Performance Data
| Q (m3/h) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| Q (l/min) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| H (m) | 216 | 213 | 206 | 192 | 175 | 147 | 116 | 95 |
Speroni 15 HP Submersible Electric Pump SXT 619-20 Applications
- Deep well water extraction
- Industrial water transfer
- Drainage and flood control
- Irrigation systems
Speroni 15 HP Submersible Electric Pump SXT 619-20 Benefits
- High power and efficiency for demanding tasks
- Deep submersion capability up to 350 meters
- Resistant to sand and water for durability
- Suitable for continuous industrial use
Speroni 15 HP Submersible Electric Pump SXT 619-20 Price List
| No. | Name | Price |
| 1 | Speroni 15 HP Submersible Electric Pump SXT 619-20 Price | Contact us |
