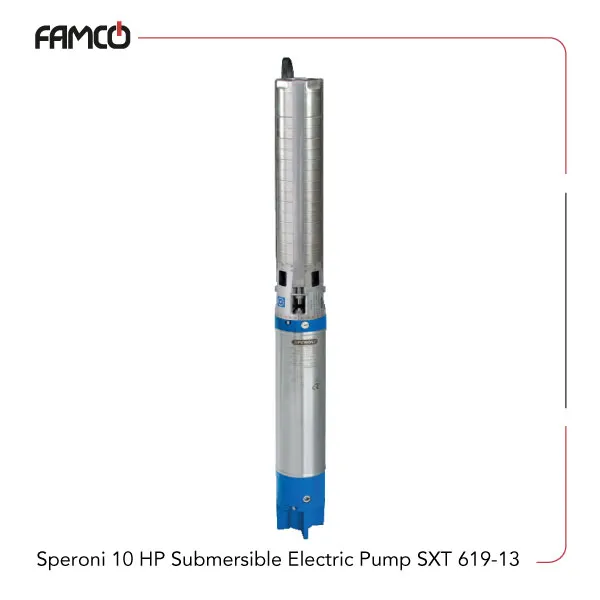

Speroni 10 HP Submersible Electric Pump SXT 619-13

7.5 kW (10 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Speroni Pumps, Speroni Submersible Pumps

Overview of Speroni 10 HP Submersible Electric Pump SXT 619-13

Speroni 10 HP submersible electric pump SXT 619-13 delivers a robust 7.5 kW (10 HP) of power, making it well-suited for a wide range of demanding tasks. It can move water at an impressive pace, reaching up to 23 cubic meters per hour; so it keeps operations running smoothly without unnecessary delays. When it comes to vertical reach, it can lift water to heights of 141 meters, making it ideal for applications where significant elevation is involved. Overall, it’s a versatile unit capable of handling heavy workloads with ease.

Speroni 10 HP Submersible Electric Pump SXT 619-13 Specifications

Speroni submersible electric pump SXT 619-13 features a strong 7.5 kW (10 HP) motor, designed for demanding industrial and deep submersion applications. It can handle up to 23 cubic meters per hour, or 383 liters per minute, and can generate a maximum head of 141 meters. The inlet diameter is 2½ inches (DNM), compatible with standard piping systems. It is designed to operate with liquids up to 35°C and can be submerged up to 350 meters, offering flexibility for challenging water sources. This Speroni submersible pump can tolerate sand content up to 50 grams per cubic meter, ensuring durability in sandy or particulate-laden environments. Running on a three-phase power supply, the pump features insulation class B for thermal protection and an IP68 rating for complete sealing against dust and water. With this combination of power, depth capability, and robust construction, it is ideal for long-term, demanding applications in harsh conditions.

Specification	Value
Power (kW)	7.5
Power (HP)	10
Maximum Flow rate (m3/h)	23
Maximum Flow rate (l/min)	383
Maximum Head (m)	141
DNM	2″ 1/2
Liquid temperature	up to 35°C
Submersion depth	350 mt
Sand content	50 g/m3
Phase	Three-phase
Insulation Class	B
Protection Degree	IP 68

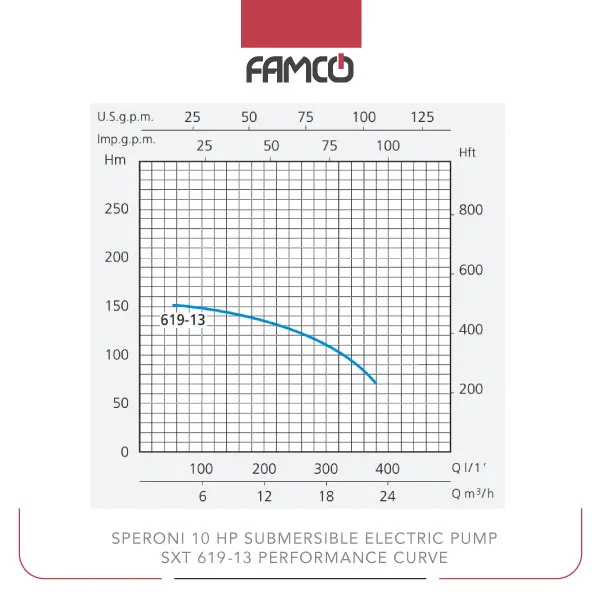

Speroni 10 HP Submersible Electric Pump SXT 619-13 Performance Data

Q (m3/h)	3	6	9	12	15	18	21	23
Q (l/min)	50	100	150	200	250	300	350	383
H (m)	141	139	133	124	112	95	75	60

Speroni 10 HP Submersible Electric Pump SXT 619-13 Applications

Deep well water extraction
Industrial water supply systems
Municipal water treatment plants
Agricultural irrigation systems

Speroni 10 HP Submersible Electric Pump SXT 619-13 Benefits

High flow capacity for demanding tasks
Deep submersion capability up to 350 meters
Durable construction with sand tolerance
Reliable and safe operation with IP 68 protection

Speroni 10 HP Submersible Electric Pump SXT 619-13 Price List

No.	Name	Price
1	Speroni 10 HP Submersible Electric Pump SXT 619-13 Price	Contact us

Brand	Speroni
Power (HP)	10
Power (kW)	7.5
Maximum Flow Rate (m3/h)	23
Maximum Flow Rate (L/min)	383
Maximum Delivery Head (m)	141
Degree of Protection	IP68
Number of Phases	Three-phase
Insulation Class	B
