Speroni 10 HP Multistage Submersible Pump SX 180-44 Specifications
This high-performance pump features a powerful 10 HP (7.5 kW) motor, designed for demanding applications. It can handle a maximum flow rate of 180 liters per minute and deliver water up to 256 meters high. The pump consists of 44 stages, which contribute to its strong lifting capacity. It is suitable for immersion depths up to 150 meters and can operate with liquids at temperatures up to 35°C. The device is built with durable stainless steel AISI 304 for the external casing, motor shaft, and impellers, ensuring resistance to corrosion and wear. It weighs approximately 23.3 kilograms, making this Speroni submersible pumping unit sturdy yet manageable for installation and maintenance. The pump is ideal for situations involving sand content up to 50 g/m³, making it suitable for various water transfer and boosting tasks in challenging environments. Its robust construction and high efficiency make it a reliable choice for industrial, agricultural, or municipal water systems requiring deep well pumping and high flow capabilities.
| Specification | Value |
| Power (HP) | 10 |
| Power (kW) | 7.5 |
| Max. flow rate (l/min) | 180 |
| Max. delivery head (m) | 256 |
| Number of stages | 44 |
| Max. immersion depth (m) | 150 |
| Max. liquid temperature (°C) | 35 |
| Sand content (g/m³) | 50 |
| External casing | stainless steel AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Stages and impellers | stainless steel AISI 304 |
| Weight (kg) | 23.3 |

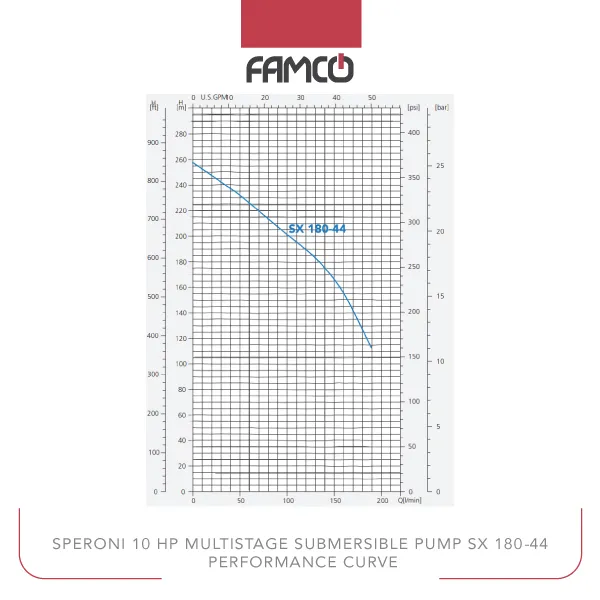

Speroni 10 HP Multistage Submersible Pump SX 180-44 Performance Data
| m³/h | 0 | 2.4 | 2.7 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 |
| head (m) | 256 | 240 | 236 | 232 | 224 | 217 | 212 | 207 | 203 | 192 | 175 | 148 | 112 |
Speroni 10 HP Multistage Submersible Pump SX 180-44 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
Speroni 10 HP Multistage Submersible Pump SX 180-44 Benefits
- High lifting capacity with 44 stages
- Corrosion-resistant stainless steel build
- Suitable for sandy water sources
- Reliable performance at high flow rates
Speroni 10 HP Multistage Submersible Pump SX 180-44 Price List
| No. | Name | Price |
| 1 | Speroni 10 HP Multistage Submersible Pump SX 180-44 Price | Contact us |
