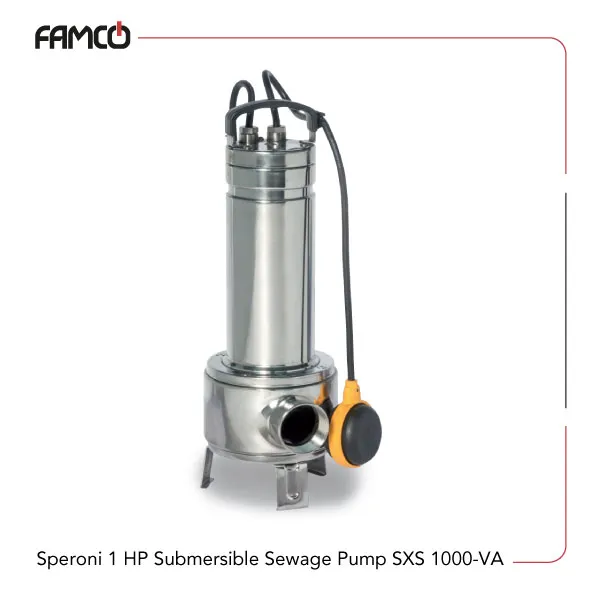

Speroni 1 HP Submersible Sewage Pump SXS 1000-VA Specifications
This pump features a single-phase motor delivering 1 HP (0.75 kW) and draws 4.8 amperes, offering energy-conscious performance for its class. It can move up to 21 cubic meters per hour or 350 liters per minute. This Speroni sewage pump can reach a maximum head of 9 meters, allowing liquids to be lifted effectively over short distances. Weighing around 12.9 kg, it is lightweight and easy to install or relocate. Equipped with a 2-inch (DNM) pipe connection, it fits standard piping systems seamlessly. Its insulation class F provides solid thermal resistance, and the IP68 protection rating ensures strong resistance against dust and water, making it suitable for challenging environments. The pump can handle liquids up to 35°C and can also be adapted for other applications with different temperature requirements. With a maximum immersion depth of 5 meters, it is ideal for submersible use in wells, tanks, or other submerged environments, offering both versatility and dependable performance.
| Specification | Value |
| Number of phases | Single-phase |
| Power (HP) | 1 |
| Power (kW) | 0.75 |
| Current (A) | 4.8 |
| Maximum Flow rate (m3/h) | 21 |
| Maximum Flow rate (l/min) | 350 |
| Maximum head (m) | 9 |
| Weight (kg) | 12.9 |
| Pipe (DNM) | 2″ |
| Insulation Class | F |
| Protection Degree | IP 68 |
| Temperature max. liquid | 35°C (for other uses) |
| Maximum immersion depth | 5 meters |

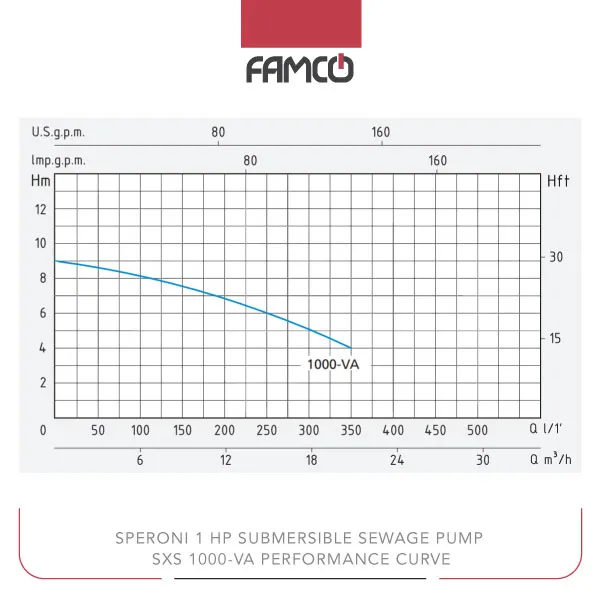

Speroni 1 HP Submersible Sewage Pump SXS 1000-VA Performance Data
| Q (m3/h) | 0 | 3.6 | 5.4 | 7.2 | 9 | 12 | 15 | 21 |
| Q (l/min) | 0 | 60 | 90 | 120 | 150 | 200 | 250 | 350 |
| H (m) | 9 | 8.3 | 8 | 7.8 | 7.5 | 7 | 6 | 4 |
Speroni 1 HP Submersible Sewage Pump SXS 1000-VA Applications
- Water supply systems in residential or commercial buildings
- Drainage and sewage management
- Irrigation systems for agriculture
- Submersible pumping in wells and tanks
Speroni 1 HP Submersible Sewage Pump SXS 1000-VA Benefits
- High protection against dust and water with IP 68 rating
- Efficient performance with a maximum flow of 21 m3/h
- Easy to install and portable due to lightweight design
- Durable construction suitable for harsh environments
Speroni 1 HP Submersible Sewage Pump SXS 1000-VA Price List
| No. | Name | Price |
| 1 | Speroni 1 HP Submersible Sewage Pump SXS 1000-VA Price | Contact us |
