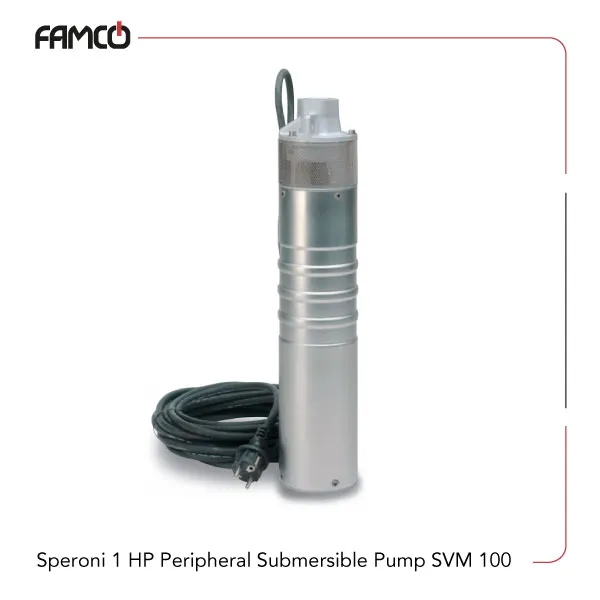

Speroni 1 HP Submersible Pump SVM 100 Specifications
Speroni submersible pump SVM 100 features a power output of 0.75 kW, equivalent to 1 HP, and operates on a single-phase power supply of 230 volts. It draws a current of 5.5 amperes, making it energy-efficient for its class. The pump can handle a maximum flow rate of 3 cubic meters per hour, which translates to about 50 liters per minute, suitable for various water transfer tasks. It can generate a maximum head of 53 meters, allowing it to lift water efficiently over considerable heights. The inlet diameter is 2.5 inches (DNM), providing a good balance between flow capacity and ease of installation. It is designed to work with liquids at temperatures up to 35°C, making it suitable for most water pumping applications. This Speroni submersible pump can operate submerged up to 30 meters deep, ideal for deep well or pond applications. It can handle sand content up to 10 grams per cubic meter, ensuring durability in sandy environments. The device is built with a robust insulation class F, offering good thermal resistance, and has an IP 68 protection degree, making it fully waterproof and dustproof for outdoor or harsh environments.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Current (A) | 5.5 |
| Maximum Flow rate (m3/h) | 3 |
| Maximum Flow rate (l/min) | 50 |
| Maximum Head (m) | 53 |
| DNM | 2″ 1/2 |
| Liquid temperature | up to 35°C |
| Submersion depth | 30 mt |
| Sand content | 10 g/m3 |
| Phase | Single-phase |
| Insulation Class | F |
| Protection Degree | IP 68 |
| Voltage (V) | 230 |

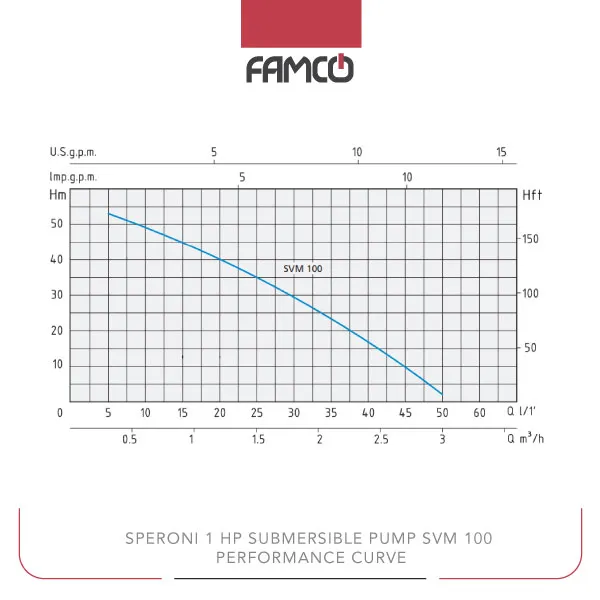

Speroni 1 HP Submersible Pump SVM 100 Performance Data
| Q (m3/h) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 |
| Q (l/min) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| H (m) | 53 | 50 | 46 | 41 | 35 | 28 | 20 | 10 | 5 | 2 |
Speroni 1 HP Submersible Pump SVM 100 Applications
- Deep well water extraction
- Irrigation systems
- Pond and fountain water circulation
- Industrial water transfer
Speroni 1 HP Submersible Pump SVM 100 Benefits
- High durability with IP 68 protection
- Efficient performance with 1 HP power
- Suitable for deep submersion up to 30 meters
- Handles sandy water with ease
Speroni 1 HP Submersible Pump SVM 100 Price List
| No. | Name | Price |
| 1 | Speroni 1 HP Submersible Pump SVM 100 Price | Contact us |
