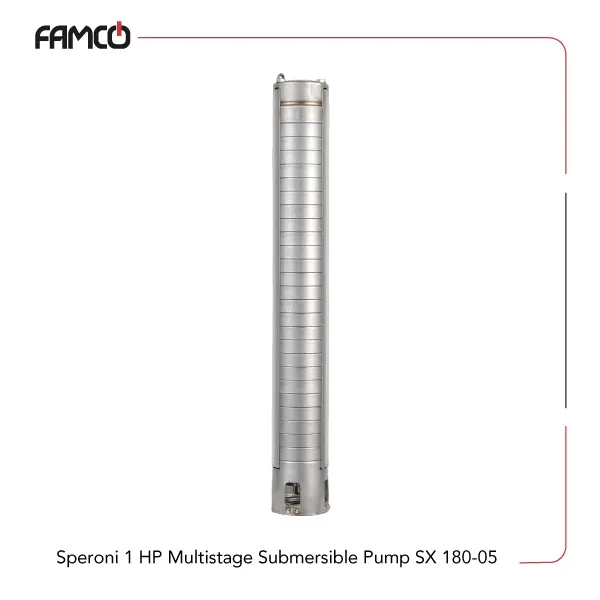

Speroni 1 HP Multistage Submersible Pump SX 180-05 Specifications
This Speroni product features a 1 HP (0.75 kW) motor capable of delivering a maximum flow rate of 180 liters per minute. It has a maximum delivery head of 30 meters and includes 5 stages for efficient pumping. The Speroni pumping solution you see here can operate at a maximum immersion depth of 150 meters, making it suitable for deep well applications. It handles liquids with a temperature up to 35°C and can process sand content up to 50 grams per cubic meter. The external casing, motor shaft, and stages with impellers placed inside this Speroni submersible pumping solution are all made from durable stainless steel AISI 304, ensuring corrosion resistance and longevity. The pump weighs 4.3 kilograms, making it relatively lightweight and easy to install or move as needed.
| Specification | Value |
| Power (HP) | 1 |
| Power (kW) | 0.75 |
| Max. flow rate (l/min) | 180 |
| Max. delivery head (m) | 30 |
| Number of stages | 5 |
| Max. immersion depth (m) | 150 |
| Max. liquid temperature (°C) | 35 |
| Sand content (g/m³) | 50 |
| External casing | stainless steel AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Stages and impellers | stainless steel AISI 304 |
| Weight (kg) | 4.3 |

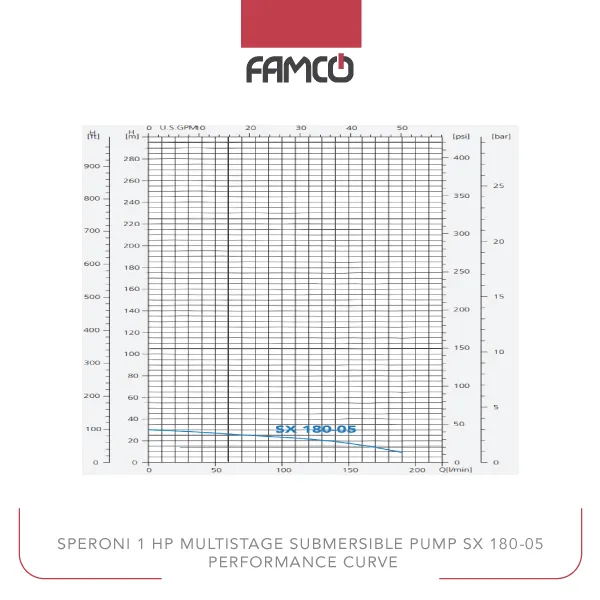

Speroni 1 HP Multistage Submersible Pump SX 180-05 Performance Data
| m³/h | 0 | 2.4 | 2.7 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 |
| head (m) | 30 | 28 | 27 | 26 | 26 | 25 | 24 | 23 | 22 | 21 | 19 | 15 | 11 |
Speroni 1 HP Multistage Submersible Pump SX 180-05 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Domestic water supply
Speroni 1 HP Multistage Submersible Pump SX 180-05 Benefits
- Durable stainless steel construction for corrosion resistance
- High efficiency with 5-stage design
- Capable of operating at great depths up to 150 meters
- Lightweight and easy to install
Speroni 1 HP Multistage Submersible Pump SX 180-05 Price List
| No. | Name | Price |
| 1 | Speroni 1 HP Multistage Submersible Pump SX 180-05 Price | Contact us |
