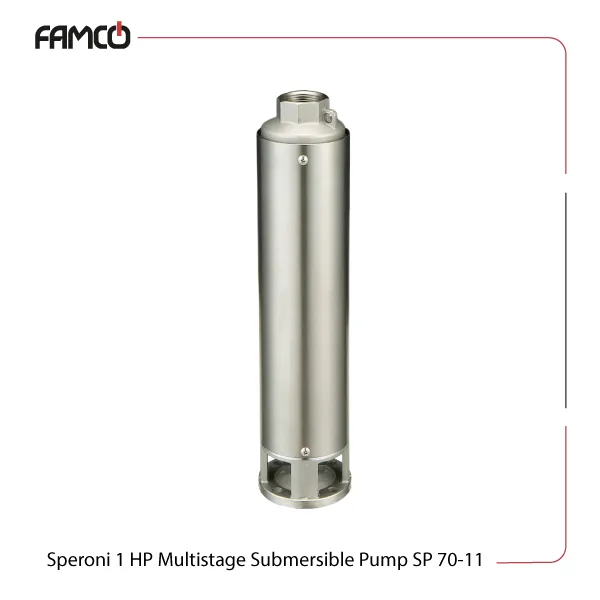

Speroni 1 HP Multistage Submersible Pump SP 70-11 Specifications
This submersible pump features a 1 HP (0.75 kW) motor designed for continuous duty operation. It can generate a head of 72 meters and handle a maximum flow rate of 70 liters per minute. The pump is suitable for immersion depths up to 150 meters and can operate with liquid temperatures up to 35°C. The SP Speroni submersible pump series supports both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50Hz and 2 poles. The motor has an insulation class F and a protection degree of IP68, ensuring durability and safety in harsh environments. The Speroni pump‘s shaft is made of stainless steel AISI 304, providing corrosion resistance. The mechanical seal is composed of ceramic and graphite, enhancing sealing performance. The impellers are made of Noryl, a durable plastic material suitable for various liquids. The pump can handle sand content up to 50 g/m3, making it ideal for applications involving slightly contaminated liquids.
| Specification | Value |
| Power (HP) | 1 |
| Power (kW) | 0.75 |
| Head (m) | 72 |
| Max. flow rate (l/min) | 70 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | Continuous duty |
| Motor shaft | Stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

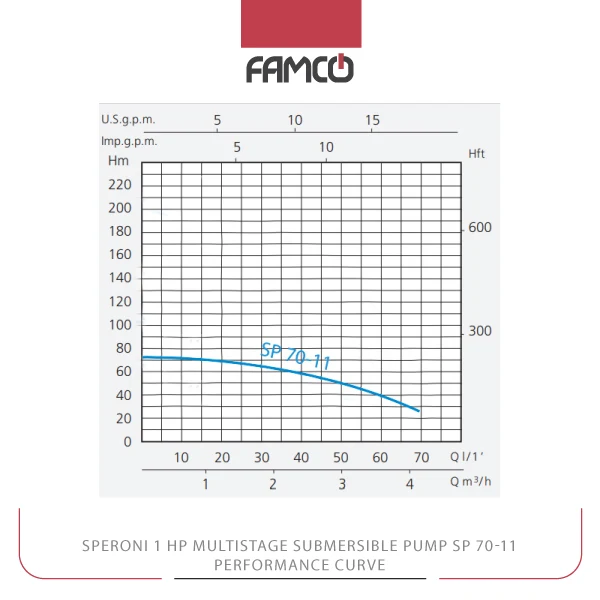

Speroni 1 HP Multistage Submersible Pump SP 70-11 Performance Data
| M3/h | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| Head (m) | 72 | 71 | 68 | 66 | 64 | 61 | 58 | 54 | 49 | 38 | 26 |

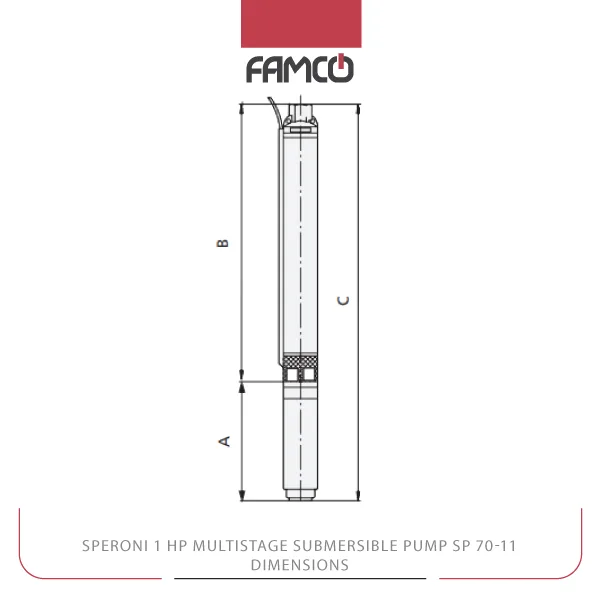

Speroni 1 HP Multistage Submersible Pump SP 70-11 Dimensions
| Dimensions (mm) | A | 380 |
| B | 342 | |
| C | 722 |
Speroni 1 HP Multistage Submersible Pump SP 70-11 Applications
- Deep well water extraction
- Groundwater management
- Industrial water transfer
- Municipal water systems
Speroni 1 HP Multistage Submersible Pump SP 70-11 Benefits
- High durability with stainless steel shaft and IP68 protection
- Versatile power options for different setups
- Capable of handling deep immersion and high head requirements
- Suitable for slightly contaminated liquids with sand content up to 50 g/m3
Speroni 1 HP Multistage Submersible Pump SP 70-11 Price List
| No. | Name | Price |
| 1 | Speroni 1 HP Multistage Submersible Pump SP 70-11 Price | Contact us |
