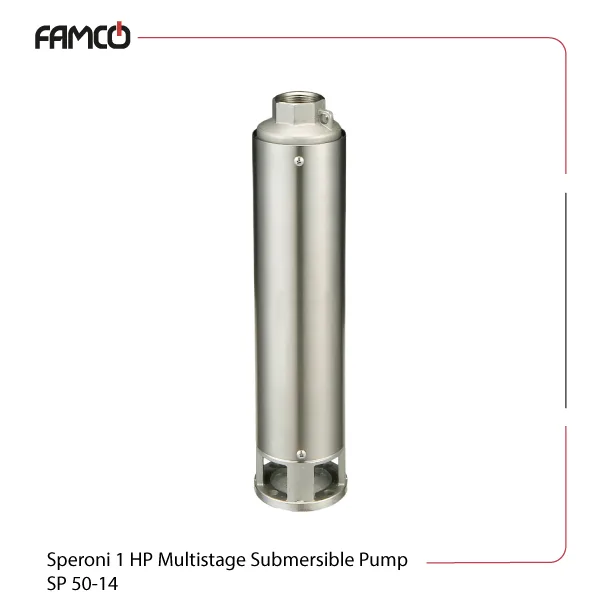

Speroni 1 HP Multistage Submersible Pump SP 50-14 Specifications
This product features a 1 HP (0.75 kW) motor designed for continuous duty, suitable for demanding applications. It can operate at a head height of 92 meters and handle a maximum flow rate of 50 liters per minute. The pump is capable of functioning at a maximum immersion depth of 150 meters, making it ideal for deep water extraction or drainage tasks. Supporting both single-phase (230V) and three-phase (400V) power supplies, this Speroni pump’s working frequency stands at 50Hz using a motor with 2 poles. The insulation class is F, which provides good thermal performance. The SP 50-14 Speroni submersible pump’s IP68 protection degree has made it highly resistant to dust and water ingress. The motor shaft is made of stainless steel AISI 304, providing durability and corrosion resistance. The mechanical seal is composed of ceramic and graphite, offering reliable sealing performance. The impellers are made from Noryl, a durable plastic material, and the pump’s 14-stage design contributes to increased flow rates and pressure. This pump can handle up to 35°C liquid temperature, and process water with sand content up to 50 g/m3, suitable for various water conditions.
| Specification | Value |
| Power (HP) | 1 |
| Power (kW) | 0.75 |
| Head (m) | 92 |
| Max. flow rate (l/min) | 50 |
| Max. immersion depth (m) | 150 |
| Voltage (V) | 230 (single-phase), 400 (three-phase) |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |
| Number of stages | 14 |

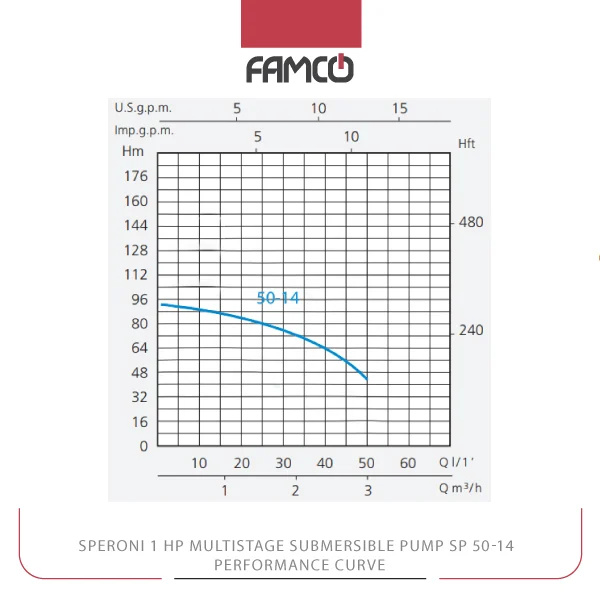

Speroni 1 HP Multistage Submersible Pump SP 50-14 Performance Data
| M3/h | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 |
| l/min | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| Head (m) | 92 | 86 | 83 | 79 | 74 | 67 | 60 | 52 | 42 |

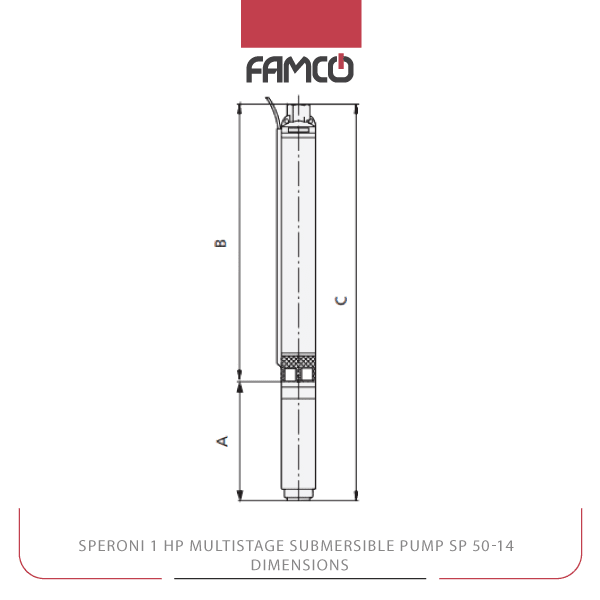

Speroni 1 HP Multistage Submersible Pump SP 50-14 Dimensions
| Dimensions (mm) | A | 380 |
| B | 394 | |
| C | 774 |
Speroni 1 HP Multistage Submersible Pump SP 50-14 Applications
- Deep well water extraction
- Irrigation systems
- Drainage and flood control
- Industrial water transfer
Speroni 1 HP Multistage Submersible Pump SP 50-14 Benefits
- High durability with stainless steel shaft and ceramic seals
- Suitable for deep immersion up to 150 meters
- Supports both single-phase and three-phase power supply
- Reliable performance with 14-stage design
Speroni 1 HP Multistage Submersible Pump SP 50-14 Price List
| No. | Name | Price |
| 1 | Speroni 1 HP Multistage Submersible Pump SP 50-14 Price | Contact us |
