Speroni 1 HP Multistage Submersible Pump SP 100-09 Specifications
This robust submersible pump offers a power of 1 HP (0.75 kW) and features a head height of 59 meters, making it suitable for various water transfer tasks. It can handle a maximum flow rate of 100 liters per minute and is designed to operate at a maximum immersion depth of 150 meters. This Speroni pump supports both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50 Hz and two poles for efficient operation. Its insulation class is F, ensuring safety and durability, while the IP68 protection degree guarantees complete water and dust resistance. The motor is built for continuous duty, ideal for long-term use. The shaft is made of stainless steel AISI 304, providing corrosion resistance. The mechanical seal combines ceramic and graphite materials for reliable sealing, and the impellers are crafted from Noryl, a durable plastic suitable for demanding environments. The SP Speroni submersible pump series handles liquids up to 35°C and can handle sand content up to 50 m³/h.
| Specification | Value |
| Power (HP) | 1 |
| Power (kW) | 0.75 |
| Head (m) | 59 |
| Max. flow rate (l/min) | 100 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

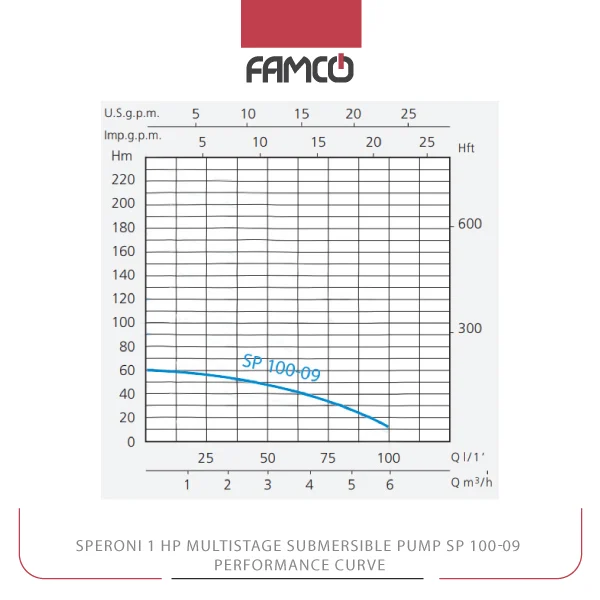

Speroni 1 HP Multistage Submersible Pump SP 100-09 Performance Data
| M3/h | 0 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
| l/min | 0 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Head (m) | 59 | 55 | 54 | 52 | 51 | 47 | 43 | 37 | 28 | 20 | 10 |

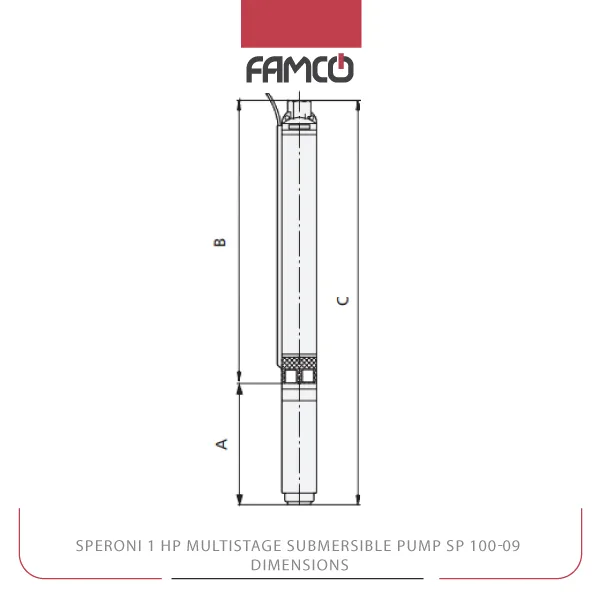

Speroni 1 HP Multistage Submersible Pump SP 100-09 Dimensions
| Dimensions (mm) | A | 380 |
| B | 344 | |
| C | 724 |
Speroni 1 HP Multistage Submersible Pump SP 100-09 Applications
- Water transfer in industrial settings
- Irrigation and agricultural watering
- Drainage of flooded areas
- Municipal water management
Speroni 1 HP Multistage Submersible Pump SP 100-09 Benefits
- High durability with stainless steel shaft and ceramic seal
- Flexible power options for different setups
- Deep immersion capability up to 150 meters
- Reliable performance with continuous duty motor
Speroni 1 HP Multistage Submersible Pump SP 100-09 Price List
| No. | Name | Price |
| 1 | Speroni 1 HP Multistage Submersible Pump SP 100-09 Price | Contact us |
