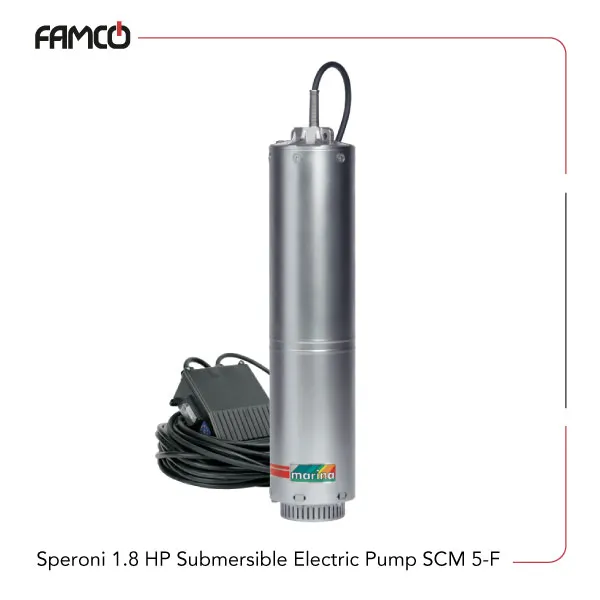

Speroni 1.8 HP Submersible Electric Pump SCM 5-F Specifications
Speroni submersible electric pump SCM 5-F delivers a power output of 1.4 kW (1.8 HP), providing reliable performance for a range of demanding applications. It operates on a single-phase 230 V, 50 Hz power supply and draws 6.5 A under normal conditions. With a maximum flow capacity of 5.7 m³/h (95 L/min), the unit ensures efficient fluid transfer across various operational scenarios. The pump achieves a maximum head of 58 meters, enabling high-pressure delivery and suitability for deep-well or long-distance pumping requirements. This Speroni submersible pump is equipped with a 1¼-inch (DNM) discharge connection, ensuring compatibility with standard pipeline configurations. Weighing 18.4 kg, the device is designed for straightforward installation and handling. It supports liquid temperatures up to 35°C and may be fully submerged to depths of up to 20 meters, making it appropriate for applications requiring deep or continuous immersion. Built for durability, the pump accommodates sand concentrations up to 40 g/m³, improving reliability in environments with suspended particulates. It carries an insulation class F for enhanced thermal protection and features an IP68 protection rating, ensuring complete resistance to dust and continuous water immersion.
| Specification | Value |
| Power (kW) | 1.4 |
| Power (HP) | 1.8 |
| Current (A) | 6.5 |
| Maximum Flow rate (m3/h) | 5.7 |
| Maximum Flow rate (l/min) | 95 |
| Maximum Head (m) | 58 |
| DNM | 1 1/4 inch |
| Weight (kg) | 18.4 |
| Liquid temperature | up to 35°C |
| Submersion depth | 20 mt |
| Sand content | 40 g/m3 |
| Phase | Single-phase |
| Voltage | 230V |
| Frequency | 50Hz |
| Insulation Class | F |
| Protection Degree | IP 68 |
Speroni 1.8 HP Submersible Electric Pump SCM 5-F Performance Data
| Q (m3/h) | 0.3 | 0.6 | 0.9 | 1.2 | 1.8 | 2.7 | 3.6 | 4.2 | 5.1 | 5.7 |
| Q (l/min) | 5 | 10 | 15 | 20 | 30 | 45 | 60 | 70 | 85 | 95 |
| H (m) | 58 | 57 | 56 | 55 | 52 | 45 | 38 | 35 | 23 | 16 |
Speroni 1.8 HP Submersible Electric Pump SCM 5-F Applications
- Water drainage and removal
- Irrigation systems
- Industrial fluid transfer
- Deep underwater pumping
Speroni 1.8 HP Submersible Electric Pump SCM 5-F Benefits
- High efficiency with a maximum flow rate of 5.7 m3/h
- Durable IP 68 protection for outdoor and submerged use
- Can operate at depths up to 20 meters
- Resistant to sand and dirt contamination
Speroni 1.8 HP Submersible Electric Pump SCM 5-F Price List
| No. | Name | Price |
| 1 | Speroni 1.8 HP Submersible Electric Pump SCM 5-F Price | Contact us |
