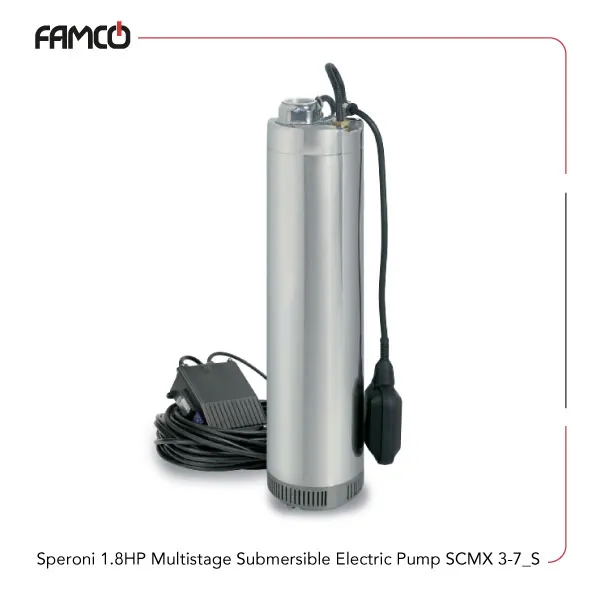

Speroni 1.8 HP Multistage Submersible Electric Pump SCMX 3-7/S Specifications
Speroni multistage submersible electric pump SCMX 3-7/S delivers 1.4 kW (1.8 HP) of power and operates on a single-phase 230V power supply, drawing 6.5A. It can move up to 4.5 cubic meters per hour, or 75 liters per minute, making it ideal for efficient water transfer. The pump can generate a maximum head of 79 meters, providing strong vertical lift for demanding applications. The connection size is 1¼ inches (DN), compatible with standard piping systems. Weighing approximately 21.8 kg, it is lightweight and easy to install or reposition. The pump is designed to handle liquids up to 35°C and can be submerged up to 15 meters, making it suitable for deep wells, sumps, or other water management applications. This Speroni submersible pump can tolerate sand content up to 40 grams per cubic meter, making it effective in environments with some particulate matter. With insulation class F for thermal protection and an IP68 rating for full dust and water protection, this pump is built to perform reliably in outdoor or challenging conditions.
| Specification | Value |
| Power (kW) | 1.4 |
| Power (HP) | 1.8 |
| Current (A) | 6.5 |
| Maximum Flow rate (m3/h) | 4.5 |
| Maximum Flow rate (l/min) | 75 |
| Maximum Head (m) | 79 |
| DNM | 1″ 1/4 |
| Weight (kg) | 21.8 |
| Liquid temperature | up to 35°C |
| Submersion depth | 15 mt |
| Sand content | 40 g/m3 |
| Phase | Single-phase |
| Insulation Class | F |
| Protection Degree | IP 68 |
| Voltage (V) | 230 |

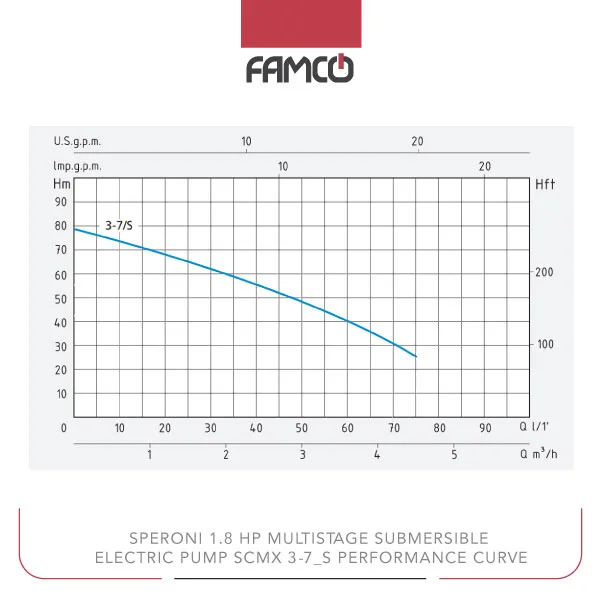

Speroni 1.8 HP Multistage Submersible Electric Pump SCMX 3-7/S Performance Data
| Q (m3/h) | 0 | 0.6 | 1.5 | 2.4 | 3.6 | 4.5 |
| Q (l/min) | 0 | 10 | 25 | 40 | 60 | 75 |
| H (m) | 79 | 73 | 68 | 55 | 40 | 25 |
Speroni 1.8 HP Multistage Submersible Electric Pump SCMX 3-7/S Applications
- Drainage of flooded areas
- Water transfer in irrigation systems
- Industrial liquid handling
- Construction site dewatering
Speroni 1.8 HP Multistage Submersible Electric Pump SCMX 3-7/S Benefits
- High efficiency with a maximum flow rate of 4.5 m3/h
- Durable and weather-resistant with IP 68 protection
- Easy to install and maintain due to lightweight design
- Suitable for various liquids up to 35°C and submersion up to 15 meters
Speroni 1.8 HP Multistage Submersible Electric Pump SCMX 3-7/S Price List
| No. | Name | Price |
| 1 | Speroni 1.8 HP Multistage Submersible Electric Pump SCMX 3-7/S Price | Contact us |
There are no reviews yet.
