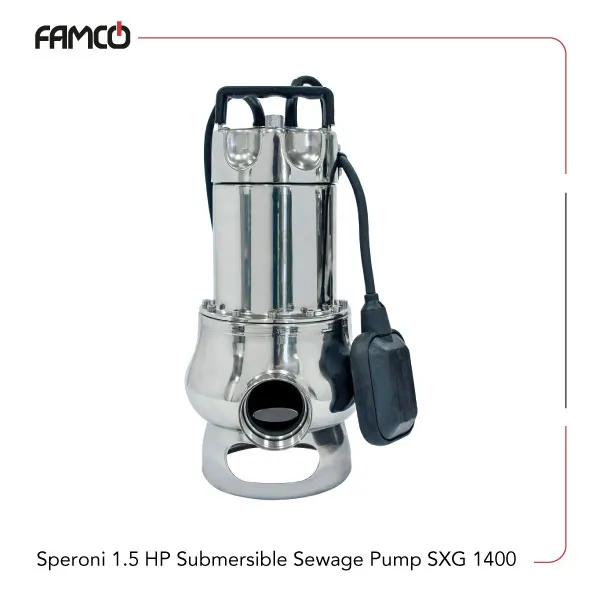

Speroni 1.5 HP Submersible Sewage Pump SXG 1400 Specifications
This pump features a 1.5 HP (1.1 kW) motor designed for single-phase power supply, making it suitable for various home and industrial applications. It operates efficiently with a current of 6.5 A and can handle a maximum flow rate of 24 cubic meters per hour or 400 liters per minute. The maximum head height is 10.5 meters, allowing it to lift liquids effectively in different setups. It is capable of pumping liquids at temperatures up to 35°C, which is ideal for domestic water systems. This Speroni sewage pump can be immersed up to 5 meters deep, making it versatile for well or tank installations. The inlet grain size is Ø 35 mm, and it requires a minimum suction level of 65 mm for proper operation. The device is built with a stainless steel AISI 304 casing, impeller, and other components, ensuring durability and resistance to corrosion. It features an insulation class F and an IP 68 protection degree, making it suitable for outdoor and harsh environments. The mechanical seal is made of ceramic, graphite, and NBR, providing reliable sealing and long service life. Overall, this pump combines robust construction with high performance, making it suitable for various water transfer tasks, including irrigation, drainage, and domestic water supply.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Number of phases | Single-phase |
| Ampere | 6.5 A |
| Maximum Flow rate (m3/h) | 24 |
| Maximum Flow rate (l/min) | 400 |
| Maximum head (m) | 10.5 |
| Liquid temperature | up to 35°C |
| Temperature max. liquid | 35°C |
| Maximum immersion depth | 5 m |
| Grain size inlet | Ø 35 mm |
| Min. suction level | 65 mm |
| Insulation Class | F |
| Protection degree | IP 68 |
| Motor casing | Stainless Steel AISI 304 |
| External pump body | Stainless Steel AISI 304 |
| Impeller | Stainless Steel AISI 304 |
| Suction grid | Stainless Steel AISI 304 |
| Shaft with rotor | Stainless Steel AISI 304 |
| Mechanical seal | Ceramic/Graphite/NBR |

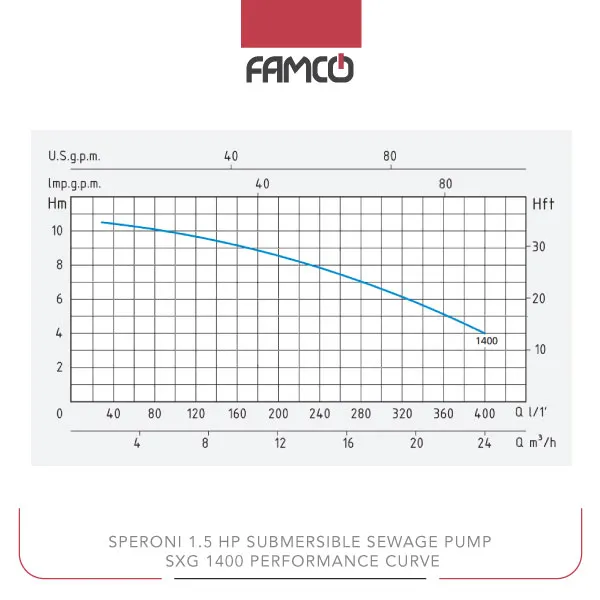

Speroni 1.5 HP Submersible Sewage Pump SXG 1400 Performance Data
| Q (m3/h) | 1.8 | 3.6 | 5.4 | 7.2 | 9 | 12 | 15 | 18 | 21 | 24 |
| Q (l/min) | 30 | 60 | 90 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Head (m) | 10.5 | 10.2 | 10 | 9.2 | 8.8 | 8.5 | 7.8 | 6.2 | 5 | 4 |
Speroni 1.5 HP Submersible Sewage Pump SXG 1400 Applications
- Irrigation systems for farms and gardens
- Domestic water supply and transfer
- Drainage and flood control
- Water transfer in industrial processes
Speroni 1.5 HP Submersible Sewage Pump SXG 1400 Benefits
- High durability with stainless steel construction
- Powerful performance with 24 m3/h flow rate
- Suitable for outdoor and harsh environments
- Easy to install with versatile immersion capabilities
Speroni 1.5 HP Submersible Sewage Pump SXG 1400 Price List
| No. | Name | Price |
| 1 | Speroni 1.5 HP Submersible Sewage Pump SXG 1400 Price | Contact us |
