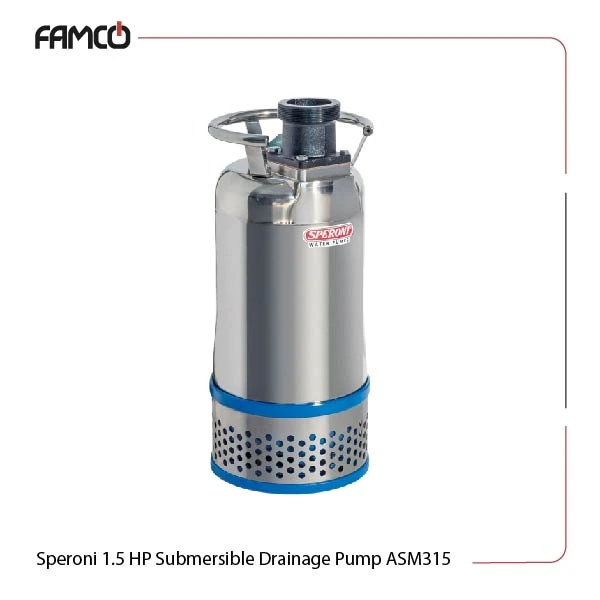

Speroni 1.5 HP Submersible Drainage Pump ASM315 Specifications
The product’s high-performance capabilities efficiently move liquids at impressive flow rates. The pump’s construction materials ensure longevity and reliability for both home and industrial use. As a submersible pump, it handles different liquid temperatures and depths. The minimum suction level is 85 mm, which is expeted from a draiange pump of this kind. It supports single-phase systems with 230V-50Hz voltage. The pump is built with an insulation class of F and has an IP 68 protection rating, so it functions safely in time. The body is made from spheroidal cast iron, while the impeller is crafted from high chrome alloy (HCR). The shaft is made of stainless steel AISI 304, and it features a double mechanical seal in the oil chamber, composed of ceramic, graphite, NBR, silicon, and NBR.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. flow rate (m3/h) | 18 |
| Head | 8.3-16 |
| Home use liquid temperature | up to 35°C |
| Max. liquid temperature (other uses) | 50°C |
| Home use maximum immersion depth | 10 m |
| Maximum immersion depth (with the right cable length) | 20 mt |
| Min. suction level | 85 mm |
| Single-phase voltage | 230V-50Hz |
| Insulation Class | F |
| Protection | IP 68 |
Speroni 1.5 HP Submersible Drainage Pump ASM315 Materials
- Pump body: Spheroidal cast iron
- Impeller: High chrome alloy (HCR)
- Shaft: Stainless steel AISI 304
- Double mechanical seal in oil chamber: Ceramic/Graphite/NBR, Silicon/Silicon/NBR
Speroni 1.5 HP Submersible Drainage Pump ASM315 Technical Data
| m3/h | 6 | 12 | 18 |
| lt/1’ | 100 | 200 | 300 |
| H (m) | 16 | 13.5 | 8.3 |

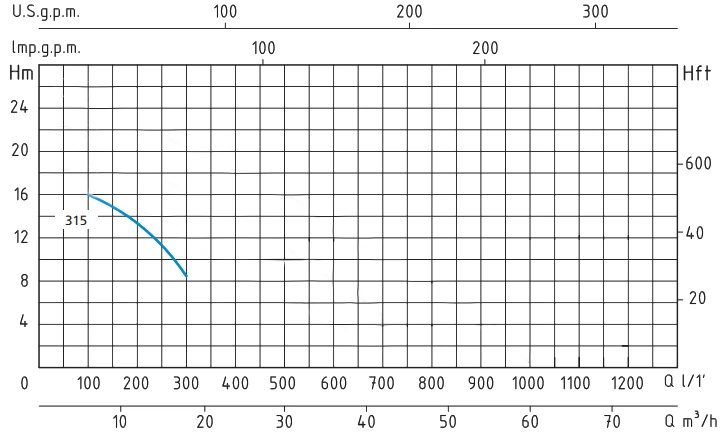

Speroni 1.5 HP Submersible Drainage Pump ASM315 Performance Curve
Speroni 1.5 HP Submersible Drainage Pump ASM315 Applications
- Residential water supply systems
- Irrigation and agricultural applications
- Drainage and sewage systems
- Industrial liquid transfer and circulation
Speroni 1.5 HP Submersible Drainage Pump ASM315 Benefits
- High efficiency with a maximum flow rate of 18 m3/h
- Durable construction with spheroidal cast iron and stainless steel
- Versatile temperature handling for various applications
- Safety features with IP 68 protection and double mechanical seals
Speroni 1.5 HP Submersible Drainage Pump ASM315 Price List
| No. | Name | Price |
| 1 | Speroni 1.5 HP Submersible Drainage Pump ASM315 Price | Contact us |
