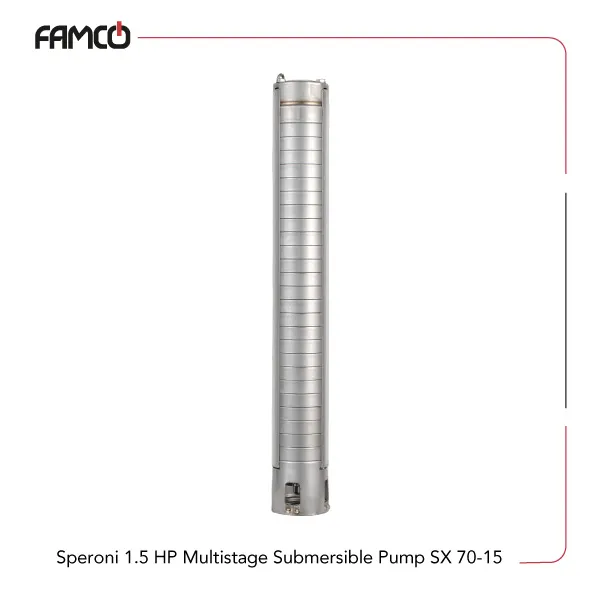

Speroni 1.5 HP Multistage Submersible Pump SX 70-15 Specifications
This product features a powerful 1.5 HP (1.1 kW) motor designed for efficient water pumping. It can handle a maximum flow rate of 70 liters per minute and delivers a maximum head of 97 meters, making it suitable for various water transfer tasks. The pump presented here is from the Speroni SX series, consisting of 15 stages, that help it in achieving high pressure and performance. It can operate at a maximum immersion depth of 150 meters, allowing this Speroni pump for submerged conditions to be used in deep wells or reservoirs. The pump SX 70-15 is built with durable stainless steel AISI 304 for the external casing, motor shaft, and impellers, ensuring corrosion resistance and longevity. It can handle liquids with a temperature up to 35°C and sand content up to 50 g/m³, making it versatile for different water qualities. The pump weighs only 4.2 kg, making it relatively lightweight and easy to install or transport. Overall, this pump is ideal for deep well applications, water supply systems, and irrigation projects, combining strength, durability, and efficiency in a compact design.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Max. flow rate (l/min) | 70 |
| Max. delivery head (m) | 97 |
| Number of stages | 15 |
| Max. immersion depth (m) | 150 |
| Max. liquid temperature (°C) | 35 |
| Sand content (g/m³) | 50 |
| External casing | stainless steel AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Stages and impellers | stainless steel AISI 304 |
| Weight (kg) | 4.2 |

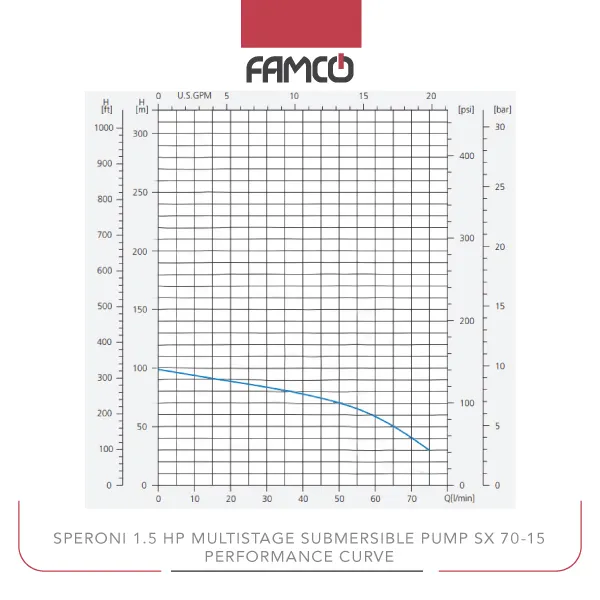

Speroni 1.5 HP Multistage Submersible Pump SX 70-15 Performance Data
| m³/h | 0 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| head (m) | 97 | 85 | 83 | 80 | 77 | 74 | 69 | 57 | 40 |
Speroni 1.5 HP Multistage Submersible Pump SX 70-15 Applications
- Deep well water extraction
- Irrigation systems
- Municipal water supply
- Industrial water transfer
Speroni 1.5 HP Multistage Submersible Pump SX 70-15 Benefits
- High efficiency with 15 stages for strong water pressure
- Corrosion-resistant stainless steel construction
- Lightweight and easy to install
- Suitable for deep water sources up to 150 meters
Speroni 1.5 HP Multistage Submersible Pump SX 70-15 Price List
| No. | Name | Price |
| 1 | Speroni 1.5 HP Multistage Submersible Pump SX 70-15 Price | Contact us |
