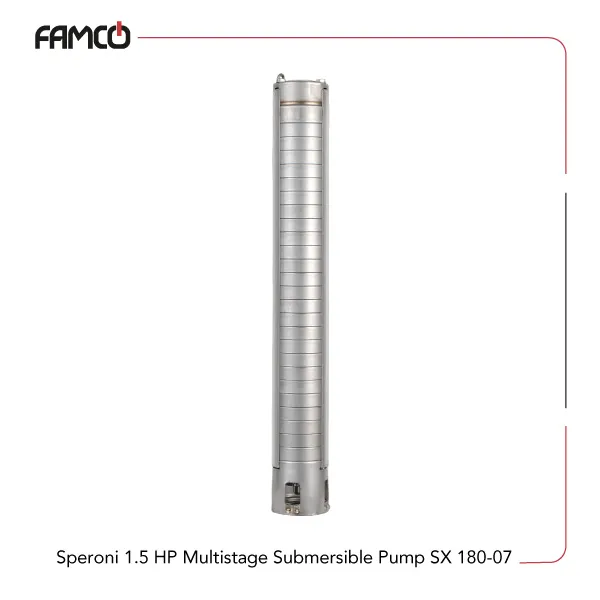

Speroni 1.5 HP Multistage Submersible Pump SX 180-07 Specifications
This product features a powerful 1.5 HP (1.1 kW) motor, designed for efficient water pumping. It can handle a maximum flow rate of 180 liters per minute and delivers a maximum head of 41 meters. The pump consists of 7 stages, which help in achieving high pressure and performance. It is suitable for deep immersion up to 150 meters, making it ideal for well or borehole applications. The Speroni submersible pump series includes the SX 180-07 sewage and wastewater solution that can operate with liquids up to 35°C and can tolerate sand content up to 50 g/m³. Constructed with high-quality stainless steel AISI 304 for external casing, motor shaft, and impellers, this pump offers excellent corrosion resistance and longevity. Its lightweight design, weighing only 5.3 kg, makes installation and maintenance easier, while its robust build ensures reliable operation over time.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Max. flow rate (l/min) | 180 |
| Max. delivery head (m) | 41 |
| Number of stages | 7 |
| Max. immersion depth (m) | 150 |
| Max. liquid temperature (°C) | 35 |
| Sand content (g/m³) | 50 |
| External casing | stainless steel AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Stages and impellers | stainless steel AISI 304 |
| Weight (kg) | 5.3 |

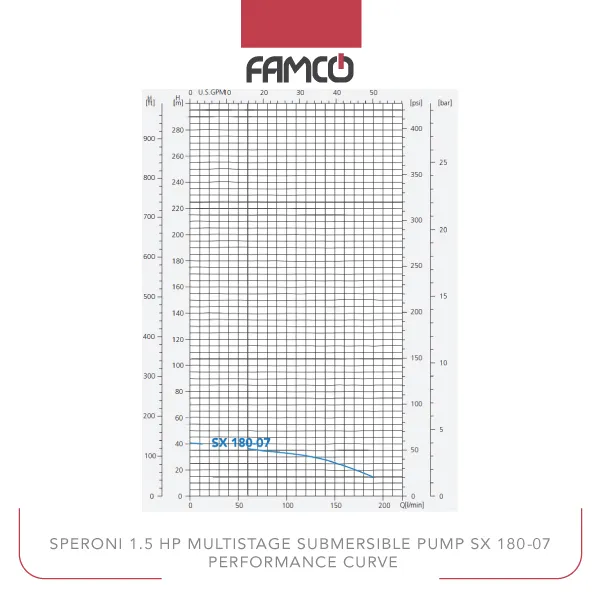

Speroni 1.5 HP Multistage Submersible Pump SX 180-07 Performance Data
| m³/h | 0 | 2.4 | 2.7 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 |
| head (m) | 41 | 39 | 38 | 38 | 37 | 36 | 35 | 34 | 33 | 32 | 28 | 24 | 18 |
Speroni 1.5 HP Multistage Submersible Pump SX 180-07 Applications
- Deep well water extraction
- Borehole water supply
- Irrigation systems
- Industrial water transfer
Speroni 1.5 HP Multistage Submersible Pump SX 180-07 Benefits
- High efficiency with 7-stage design
- Corrosion-resistant stainless steel build
- Suitable for deep immersion up to 150 meters
- Handles sand content up to 50 g/m³
Speroni 1.5 HP Multistage Submersible Pump SX 180-07 Price List
| No. | Name | Price |
| 1 | Speroni 1.5 HP Multistage Submersible Pump SX 180-07 Price | Contact us |
