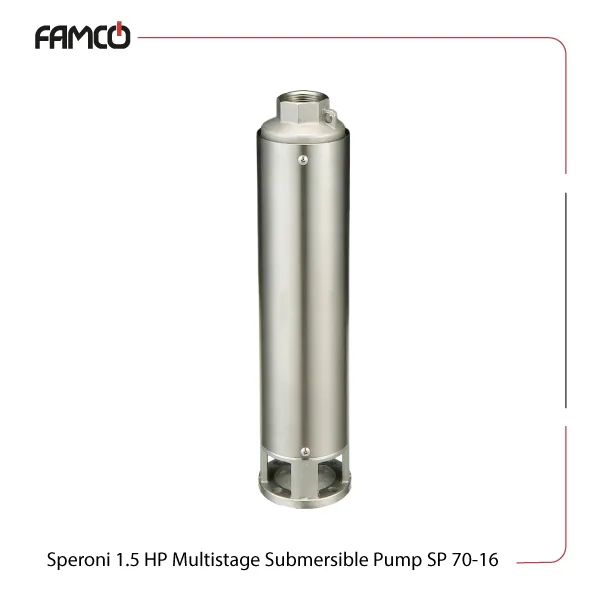

Speroni 1.5 HP Multistage Submersible Pump SP 70-16 Specifications
This product features a 1.5 HP (1.1 kW) motor designed for continuous duty, capable of delivering a head of 106 meters and a maximum flow rate of 70 liters per minute. It supports both single-phase (230V) and three-phase (400V) power supplies, operating at a frequency of 50 Hz with two poles. The motor is built with an insulation class F for safety and durability, and it has an IP68 protection degree, making it highly resistant to water and dust. Speroni submersible pumps use a shaft made of stainless steel AISI 304 to amplify strength and corrosion resistance. The multistage Speroni pump’s mechanical seal is composed of ceramic and graphite materials, providing reliable sealing performance. The impellers are made from Noryl, a durable plastic material suitable for demanding environments. This Speroni-manufactured pump can operate in liquid temperatures up to 35°C and can handle sand content up to 50 g/m3, making it suitable for various applications involving water transfer and drainage at significant depths.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Head (m) | 106 |
| Max. flow rate (l/min) | 70 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

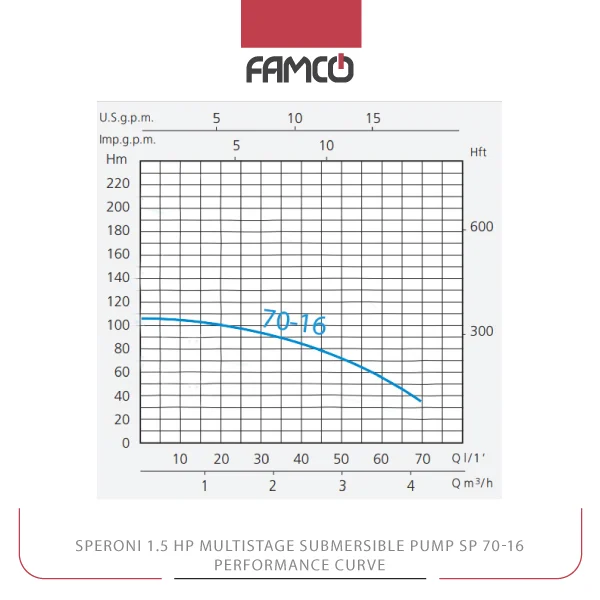

Speroni 1.5 HP Multistage Submersible Pump SP 70-16 Performance Data
| M3/h | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| Head (m) | 106 | 105 | 101 | 98 | 95 | 89 | 83 | 77 | 70 | 54 | 33 |

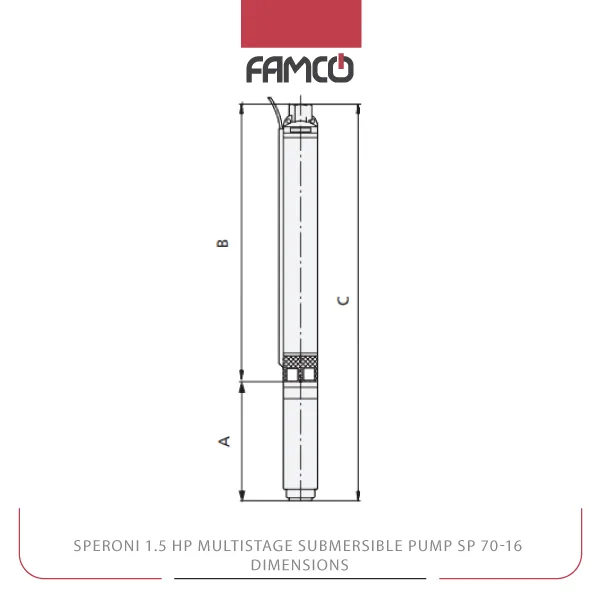

Speroni 1.5 HP Multistage Submersible Pump SP 70-16 Dimensions
| Dimensions (mm) | A | 405 |
| B | 430 | |
| C | 835 |
Speroni 1.5 HP Multistage Submersible Pump SP 70-16 Applications
- Deep well water extraction
- Industrial drainage systems
- Agricultural irrigation
- Construction site dewatering
Speroni 1.5 HP Multistage Submersible Pump SP 70-16 Benefits
- High durability with stainless steel shaft and ceramic seals
- Flexible power options for various setups
- Suitable for deep immersion up to 150 meters
- Resistant to dust and water with IP68 protection
Speroni 1.5 HP Multistage Submersible Pump SP 70-16 Price List
| No. | Name | Price |
| 1 | Speroni 1.5 HP Multistage Submersible Pump SP 70-16 Price | Contact us |
