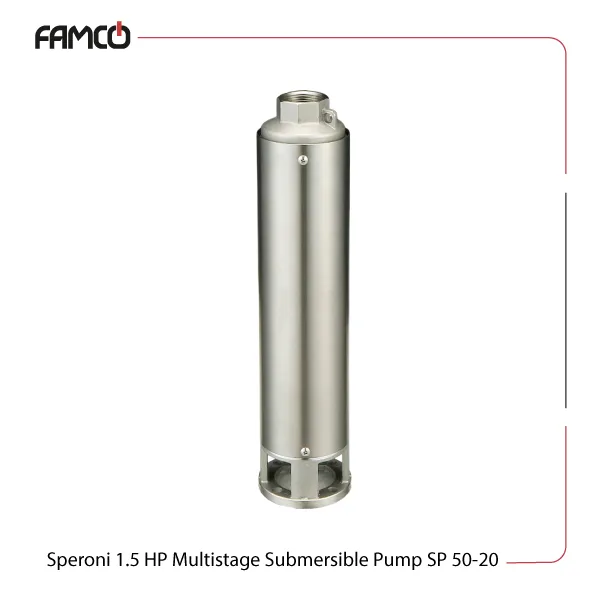

Speroni 1.5 HP Multistage Submersible Pump SP 50-20 Specifications
This pump offers a power of 1.5 HP (1.1 kW), making it suitable for various demanding applications. It features a head of 60 meters, allowing it to lift liquids efficiently over long distances or heights. The maximum flow rate is 50 liters per minute, which is ideal for tasks requiring steady and reliable water movement. It can operate at a maximum immersion depth of 150 meters, making it suitable for deep well or pond applications. The pump supports both single-phase voltage of 230V and three-phase voltage of 400V, with a frequency of 50Hz, and has two poles for efficient operation. The 50-20 Speroni pump’s insulation class of F helps it last under continuous use. The device is protected by an IP68 rating, meaning it is fully dust-tight and can withstand prolonged submersion in water. Its strong construction and high protection level ensure durability and safety during continuous operation. The Speroni submersible pump’s motor shaft is made of stainless steel AISI 304, providing corrosion resistance, while the mechanical seal is composed of ceramic and graphite, which gives it the strength to keep it sealed. The impellers are made of Noryl, a durable plastic material that offers resistance to chemicals and wear. The pump is designed for continuous duty, making it suitable for long-term applications in water supply, irrigation, or industrial processes.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Head (m) | 60 |
| Max. flow rate (l/min) | 50 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel aisi 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

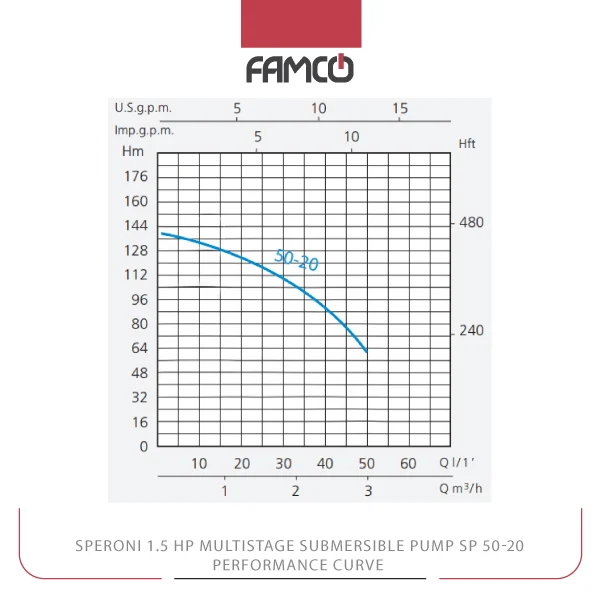

Speroni 1.5 HP Multistage Submersible Pump SP 50-20 Performance Data
| M3/h | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 |
| l/min | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| Head (m) | 139 | 131 | 127 | 120 | 111 | 101 | 90 | 75 | 60 |

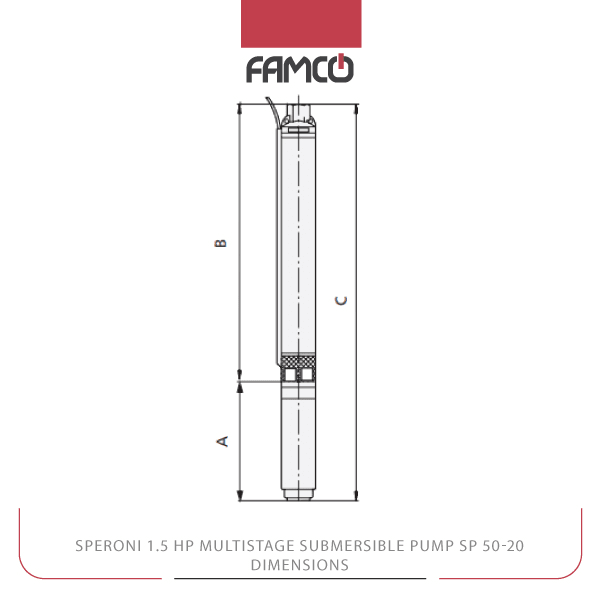

Speroni 1.5 HP Multistage Submersible Pump SP 50-20 Dimensions
| Dimensions (mm) | A | 405 |
| B | 499 | |
| C | 904 |
Speroni 1.5 HP Multistage Submersible Pump SP 50-20 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Flood control and drainage
Speroni 1.5 HP Multistage Submersible Pump SP 50-20 Benefits
- High durability with stainless steel shaft and IP68 protection
- Suitable for deep immersion up to 150 meters
- Efficient operation with 60-meter head and 50 l/min flow rate
- Supports both single-phase and three-phase power supply
Speroni 1.5 HP Multistage Submersible Pump SP 50-20 Price List
| No. | Name | Price |
| 1 | Speroni 1.5 HP Multistage Submersible Pump SP 50-20 Price | Contact us |
