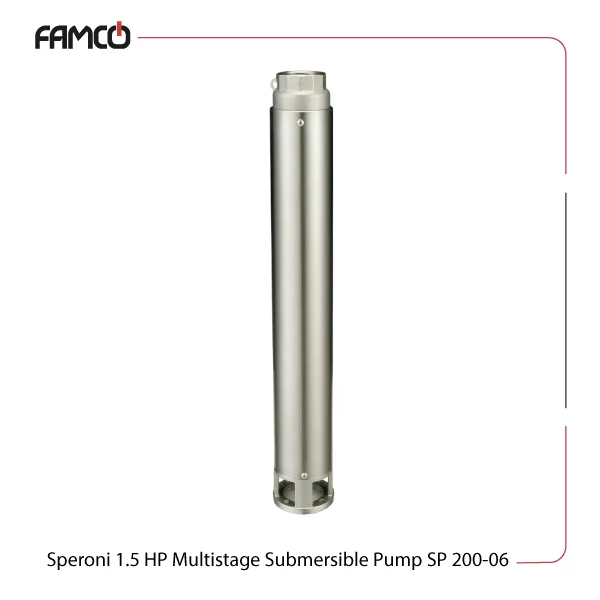

Speroni 1.5 HP Multistage Submersible Pump SP 200-06 Specifications
This product features a 1.5 HP (1.1 kW) motor designed for continuous duty, making it suitable for long-term operation. It provides a maximum head of 39 meters and can handle a flow rate of up to 200 liters per minute. The device is capable of operating at immersion depths up to 150 meters, making it ideal for deep water applications. It supports both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50 Hz and two poles for efficient performance. The pump’s motor F insulation class helps ensure greater safety ratings, while the IP68 protection degree means this Speroni submersible pump is fully protected against dust and water ingress. The motor shaft is made of stainless steel AISI 304, providing corrosion resistance. The mechanical seal is composed of ceramic and graphite, offering reliable sealing performance. The impellers are made from Noryl, a durable plastic material that withstands wear and chemical exposure, useful in Speroni pumps. The liquid temperature it can handle is up to 35°C, and it can tolerate sand content up to 50 grams per cubic meter, making it versatile for different water qualities.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Head (m) | 39 |
| Max. flow rate (l/min) | 200 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel aisi 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

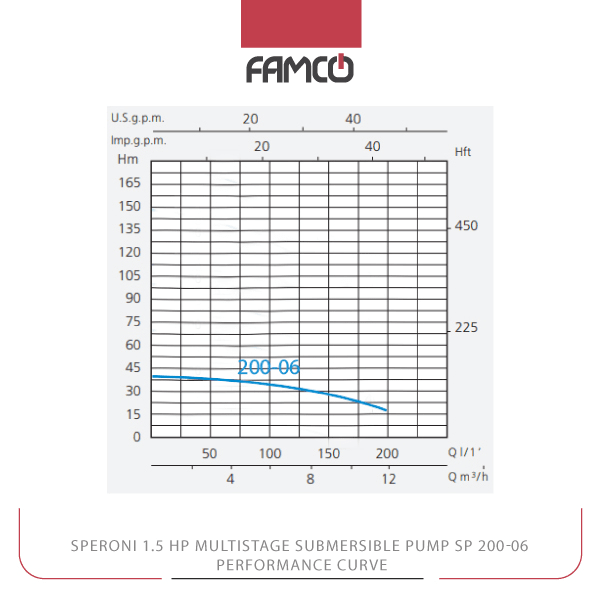

Speroni 1.5 HP Multistage Submersible Pump SP 200-06 Performance Data
| M3/h | 0 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | 9.6 | 10.8 | 12 |
| l/min | 0 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 |
| Head (m) | 39 | 38 | 37 | 36 | 35 | 34 | 32 | 29 | 26 | 22 | 17 |

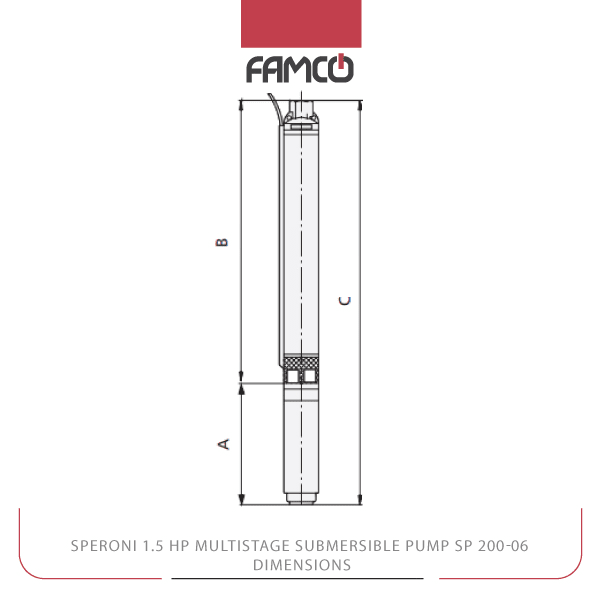

Speroni 1.5 HP Multistage Submersible Pump SP 200-06 Dimensions
| Dimensions (mm) | A | 405 |
| B | 356 | |
| C | 761 |
Speroni 1.5 HP Multistage Submersible Pump SP 200-06 Applications
- Deep well water extraction
- Irrigation systems for agriculture
- Drainage of flooded areas
- Water transfer in industrial processes
Speroni 1.5 HP Multistage Submersible Pump SP 200-06 Benefits
- High efficiency with 1.5 HP power
- Durable construction with stainless steel shaft
- Suitable for deep immersion up to 150 meters
- Resistant to dust, water, and chemical exposure
Speroni 1.5 HP Multistage Submersible Pump SP 200-06 Price List
| No. | Name | Price |
| 1 | Speroni 1.5 HP Multistage Submersible Pump SP 200-06 Price | Contact us |
