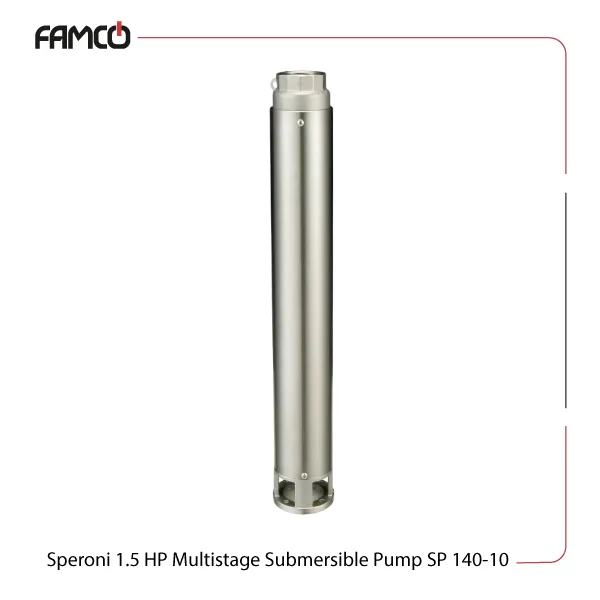

Speroni 1.5 HP Multistage Submersible Pump SP 140-10 Specifications
This Speroni product features a powerful 1.5 HP (1.1 kW) motor designed for continuous duty, suitable for demanding applications. It provides a maximum head of 62 meters and a flow rate of up to 140 liters per minute, making it ideal for water transfer and pumping tasks. The pump can operate at a maximum immersion depth of 150 meters, supporting various installation needs. Compatible with both single-phase 230V and three-phase 400V power supplies, this Speroni submersible pump runs on a 50 Hz frequency using two poles for efficient operation. The motor’s insulation class is F, ensuring durability and safety during prolonged use. Its protection degree is IP68, meaning it is fully protected against dust and water ingress, suitable for submerged environments. The motor shaft is made of stainless steel AISI 304, offering corrosion resistance. The mechanical seal embedded inside this Speroni pump consists of ceramic and graphite materials, providing a reliable seal against leaks. The impellers are made from Noryl, a durable plastic material, to reach efficient fluid movement. The pump is designed to handle liquids with a maximum sand content of 50 g/m3 and can operate with liquids at temperatures up to 35°C, making it versatile for various water types and conditions.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Head (m) | 62 |
| Max. flow rate (l/min) | 140 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

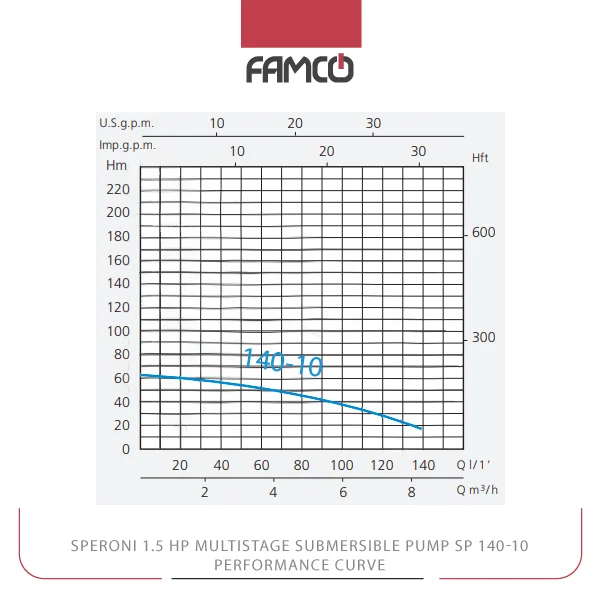

Speroni 1.5 HP Multistage Submersible Pump SP 140-10 Performance Data
| M3/h | 0 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 |
| l/min | 0 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 |
| Head (m) | 62 | 53 | 51 | 48 | 45 | 41 | 38 | 29 | 18 |

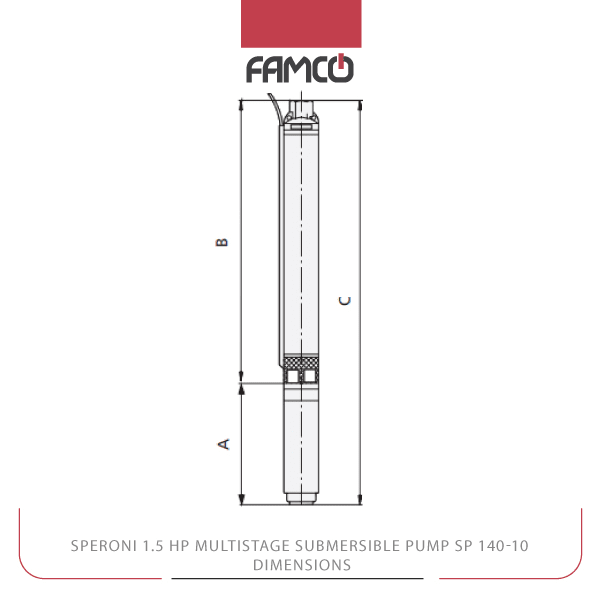

Speroni 1.5 HP Multistage Submersible Pump SP 140-10 Dimensions
| Dimensions (mm) | A | 405 |
| B | 483 | |
| C | 888 |
Speroni 1.5 HP Multistage Submersible Pump SP 140-10 Applications
- Deep well water extraction
- Irrigation systems
- Water supply for residential or industrial use
- Drainage and flood control
Speroni 1.5 HP Multistage Submersible Pump SP 140-10 Benefits
- High efficiency with a powerful motor and high flow rate
- Durable construction with corrosion-resistant materials
- Suitable for submerged operation at great depths
- Can handle liquids with sand content up to 50 g/m3
