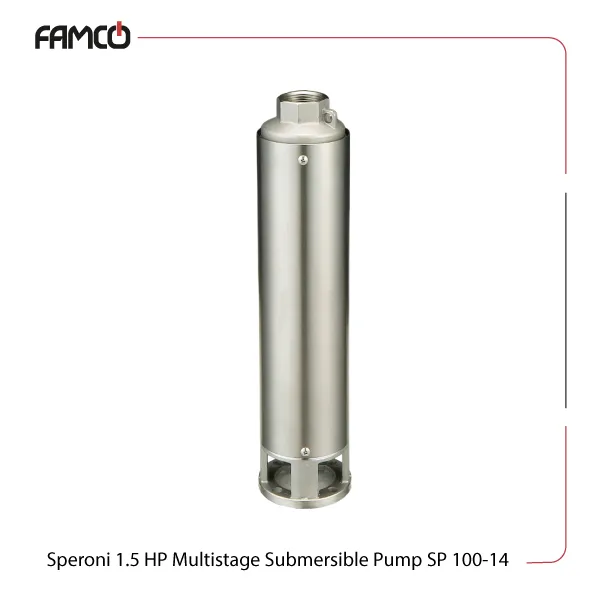

Speroni 1.5 HP Multistage Submersible Pump SP 100-14 Specifications
This pump offers a powerful 1.5 HP (1.1 kW) motor designed for continuous duty. It can generate a head of 93 meters and handle a maximum flow rate of 100 liters per minute. The Speroni submersible pump is capable of operating at a maximum immersion depth of 150 meters. It supports both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50 Hz and two poles for efficient operation. The pump’s insulation class is F. Its protection degree is IP68, meaning it is fully protected against dust and water ingress, suitable for submerged environments. The motor shaft placed inside this Speroni pump is made of stainless steel AISI 304, providing corrosion resistance, while the mechanical seal is composed of ceramic and graphite. The impellers are made from Noryl, a durable plastic material that offers excellent chemical resistance and performance. The pump is designed to operate efficiently with liquids up to 35°C and can handle sand content up to 50 g/m³.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Head (m) | 93 |
| Max. flow rate (l/min) | 100 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel aisi 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

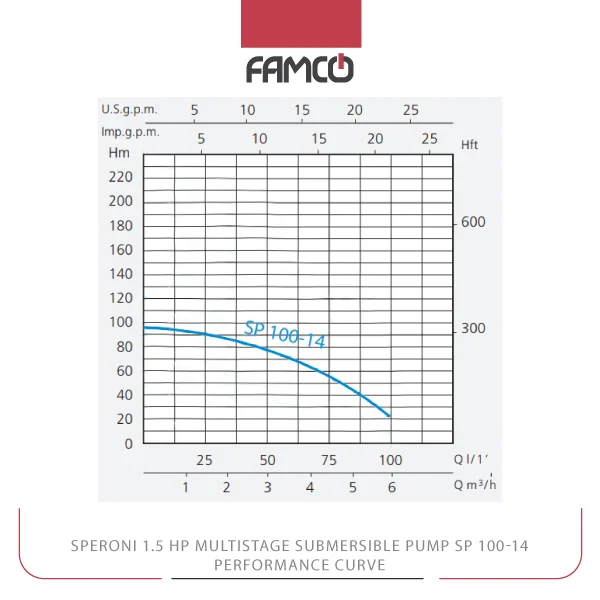

Speroni 1.5 HP Multistage Submersible Pump SP 100-14 Performance Data
| M3/h | 0 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
| l/min | 0 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Head (m) | 93 | 87 | 86 | 83 | 71 | 76 | 68 | 58 | 47 | 33 | 20 |

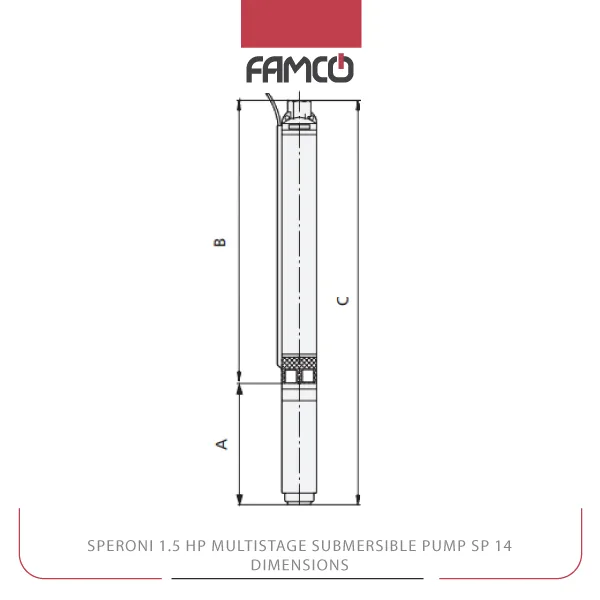

Speroni 1.5 HP Multistage Submersible Pump SP 100-14 Dimensions
| Dimensions (mm) | A | 405 |
| B | 452 | |
| C | 857 |
Speroni 1.5 HP Multistage Submersible Pump SP 100-14 Applications
- Deep well water extraction
- Industrial drainage systems
- Agricultural irrigation
- Municipal water transfer
Speroni 1.5 HP Multistage Submersible Pump SP 100-14 Benefits
- High durability with stainless steel shaft and ceramic seal
- Suitable for continuous operation
- Flexible power options for different setups
- Excellent protection against dust and water ingress
Speroni 1.5 HP Multistage Submersible Pump SP 100-14 Price List
| No. | Name | Price |
| 1 | Speroni 1.5 HP Multistage Submersible Pump SP 100-14 Price | Contact us |
