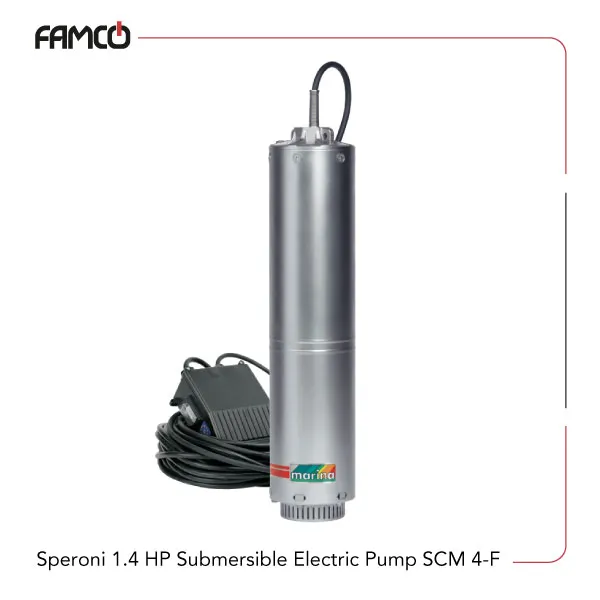

Speroni 1.4 HP Submersible Electric Pump SCM 4-F

1.1 kW (1.4 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Speroni Pumps, Speroni Submersible Pumps

Overview of Speroni 1.4 HP Submersible Electric Pump SCM 4-F

Speroni submersible electric pump SCM 4-F offers a power output of 1.1 kW, equal to 1.4 HP, giving it enough strength for steady day-to-day operation. It draws 5.2 A, making it suitable for settings where controlled energy use matters. With a maximum flow rate of 5.7 m³/h, or 95 l/min, it moves water at a pace that supports both practical tasks and more demanding needs without feeling overworked.

Speroni 1.4 HP Submersible Electric Pump SCM 4-F Specifications

Speroni 1.4 HP submersible electric pump SCM 4-F operates with a rated power of 1.1 kW (1.4 HP) and a current draw of 5.2 amperes, delivering efficient performance for deep-water extraction and transfer applications. It provides a maximum flow rate of 5.7 cubic meters per hour (95 liters per minute) and is capable of generating a maximum head of 47 meters, making it suitable for installations requiring significant vertical lift. Engineered for reliability, the pump can operate in liquids up to 35°C and supports submersion depths of up to 15 meters. It is designed to tolerate sand concentrations up to 40 grams per cubic meter, enhancing durability in sandy or abrasive environments. This Speroni submersible pump functions on a single-phase 230-volt, 50 Hz power supply and incorporates insulation class F for robust thermal protection. With an IP68 protection rating, the pump offers complete resistance to dust and continuous water immersion, ensuring long service life even under demanding conditions.

Specification	Value
Power (kW)	1.1
Power (HP)	1.4
Current (A)	5.2
Maximum Flow rate (m3/h)	5.7
Maximum Flow rate (l/min)	95
Maximum Head (m)	47
Liquid temperature	up to 35°C
Submersion depth	15 meters
Sand content	40 g/m3
Phase	Single-phase
Voltage	230V
Frequency	50Hz
Insulation Class	F
Protection Degree	IP 68

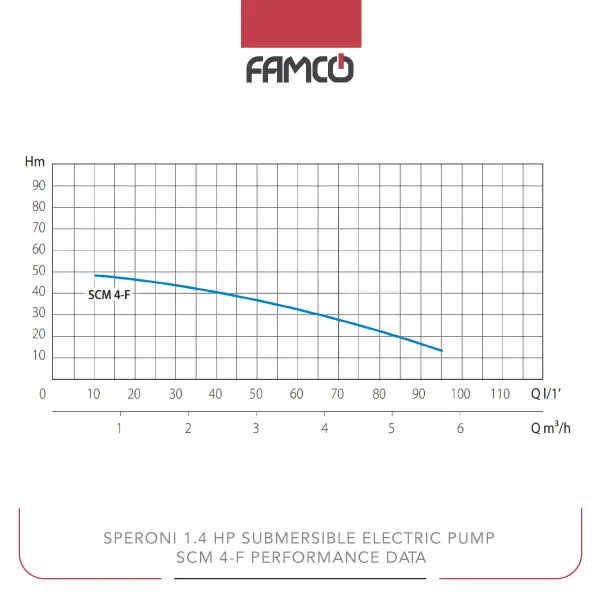

Speroni 1.4 HP Submersible Electric Pump SCM 4-F Performance Data

Q (m3/h)	0.3	0.6	0.9	1.2	1.8	2.7	3.6	4.2	5.1	5.7
Q (l/min)	5	10	15	20	30	45	60	70	85	95
H (m)	47	46	45	43	42	37	31	26	18	12

Speroni 1.4 HP Submersible Electric Pump SCM 4-F Applications

Drainage of flooded areas
Water transfer in wells and tanks
Pool and pond emptying
Industrial water pumping

Speroni 1.4 HP Submersible Electric Pump SCM 4-F Benefits

High durability with IP 68 protection
Efficient performance with 5.7 m3/h flow rate
Suitable for deep submersion up to 15 meters
Operates reliably in sandy environments

Speroni 1.4 HP Submersible Electric Pump SCM 4-F Price List

No.	Name	Price
1	Speroni 1.4 HP Submersible Electric Pump SCM 4-F Price	Contact us

Brand	Speroni
Power (kW)	1.1
Maximum Flow Rate (m3/h)	5.7
Maximum Flow Rate (L/min)	95
Current (A)	5.2
Maximum Liquid Temperature (°C)	35
Number of Phases	Single-Phase
Voltage (V)	230
Insulation Class	F
Degree of Protection	IP68
