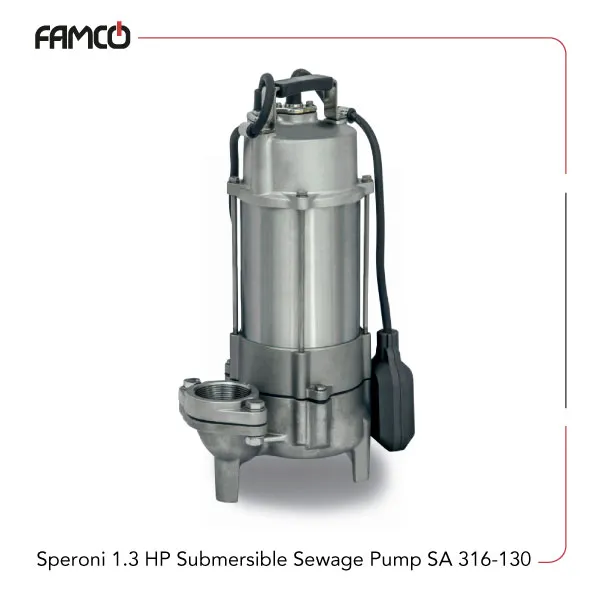

Speroni 1.3 HP Submersible Sewage Pump SA 316-130 Specifications
Speroni 1.3 HP submersible sewage pump SA 316-130 offers a power of 1.3 HP (or 1 kW), suitable for both single-phase and three-phase setups. It draws 4.8 A in single-phase mode and 1.9 A in three-phase. The device can handle a maximum flow rate of 24 cubic meters per hour, which is equivalent to 400 liters per minute, making it efficient for various water transfer tasks. It can generate a maximum head of 12 meters, allowing it to lift water effectively over considerable heights. This Speroni sewage pump is built with an insulation class F, ensuring safety and durability under typical operating conditions. Its protection rating is IP 68, meaning it is dust-tight and protected against continuous immersion in water. It is designed to operate with liquids up to 35°C for home use, complying with EN 60335-2-41 standards, and can handle liquids up to 40°C for other applications. The maximum immersion depth is 20 meters, provided the cable length is appropriate. The minimum suction level required is 150 mm, which helps in proper operation without cavitation or air intake issues.
| Specification | Value |
| Power (HP) | 1.3 |
| Power (kW) | 1 |
| Number of phases | Single- and three-phase |
| Ampere | 4.8 A (single-phase)/ 1.9 A (Three-phase) |
| Maximum Flow rate (m3/h) | 24 |
| Maximum Flow rate (l/min) | 400 |
| Maximum head (m) | 12 |
| Insulation Class | F |
| Protection | IP 68 |
| Liquid temperature | up to 35°C |
| Temperature max. liquid | 40°C |
| Maximum immersion depth | 20 mt. |
| Min. suction level | 150 mm |

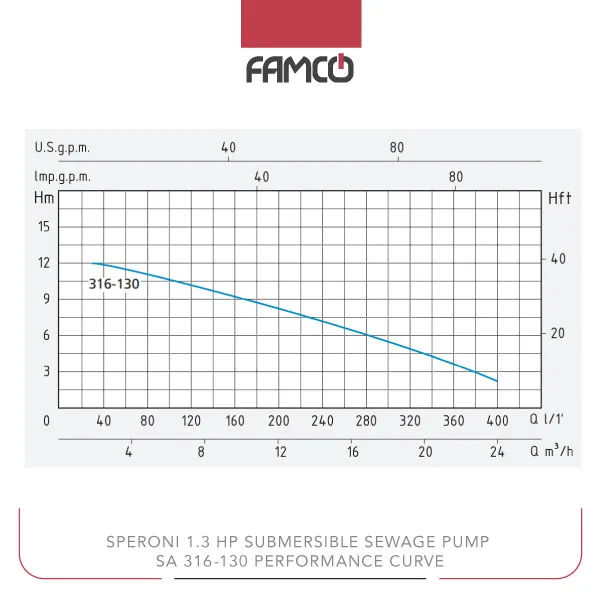

Speroni 1.3 HP Submersible Sewage Pump SA 316-130 Performance Data
| m3/h | 1.5 | 3 | 6 | 8 | 9 | 12 | 24 |
| lt/min | 25 | 30 | 100 | 133 | 150 | 200 | 400 |
| Heade (m) | 12 | 11.7 | 10.5 | 9.7 | 9.2 | 8 | 2 |
Speroni 1.3 HP Submersible Sewage Pump SA 316-130 Applications
- Home water transfer and drainage
- Irrigation systems in agriculture
- Industrial fluid handling
- Deep well water extraction
Speroni 1.3 HP Submersible Sewage Pump SA 316-130 Benefits
- High flow rate for quick water movement
- Suitable for various power sources
- Durable with IP 68 protection rating
- Operates efficiently at different depths
Speroni 1.3 HP Submersible Sewage Pump SA 316-130 Price List
| No. | Name | Price |
| 1 | Speroni 1.3 HP Submersible Sewage Pump SA 316-130 Price | Contact us |
