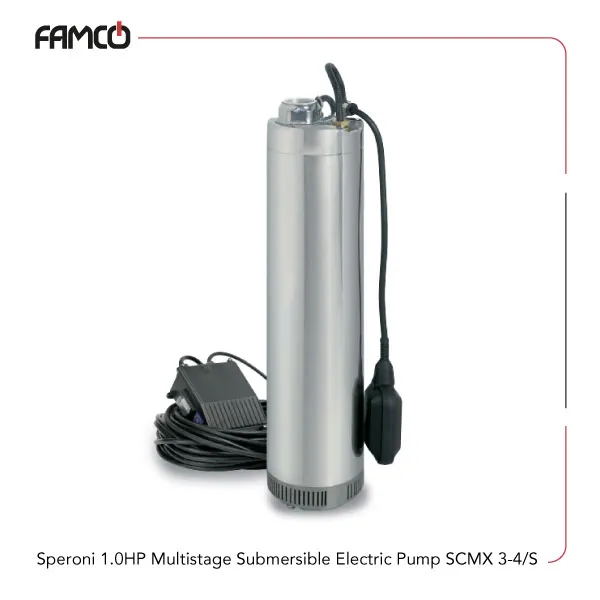

Speroni 1.0 HP Multistage Submersible Electric Pump SCMX 3-4/S Specifications
Speroni multistage submersible electric pump SCMX 3-4/S features a power output of 0.8 kW, equivalent to 1 HP, and operates on a single-phase power supply of 230V. It draws a current of 4A during operation. The device can handle a maximum flow rate of 4.5 cubic meters per hour, which translates to 75 liters per minute, making it suitable for various fluid transfer tasks. It can generate a maximum head of 42 meters, allowing it to lift liquids efficiently over significant heights. This Speroni submersible pump has a discharge diameter of 1 inch 1/4 (DNM), ensuring compatibility with standard piping systems. Weighing 15.8 kg, it is designed for durability and ease of handling. The pump is capable of working with liquids at temperatures up to 35°C and can be submerged up to 15 meters deep, making it ideal for deep well or sump applications. It can operate in environments with sand content up to 40 grams per cubic meter, suitable for sandy or particulate-laden liquids. The device features an insulation class of F, providing good thermal resistance, and a protection degree of IP 68, ensuring complete protection against dust and water ingress, suitable for harsh environments.
| Specification | Value |
| Power (kW) | 0.8 |
| Power (HP) | 1 |
| Current (A) | 4 |
| Maximum Flow rate (m3/h) | 4.5 |
| Maximum Flow rate (l/min) | 75 |
| Maximum Head (m) | 42 |
| DNM | 1″ 1/4 |
| Weight (kg) | 15.8 |
| Liquid temperature | up to 35°C |
| Submersion depth | 15 mt |
| Sand content | 40 g/m3 |
| Phase | Single-phase |
| Insulation Class | F |
| Protection Degree | IP 68 |
| Voltage (V) | 230 |
Speroni 1.0 HP Multistage Submersible Electric Pump SCMX 3-4/S Performance Data
| Q (m3/h) | 0 | 0.6 | 1.5 | 2.4 | 3.6 | 4.5 |
| Q (l/min) | 0 | 10 | 25 | 40 | 60 | 75 |
| H (m) | 79 | 73 | 68 | 55 | 40 | 25 |
Speroni 1.0 HP Multistage Submersible Electric Pump SCMX 3-4/S Applications
- Deep well water extraction
- Sump and drainage pumping
- Irrigation systems
- Industrial fluid transfer
Speroni 1.0 HP Multistage Submersible Electric Pump SCMX 3-4/S Benefits
- High efficiency with 0.8 kW power output
- Durable IP 68 protection for harsh environments
- Capable of handling sandy liquids up to 40 g/m3
- Operates submerged up to 15 meters deep
Speroni 1.0 HP Multistage Submersible Electric Pump SCMX 3-4/S Price List
| No. | Name | Price |
| 1 | Speroni 1.0 HP Multistage Submersible Electric Pump SCMX 3-4/S Price | Contact us |
