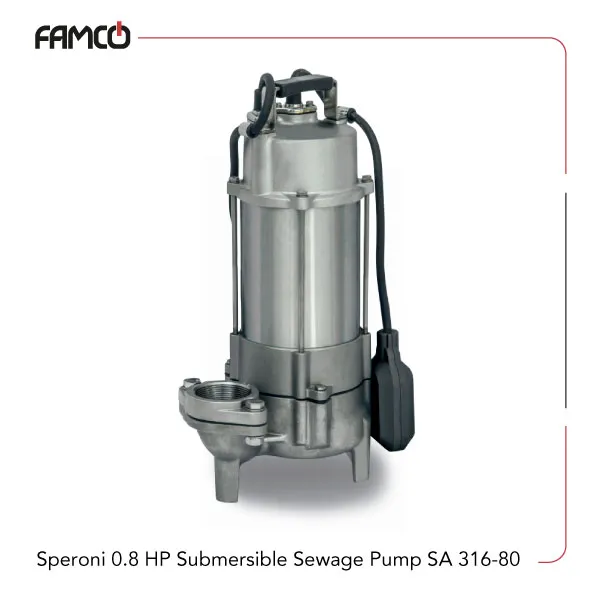

Speroni 0.8 HP Submersible Sewage Pump SA 316-80 Specifications
Speroni 0.8 HP submersible sewage pump SA 316-80 offers a power of 0.8 HP (0.6 kW) and operates on a three-phase power supply. It can handle a maximum flow rate of 12 cubic meters per hour, which is equivalent to 200 liters per minute. The device can generate a maximum head of 9.2 meters. It features an insulation class F, ensuring safety and durability under different conditions. This Speroni sewage pump is protected with an IP 68 rating, providing excellent resistance against dust and water ingress. It is designed to work with liquids up to 35°C for home use, complying with EN 60335-2-41 standards, and can handle liquids up to 40°C for other applications. The maximum immersion depth is 20 meters, provided the cable length is appropriate. The minimum suction level required is 150 mm, making it suitable for submerged operations. The pump’s specifications make it ideal for applications requiring reliable water transfer, deep immersion, and high durability in demanding environments.
| Specification | Value |
| Power (HP) | 0.8 |
| Power (kW) | 0.6 |
| Number of phases | three-phase |
| Ampere | 3 A (single-phase)/ 1 A (Three-phase) |
| Maximum Flow rate (m3/h) | 12 |
| Maximum Flow rate (l/min) | 200 |
| Maximum head (m) | 9.2 |
| Insulation Class | F |
| Protection | IP 68 |
| Liquid temperature | up to 35°C |
| Temperature max. liquid | 40°C |
| Maximum immersion depth | 20 mt. |
| Min. suction level | 150 mm |

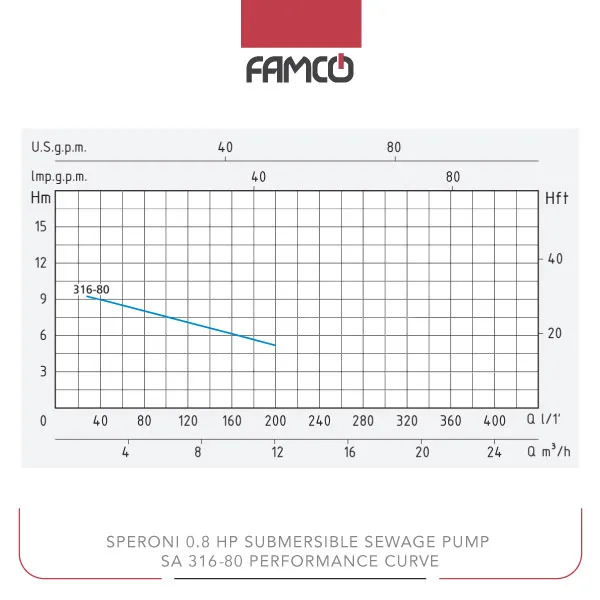

Speroni 0.8 HP Submersible Sewage Pump SA 316-80 Performance Data
| m3/h | 1.5 | 3 | 6 | 8 | 9 | 12 |
| lt/min | 25 | 30 | 100 | 133 | 150 | 200 |
| Heade (m) | 9.2 | 8.5 | 7.3 | 6.3 | 6.1 | 5 |
Speroni 0.8 HP Submersible Sewage Pump SA 316-80 Applications
- Water drainage in residential and industrial settings
- Irrigation systems for agriculture
- Deep well water extraction
- Liquid transfer in construction sites
Speroni 0.8 HP Submersible Sewage Pump SA 316-80 Benefits
- High flow rate for efficient water transfer
- Deep immersion capability up to 20 meters
- Durable and protected against dust and water
- Suitable for various liquid temperatures and environments
Speroni 0.8 HP Submersible Sewage Pump SA 316-80 Price List
| No. | Name | Price |
| 1 | Speroni 0.8 HP Submersible Sewage Pump SA 316-80 Price | Contact us |
