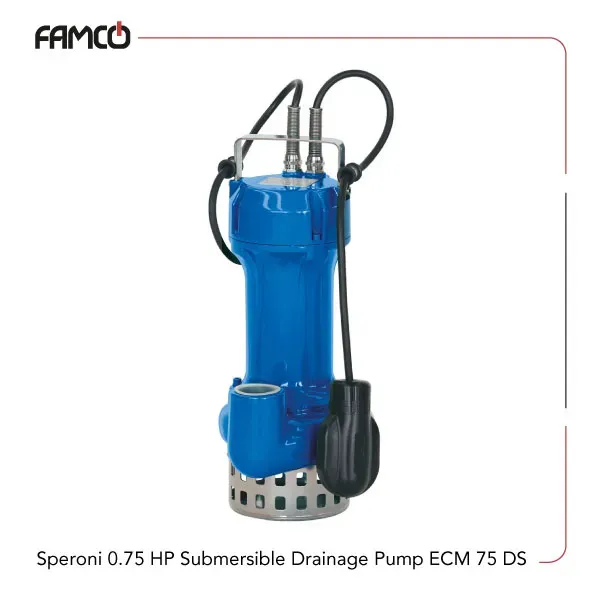

Speroni 0.75 HP Submersible Drainage Pump ECM 75 DS Specifications
Speroni submersible drainage pump ECM 75 DS delivers 0.75 HP (0.5 kW) of power and draws 4 amperes. It features a 1.5-inch pipe diameter and can move up to 21 cubic meters of water per hour, or 350 liters per minute, making it suitable for a variety of water transfer tasks. The pump can lift water to a maximum height of 10 meters, providing efficient performance over moderate distances. Powered by a 230-volt supply, the pump weighs approximately 17.3 kilograms, offering a balance of portability and stability. This Speroni drainage pump is designed to handle liquids up to 35°C and can be submerged up to 20 meters, provided the cable length is adequate. With insulation class F for thermal protection and an IP68 rating for resistance to dust and water, this pump is well-suited for residential, agricultural, or industrial applications. Its combination of submersible capability, efficiency, and practical design makes it a versatile solution for demanding water pumping needs.
| Specification | Value |
| Number of phases | Single-phase |
| Power (HP) | 0.75 |
| Power (kW) | 0.5 |
| Current (A) | 4 |
| Pipe DNM | 1″1/2 |
| Maximum Flow rate (m3/h) | 21 |
| Maximum Flow rate (l/min) | 350 |
| Maximum head (m) | 10 |
| Voltage (V) | 230 |
| Weight (kg) | 17.3 |
| Insulation Class | F |
| Protection Degree | IP 68 |
| Liquid temperature | up to 35°C |
| Maximum immersion depth | 20 meters (with appropriate cable length) |

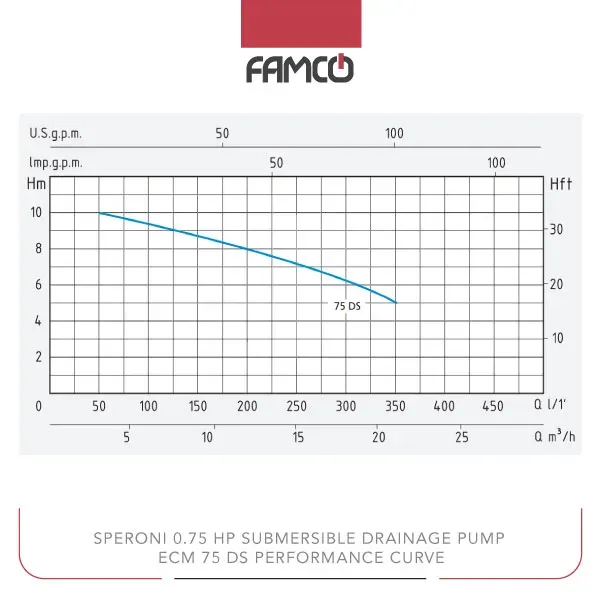

Speroni 0.75 HP Submersible Drainage Pump ECM 75 DS Performance Data
| Q (m3/h) | 3 | 6 | 9 | 12 | 15 | 18 | 21 |
| Q (l/min) | 50 | 100 | 150 | 200 | 250 | 300 | 350 |
| H (m) | 10 | 9.5 | 9 | 8 | 7 | 6 | 5 |
Speroni 0.75 HP Submersible Drainage Pump ECM 75 DS Applications
- Residential water supply and irrigation
- Drainage and flood control
- Industrial water transfer
- Deep well water extraction
Speroni 0.75 HP Submersible Drainage Pump ECM 75 DS Benefits
- High flow capacity for efficient water movement
- Robust construction with IP 68 protection
- Suitable for deep immersion up to 20 meters
- Energy-efficient with low power consumption
Speroni 0.75 HP Submersible Drainage Pump ECM 75 DS Price List
| No. | Name | Price |
| 1 | Speroni 0.75 HP Submersible Drainage Pump ECM 75 DS Price | Contact us |
