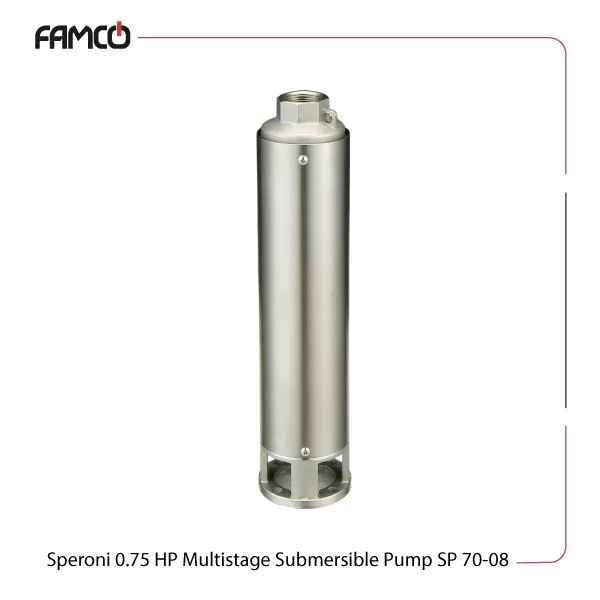

Speroni 0.75 HP Multistage Submersible Pump SP 70-08 Specifications
This pump offers a power of 0.75 HP (0.55 kW) and is designed for reliable performance in various applications. It features a maximum head of 54 meters and can handle a flow rate of up to 70 liters per minute. Suitable for immersion depths of 150 meters, it operates efficiently with a liquid temperature limit of 35°C. The motor is built for continuous duty even in lengthy operations. The Speroni submersible pump supports both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50Hz and two poles for optimal performance. The insulation class is F, providing good thermal protection, while the IP68 protection degree guarantees resistance to dust and water ingress. The motor shaft is made of durable stainless steel AISI 304, and the mechanical seal is composed of ceramic and graphite materials. The impellers of this Speroni pump are made from Noryl, a high-performance plastic that offers strength and resistance to wear. This pump is ideal for applications that require high immersion depths, resistance to sand and debris, and continuous operation in demanding environments.
| Specification | Value |
| Power (HP) | 0.75 |
| Power (kW) | 0.55 |
| Head (m) | 54 |
| Max. flow rate (l/min) | 70 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

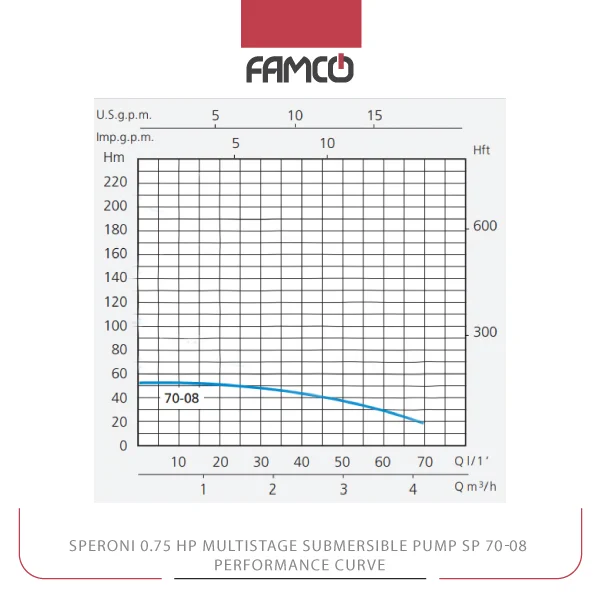

Speroni 0.75 HP Multistage Submersible Pump SP 70-08 Performance Data
| M3/h | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| Head (m) | 54 | 53 | 51 | 50 | 49 | 46 | 43 | 41 | 38 | 30 | 19 |

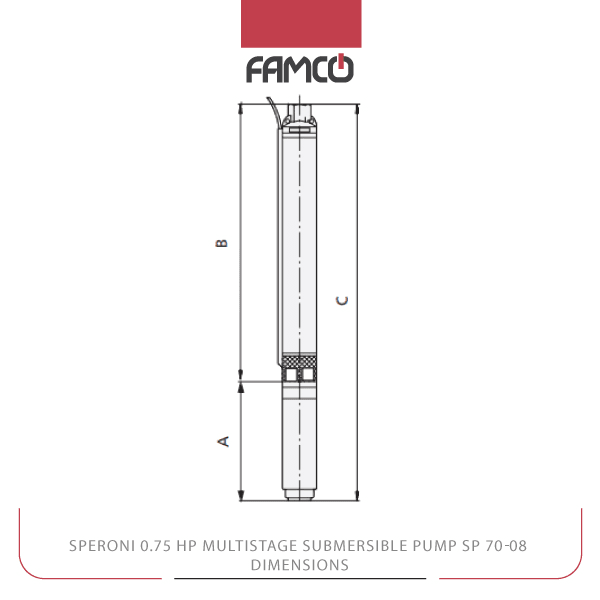

Speroni 0.75 HP Multistage Submersible Pump SP 70-08 Dimensions
| Dimensions (mm) | A | 365 |
| B | 289 | |
| C | 654 |
Speroni 0.75 HP Multistage Submersible Pump SP 70-08 Applications
- Water transfer in residential and commercial settings
- Drainage and flood control
- Industrial liquid handling
- Deep well and borehole pumping
Speroni 0.75 HP Multistage Submersible Pump SP 70-08 Benefits
- High durability with stainless steel shaft and ceramic/graphite seal
- Suitable for deep immersion up to 150 meters
- Supports both single-phase and three-phase power supplies
- Reliable continuous duty motor for long-term operation
Speroni 0.75 HP Multistage Submersible Pump SP 70-08 Price List
| No. | Name | Price |
| 1 | Speroni 0.75 HP Multistage Submersible Pump SP 70-08 Price | Contact us |
