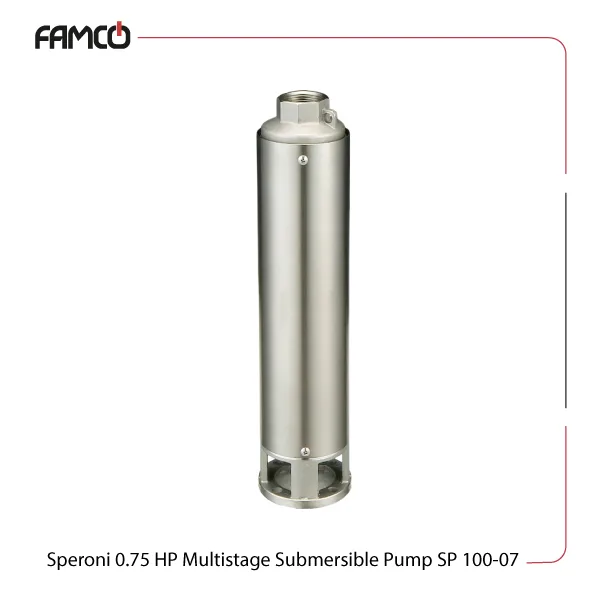

Speroni 0.75 HP Multistage Submersible Pump SP 100-07 Specifications
This pump features a power output of 0.75 HP (0.55 kW), making it suitable for various demanding applications. It can generate a head of 46 meters and handle a maximum flow rate of 100 liters per minute. Designed for durability, the SP Speroni pump series operates efficiently at a maximum immersion depth of 150 meters and can work with liquids up to 35°C. The motor is built for continuous duty, ensuring reliable operation over long periods. It supports both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50Hz and two poles for smooth performance. The insulation class is F, providing good thermal resistance, while the protection degree of IP68 guarantees complete protection against dust and water ingress. The motor shaft is made of stainless steel AISI 304, offering corrosion resistance. The mechanical seal, composed of ceramic and graphite, gives this Speroni submersible pump all the resistance it needs against corrosion and ingress. The impellers are made from Noryl, a durable plastic material suitable for various liquids. The pump’s design emphasizes robustness and efficiency, making it ideal for water transfer, drainage, and industrial applications where durability and performance are critical.
| Specification | Value |
| Power (HP) | 0.75 |
| Power (kW) | 0.55 |
| Head (m) | 46 |
| Max. flow rate (l/min) | 100 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

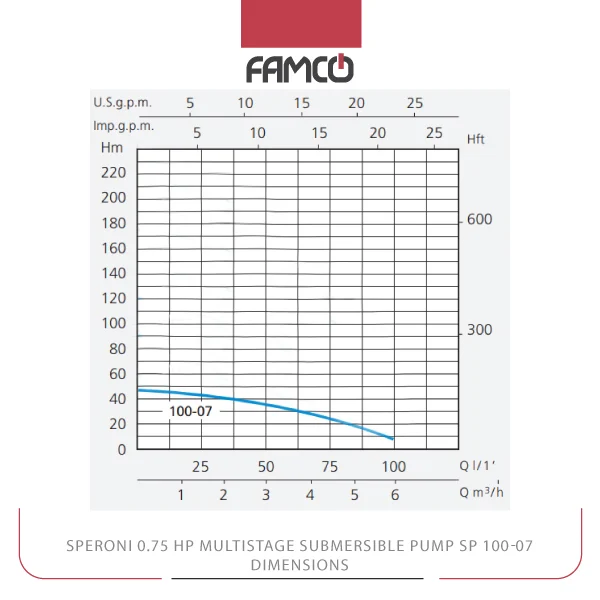

Speroni 0.75 HP Multistage Submersible Pump SP 100-07 Performance Data
| M3/h | 0 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
| l/min | 0 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Head (m) | 46 | 43 | 42 | 41 | 40 | 37 | 33 | 28 | 21 | 13 | 7 |

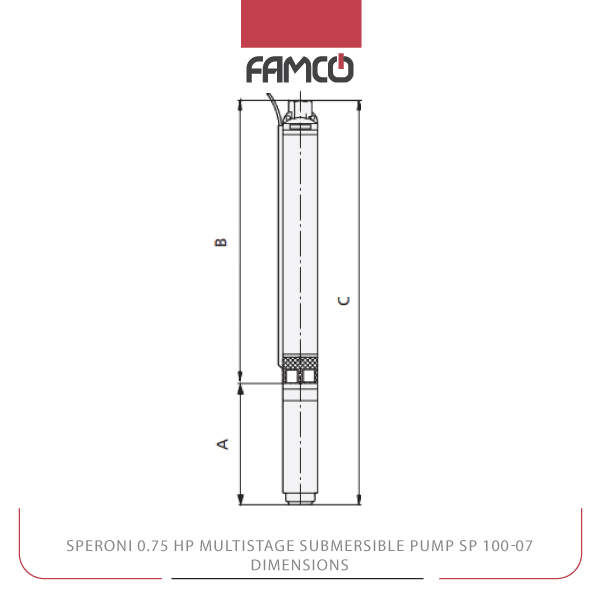

Speroni 0.75 HP Multistage Submersible Pump SP 100-07 Dimensions
| Dimensions (mm) | A | 365 |
| B | 301 | |
| C | 666 |
Speroni 0.75 HP Multistage Submersible Pump SP 100-07 Applications
- Water drainage and removal
- Irrigation systems
- Industrial liquid transfer
- Flood control and emergency water pumping
Speroni 0.75 HP Multistage Submersible Pump SP 100-07 Benefits
- High durability with stainless steel shaft and ceramic seal
- Flexible power options for different setups
- Suitable for submerged use with IP68 protection
- Reliable continuous duty motor for long-term operation
Speroni 0.75 HP Multistage Submersible Pump SP 100-07 Price List
| No. | Name | Price |
| 1 | Speroni 0.75 HP Multistage Submersible Pump SP 100-07 Price | Contact us |
