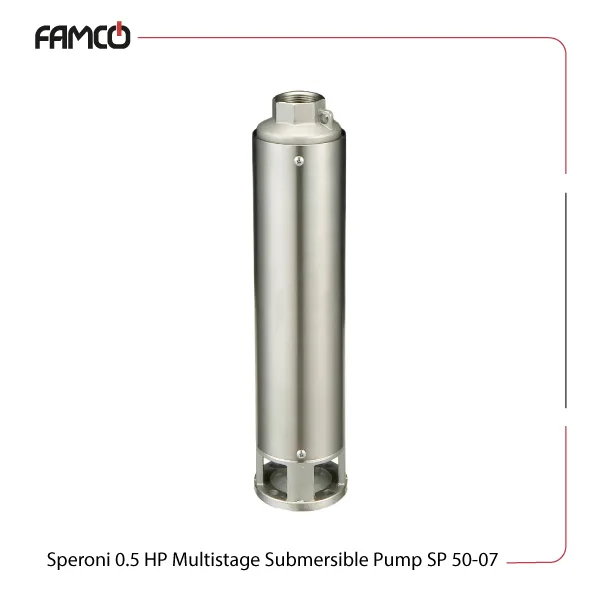

Speroni 0.5 HP Multistage Submersible Pump SP 50-07 Specifications
This pump offers a power output of 0.5 HP (0.37 kW) for various water transfer tasks. It features a head height of 46 meters and can handle a maximum flow rate of 50 liters per minute. The device is designed for deep immersion, with a maximum depth of 150 meters, and can operate efficiently with liquids up to 35°C. Compatible with both single-phase (230V) and three-phase (400V) power supplies, this Speroni submersible pump operates at a frequency of 50Hz. The pump’s motor has two poles and is manufactured for continuous duty, suitable for enduring extended operation periods. Its insulation class is F, providing good thermal resistance, and it boasts an IP68 protection degree, making it highly resistant to dust and water ingress. The motor shaft is made of stainless steel AISI 304, ensuring durability and corrosion resistance. The mechanical seal in the 50-07 Speroni pump is made from a composite of ceramic and graphite, which offers excellent sealing capabilities even when submerged. The impellers are also lasting in effect, made from Noryl, a sturdy plastic material suitable for water applications. As for the pump’s dimensions, they are 346mm in length, 271mm in width, and 617mm in height, keeping it compact yet impactful.
| Specification | Value | |
| Power (HP) | 0.5 | |
| Power (kW) | 0.37 | |
| Head (m) | 46 | |
| Max. flow rate (l/min) | 50 | |
| Max. immersion depth (m) | 150 | |
| Single-phase voltage (V) | 230 | |
| Liquid temperature | up to 35 °C | |
| Sand content max (g/m3) | 50 | |
| Motor | continuous duty | |
| Voltage (V) | single-phase | 230 |
| three-phase | 400 | |
| Frequency (Hz) | 50 | |
| Number of poles | 2 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| Motor shaft | stainless steel aisi 304 | |
| Mechanical seal | Ceramic/Graphite | |
| Impellers | Noryl | |
| No. of stages | 7 | |

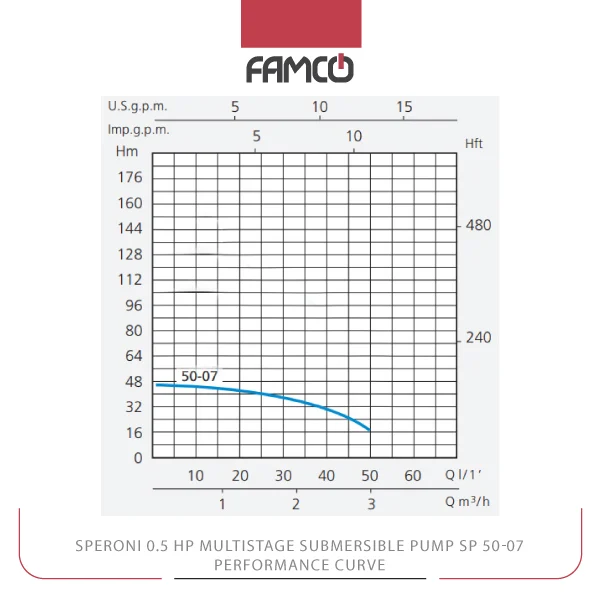

Speroni 0.5 HP Multistage Submersible Pump SP 50-07 Performance Data
| M3/h | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 |
| l/min | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| Head (m) | 46 | 43 | 42 | 39 | 36 | 33 | 29 | 26 | 22 |

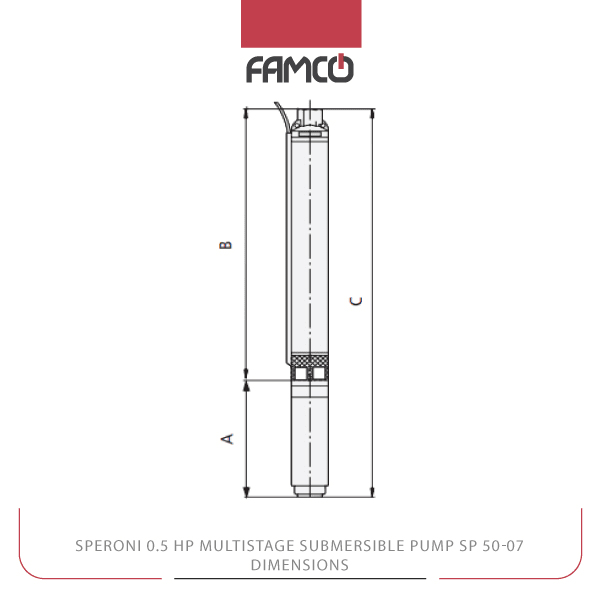

Speroni 0.5 HP Multistage Submersible Pump SP 50-07 Dimensions
| Dimensions (mm) | A | 346 |
| B | 271 | |
| C | 617 |
Speroni 0.5 HP Multistage Submersible Pump SP 50-07 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Drainage of flooded areas
- Industrial water transfer
Speroni 0.5 HP Multistage Submersible Pump SP 50-07 Benefits
- High durability with stainless steel shaft and IP68 protection
- Reliable continuous-duty motor for long-term operation
- Suitable for deep immersion up to 150 meters
- Handles liquids with moderate sand content efficiently
Speroni 0.5 HP Multistage Submersible Pump SP 50-07 Price List
| No. | Name | Price |
| 1 | Speroni 0.5 HP Multistage Submersible Pump SP 50-07 Price | Contact us |
