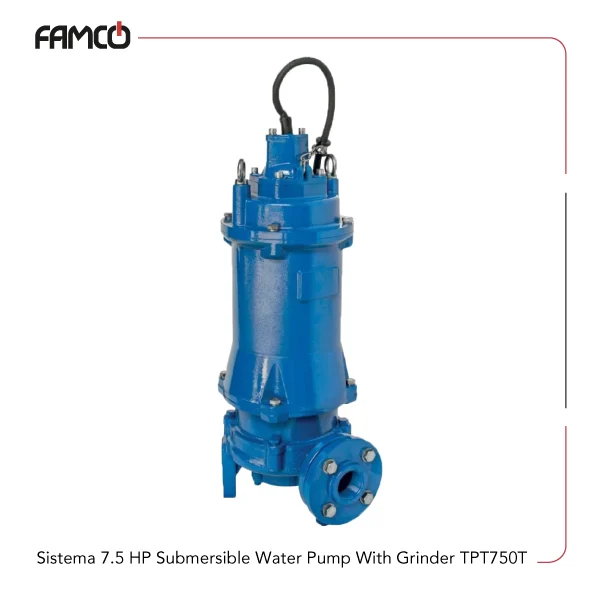

Sistema 7.5 HP Submersible Water Pump With Grinder TPT750T Specifications
Sistema 7.5 HP submersible water pump with grinder TPT750T operates with a power of 5.5 kW (7.5 HP) and draws a current of 11 amperes. It can handle a maximum flow rate of 27 cubic meters per hour, which is equivalent to 450 liters per minute. This sistema submersible sewage pump can deliver water up to a height of 42 meters, making it suitable for various applications requiring high pressure. The maximum immersion depth is 10 meters, allowing flexible installation options, and it requires a minimum suction level of 125 mm for proper operation. The pump features an insulation class F, ensuring safety and durability. Its protection rating is IP 68, making it highly resistant to dust and water ingress. The motor body and impeller are made of cast iron, providing strength and longevity, while the shaft with rotor is crafted from stainless steel AISI 304, offering corrosion resistance and smooth operation. Overall, this pump is built for demanding environments, combining robust materials with high performance specifications to meet various water transfer needs.
| Specification | Value |
| Phase | Three-phase |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Current (A) | 11 |
| Maximum Flow rate (m3/h) | 27 |
| Maximum Flow rate (l/min) | 450 |
| Maximum delivery head (m) | 42 |
| Liquid temperature up to | 35°C (for home use according to EN 60335-2-41) |
| Temperature max. liquid | 40°C (for other uses) |
| Maximum immersion depth | 10 meters |
| Min. suction level | 125 mm |
| Insulation Class | F |
| Protection | IP 68 |
| Motor body | Cast Iron |
| Impeller | Cast Iron |
| Shaft with rotor | Stainless Steel AISI 304 |
Sistema 7.5 HP Submersible Sewage Pump With Grinder TPT750T Performance Curve
| m3/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| H (m) | 42 | 41.4 | 41 | 40 | 39 | 38 | 36 | 33 | 25 | 10 |
Sistema 7.5 HP Submersible Sewage Pump With Grinder TPT750T Dimensions
| A | B | C | H | H1 | DNM | Weight |
| 270 | 220 | 160 | 635 | 100 | 2″ | 70 |
Sistema 7.5 HP Submersible Sewage Pump With Grinder TPT750T Applications
- Irrigation systems in agriculture
- Water supply for large residential complexes
- Drainage and flood control
- Industrial water transfer
Sistema 7.5 HP Submersible Sewage Pump With Grinder TPT750T Benefits
- High flow rate and pressure for demanding tasks
- Durable cast iron construction for longevity
- Corrosion-resistant stainless steel shaft
- Waterproof IP 68 protection for outdoor use
Sistema 7.5 HP Submersible Sewage Pump With Grinder TPT750T Price List
| No. | Name | Price |
| 1 | Sistema 7.5 HP Submersible Sewage Pump With Grinder TPT750T Price | Contact us |
