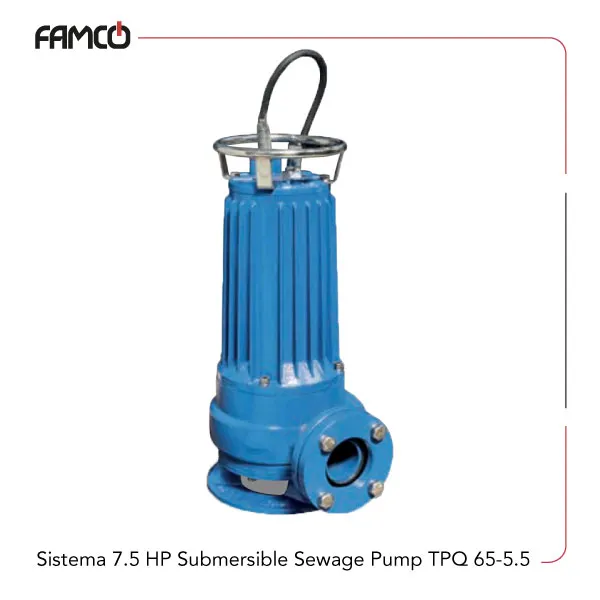

Sistema 7.5 HP Submersible Sewage Pump TPQ 65-5.5

5.5 kW (7.5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: Sistema Pumps, Sistema Sewage Pump, Sistema Submersible Pump

Overview of Sistema 7.5 HP Submersible Sewage Pump TPQ 65-5.5

Sistema 7.5 HP submersible sewage pump TPQ 65-5.5 brings together a 7.5 HP motor paired with a 5.5 kW output, giving it enough strength for demanding tasks without feeling excessive. It draws 10 A during operation, which helps keep its performance steady and predictable. Built as a three-phase unit, it fits naturally into setups where consistent power delivery and smooth operation are important. This combination of power, current, and configuration makes it suitable for projects that call for steady, confident drive.

Sistema 7.5 HP Submersible Sewage Pump TPQ 65-5.5 Specifications

This high-performance three-phase submersible pump offers a power of 7.5 HP (5.5 kW) and operates on a current of 10 amperes. It is designed for continuous operation when fully submerged, making it ideal for various applications. The pump can handle a maximum flow rate of 72 cubic meters per hour, which translates to 1200 liters per minute, ensuring efficient water transfer. It can generate a maximum head of 25 meters, suitable for lifting water over significant heights. This Sistema sewage pump is capable of working with liquids at temperatures up to 35°C for residential use, complying with EN 60335-2-41 standards, and can handle liquids up to 50°C for other industrial or commercial applications. It supports a wide pH range from 4 to 10, making it versatile for different water qualities. The maximum immersion depth is 10 meters, allowing flexible installation options in deep water sources. Its robust construction and continuous duty capability make it a reliable choice for demanding environments, whether for water supply, drainage, or industrial processes.

Specification	Value
Power (HP)	7.5
Power (kW)	5.5
Current	10 A
Number of phases	Three-phase
Maximum Flow rate (m3/h)	72
Maximum Flow rate (l/min)	1200
Maximum head (m)	25
Liquid temperature	up to 35°C (for home use according to EN 60335-2-41)
Maximum immersion depth	10 meters (for home use according to EN 60335-2-41)
Liquid pH	from 4 to 10
Operation	Continuous duty with completely submersed pump

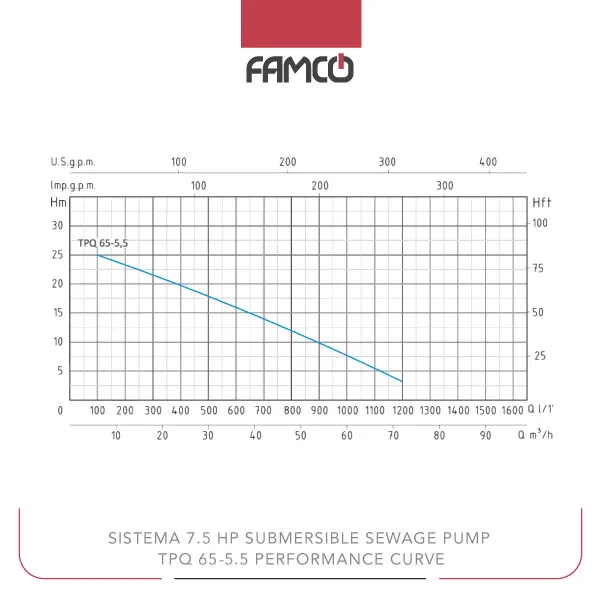

Sistema 7.5 HP Submersible Sewage Pump TPQ 65-5.5 Performance Data

Q (m3/h)	6	12	18	24	36	48	60	72
Q (l/min)	100	200	300	400	600	800	1000	1200
H (m)	25	23	21.5	20	16	12	7.5	3

Sistema 7.5 HP Submersible Sewage Pump TPQ 65-5.5 Applications

Water supply systems
Drainage and sewage management
Industrial water transfer
Agricultural irrigation

Sistema 7.5 HP Submersible Sewage Pump TPQ 65-5.5 Benefits

High flow capacity for efficient water movement
Reliable continuous operation when submerged
Versatile with temperature and pH tolerance
Suitable for deep water sources up to 10 meters

Sistema 7.5 HP Submersible Sewage Pump TPQ 65-5.5 Price List

No.	Name	Price
1	Sistema 7.5 HP Submersible Sewage Pump TPQ 65-5.5 Price	Contact us

Brand	Sistema
Power (kW)	5.5
Power (HP)	7.5
Number of Phases	Three-phase
Maximum Flow Rate (m3/h)	72
Maximum Flow Rate (L/min)	1200
Maximum Liquid Temperature (°C)	35
Maximum immersion depth (m)	10
