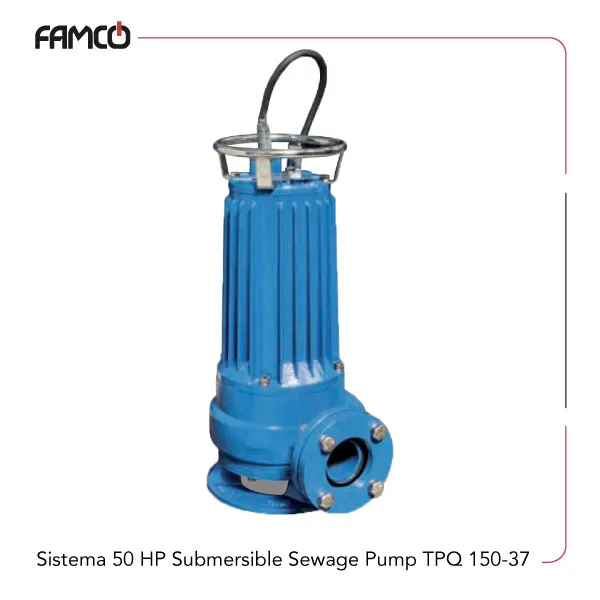

Sistema 50 HP Submersible Sewage Pump TPQ 150-37 Specifications
This high-power, three-phase submersible pump is designed for demanding applications. It delivers a maximum flow rate of 300 cubic meters per hour, equivalent to 5000 liters per minute, making it suitable for large-scale water transfer tasks. This Sistema submersible pump can generate a maximum head of 34.9 meters, allowing it to lift water efficiently over significant heights. It operates with a power of 50 HP or 37 kW and requires a current of 68 amperes. The device is capable of handling liquids with temperatures up to 35°C for residential use, conforming to EN 60335-2-41 standards, and up to 50°C for other industrial applications. It can be fully submerged at depths up to 10 meters, which is ideal for various water extraction and transfer tasks. The pump is compatible with liquids having a pH range from 4 to 10, ensuring versatility in different environments. Designed for continuous operation, it is suitable for long-term use in demanding settings, providing reliable performance with consistent power and flow rates.
| Specification | Value |
| Power (HP) | 50 |
| Power (kW) | 37 |
| Current | 68 A |
| Number of phases | Three-phase |
| Maximum Flow rate (m3/h) | 300 |
| Maximum Flow rate (l/min) | 5000 |
| Maximum head (m) | 34.9 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Temperature max. liquid | 50°C (for other uses) |
| Maximum immersion depth | 10 m (for home use according to EN 60335-2-41) |
| Liquid pH | from 4 to 10 |
| Continuous duty | Yes, with completely submersed pump |

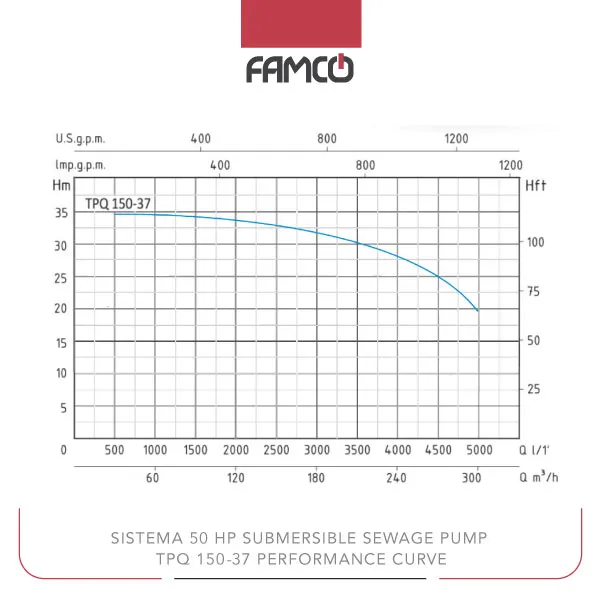

Sistema 50 HP Submersible Sewage Pump TPQ 150-37 Performance Data
| Q (m3/h) | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | 270 | 300 |
| Q (l/min) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| H (m) | 34.9 | 34.7 | 34.5 | 33.8 | 32.8 | 31.3 | 29.3 | 26.5 | 21.3 | 19 |
Sistema 50 HP Submersible Sewage Pump TPQ 150-37 Applications
- Water transfer in industrial plants
- Irrigation systems for agriculture
- Drainage of flooded areas
- Water supply for large facilities
Sistema 50 HP Submersible Sewage Pump TPQ 150-37 Benefits
- High flow rate for quick water transfer
- Durable construction for long-term use
- Suitable for various liquid types and temperatures
- Supports continuous operation without interruption
Sistema 50 HP Submersible Sewage Pump TPQ 150-37 Price List
| No. | Name | Price |
| 1 | Sistema 50 HP Submersible Sewage Pump TPQ 150-37 Price | Contact us |
