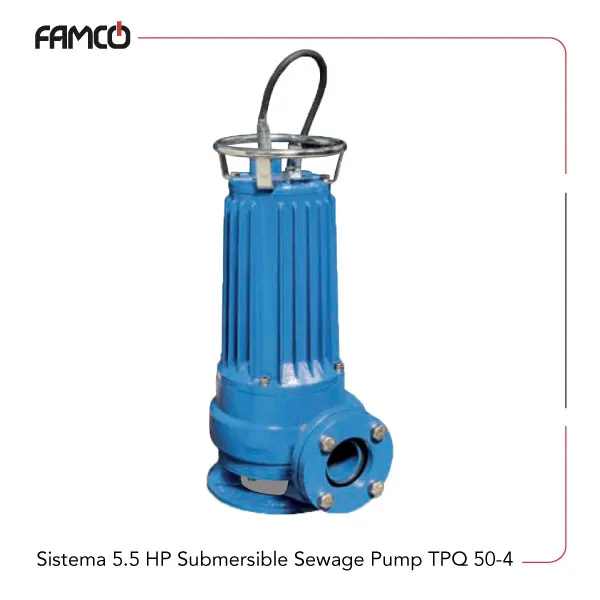

Sistema 5.5 HP Submersible Sewage Pump TPQ 50-4 Specifications
Sistema submersible sewage pump TPQ 50-4 is equipped with a 5.5 HP (4 kW) motor, delivering strong performance across a wide range of applications. It operates at 8.7 amperes and can move up to 60 cubic meters of water per hour, equal to 1,000 liters per minute. With a maximum head of 20 meters, it is suitable for situations that require lifting water over substantial heights. This Sistema sewage pump is designed to handle liquids up to 35°C for residential use in accordance with EN 60335-2-41 standards, and up to 50°C for industrial or commercial applications. It can be submerged to a depth of 10 meters, offering flexibility for various installation environments. It also supports liquids with a pH range from 4 to 10. Engineered for continuous operation when fully submerged, this pump is well-suited for long-term tasks such as water transfer, drainage, and irrigation. Its construction allows it to maintain consistent performance even in demanding conditions, making it a practical choice for both residential and industrial settings.
| Specification | Value |
| Power (HP) | 5.5 |
| Power (kW) | 4 |
| Current | 8.7 A |
| Number of phases | Three-phase |
| Maximum Flow rate (m3/h) | 60 |
| Maximum Flow rate (l/min) | 1000 |
| Maximum head (m) | 20 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Liquid pH | from 4 to 10 |
| Operation | Continuous duty with completely submersed pump |

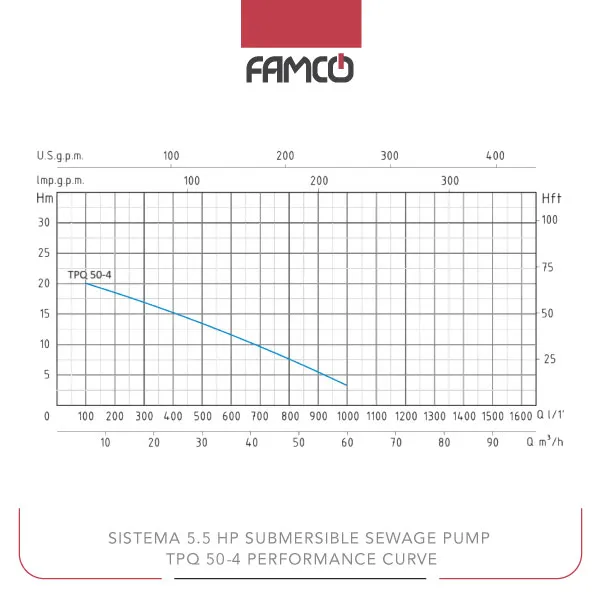

Sistema 5.5 HP Submersible Sewage Pump TPQ 50-4 Performance Data
| Q (m3/h) | 6 | 12 | 18 | 24 | 36 | 48 | 60 |
| Q (l/min) | 100 | 200 | 300 | 400 | 600 | 800 | 1000 |
| H (m) | 20 | 17.8 | 17 | 15 | 12 | 7.5 | 3 |
Sistema 5.5 HP Submersible Sewage Pump TPQ 50-4 Applications
- Water transfer in residential settings
- Drainage and sewage management
- Irrigation systems for agriculture
- Industrial water pumping and transfer
Sistema 5.5 HP Submersible Sewage Pump TPQ 50-4 Benefits
- High flow rate of up to 60 m3/h for efficient water movement
- Suitable for continuous operation when fully submerged
- Handles liquids with pH from 4 to 10, versatile for different water qualities
- Operates reliably at depths up to 10 meters and temperatures up to 50°C
Sistema 5.5 HP Submersible Sewage Pump TPQ 50-4 Price List
| No. | Name | Price |
| 1 | Sistema 5.5 HP Submersible Sewage Pump TPQ 50-4 Price | Contact us |
