Sistema 5.5 HP Submersible Sewage Pump TP 316-550 Specifications
Sistema submersible sewage pump TP 316-550 features a powerful 5.5 HP (4 kW) motor designed for reliable operation in various applications. It operates on a three-phase power supply, drawing 12.2 amperes. The pump can handle a maximum flow rate of 54 cubic meters per hour, equivalent to 900 liters per minute, making it suitable for high-volume water transfer tasks. It can generate a maximum head of 21 meters, allowing it to lift water efficiently over considerable heights. This Sistema sewage pump is capable of handling liquids at temperatures up to 35°C for domestic use, complying with EN 60335-2-41 standards, and up to 40°C for other applications. It can be immersed up to 10 meters deep, suitable for various installation environments, with a minimum suction level of 150 mm to ensure proper operation. Designed for continuous duty, the pump is built with insulation class F for safety and durability, and features an IP68 protection rating, making it resistant to dust and water ingress. Additionally, it includes thermic protection to prevent overheating during prolonged use, ensuring longevity and reliable performance in demanding conditions.
| Specification | Value |
| Power (HP) | 5.5 |
| Power (kW) | 4 |
| Number of phases | Three-phase |
| Current | 12.2 A |
| Maximum Flow rate (m3/h) | 54 |
| Maximum Flow rate (l/min) | 900 |
| Maximum head (m) | 21 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Min. suction level | 150 mm |
| Continuous duty | Yes |
| Insulation Class | F |
| Protection degree | IP68 |
| Thermic protection | Yes |

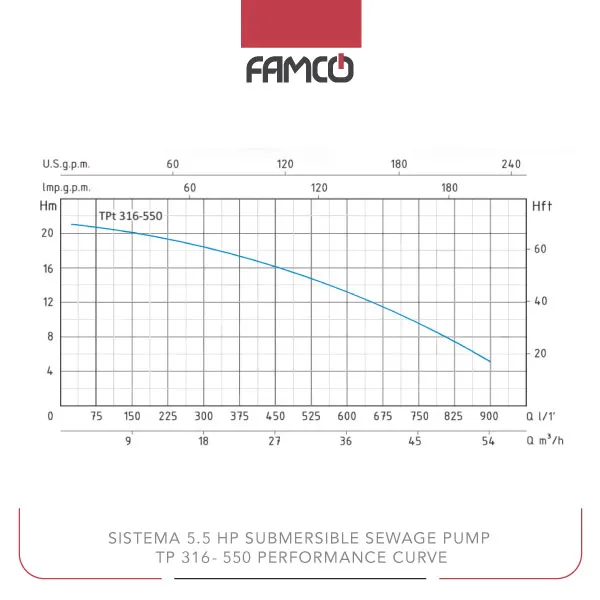

Sistema 5.5 HP Submersible Sewage Pump TP 316-550 Performance Data
| Q (m3/h) | 1.5 | 3 | 6 | 8 | 9 | 12 | 24 | 36 | 48 | 54 |
| Q (l/min) | 25 | 50 | 100 | 133 | 150 | 200 | 400 | 600 | 800 | 900 |
| H (m) | 21 | 20.5 | 20 | 19.8 | 19.6 | 19 | 16.8 | 13.8 | 8 | 5 |
Sistema 5.5 HP Submersible Sewage Pump TP 316-550 Applications
- Water transfer in residential and industrial settings
- Irrigation systems for farms and gardens
- Drainage and flood control projects
- Circulating water in cooling systems
Sistema 5.5 HP Submersible Sewage Pump TP 316-550 Benefits
- High flow capacity for efficient water movement
- Durable build with IP68 protection for harsh environments
- Continuous duty operation for reliable performance
- Safe and protected with thermic and insulation features
Sistema 5.5 HP Submersible Sewage Pump TP 316-550 Price List
| No. | Name | Price |
| 1 | Sistema 5.5 HP Submersible Sewage Pump TP 316-550 Price | Contact us |
