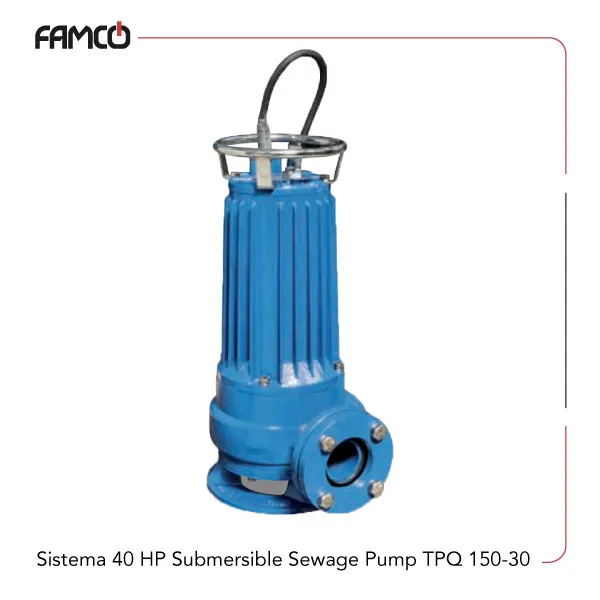

Sistema 40 HP Submersible Sewage Pump TPQ 150-30 Specifications
Sistema 40 HP submersible sewage pump TPQ 150-30 offers a power output of 40 HP (30 kW) and operates with a current of 56 A. It is designed for continuous duty, making it suitable for various demanding applications. The pump can handle a maximum flow rate of 300 cubic meters per hour, equivalent to 5000 liters per minute, and can generate a maximum head of 31.8 meters. It is capable of pumping liquids at temperatures up to 35°C for residential use, complying with EN 60335-2-41 standards, and up to 50°C for other industrial or commercial applications. This Sistema sewage pump can operate at a maximum immersion depth of 10 meters for home use, ensuring flexibility in installation. It is compatible with liquids having a pH range from 4 to 10, making it versatile for different types of fluids. Its robust construction and continuous operation capability make it ideal for water transfer, drainage, and other fluid handling tasks in various settings, including industrial, agricultural, and municipal environments.
| Specification | Value |
| Power (HP) | 40 |
| Power (kW) | 30 |
| Current | 56 A |
| Number of phases | Three-phase |
| Maximum Flow rate (m3/h) | 300 |
| Maximum Flow rate (l/min) | 5000 |
| Maximum head (m) | 31.8 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Temperature max. liquid | 50°C (for other uses) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Liquid pH | from 4 to 10 |
| Duty cycle | Continuous with fully submerged pump |

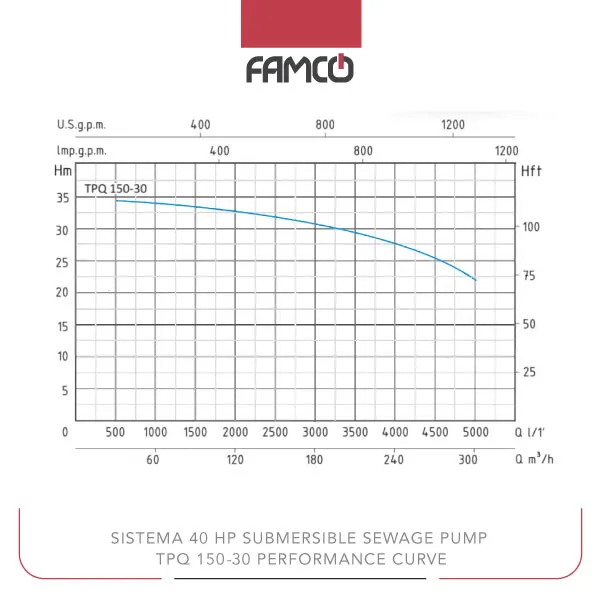

Sistema 40 HP Submersible Sewage Pump TPQ 150-30 Performance Data
| Q (m3/h) | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | 270 | 300 |
| Q (l/min) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| H (m) | 31.8 | 31 | 30.5 | 29.5 | 28.5 | 27 | 25.5 | 23.4 | 20 | 17 |
Sistema 40 HP Submersible Sewage Pump TPQ 150-30 Applications
- Water transfer in industrial plants
- Drainage and sewage systems
- Irrigation in agriculture
- Flood control and emergency water removal
Sistema 40 HP Submersible Sewage Pump TPQ 150-30 Benefits
- High flow rate for efficient water movement
- Continuous operation for long-term tasks
- Versatile with wide pH and temperature range
- Reliable and durable for demanding environments
Sistema 40 HP Submersible Sewage Pump TPQ 150-30 Price List
| No. | Name | Price |
| 1 | Sistema 40 HP Submersible Sewage Pump TPQ 150-30 Price | Contact us |
