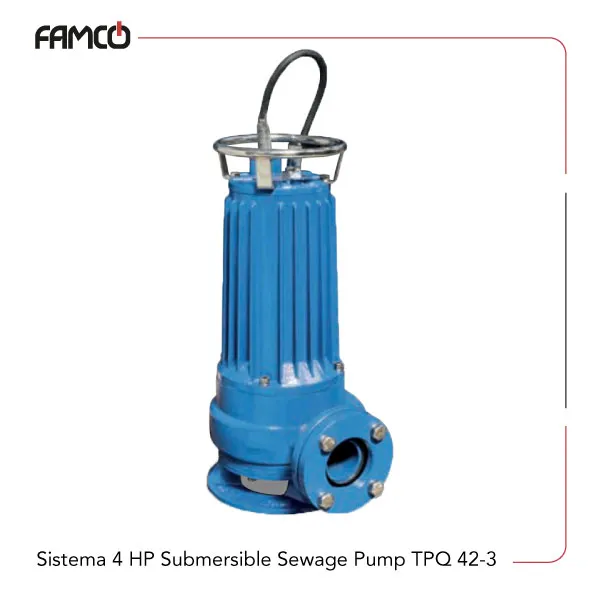

Sistema 4 HP Submersible Sewage Pump TPQ 42-3 Specifications
This powerful three-phase submersible pump features a 4 HP (3 kW) motor, drawing 6.5 amps. It can handle a maximum flow rate of 42 cubic meters per hour, which is equivalent to 700 liters per minute. The pump can generate a maximum head of 16 meters, making it suitable for various applications requiring significant lifting capacity. It operates efficiently with liquids up to 35°C for home use, complying with EN 60335-2-41 standards, and can handle liquids up to 50°C for other applications. This Sistema sewage pump is designed for continuous operation when fully submerged, with a maximum immersion depth of 10 meters. It is compatible with liquids having a pH range from 4 to 10, ensuring versatility across different liquid types. The pump’s robust construction and high performance make it ideal for demanding tasks such as water transfer, drainage, and industrial applications where reliable, continuous operation is essential.
| Specification | Value |
| Power (HP) | 4 |
| Power (kW) | 3 |
| Current | 6.5 A |
| Number of phases | Three-phase |
| Maximum Flow rate (m3/h) | 42 |
| Maximum Flow rate (l/min) | 700 |
| Maximum head (m) | 16 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 m (for home use according to EN 60335-2-41) |
| Liquid pH | from 4 to 10 |
| Operation | Continuous duty with completely submersed pump |

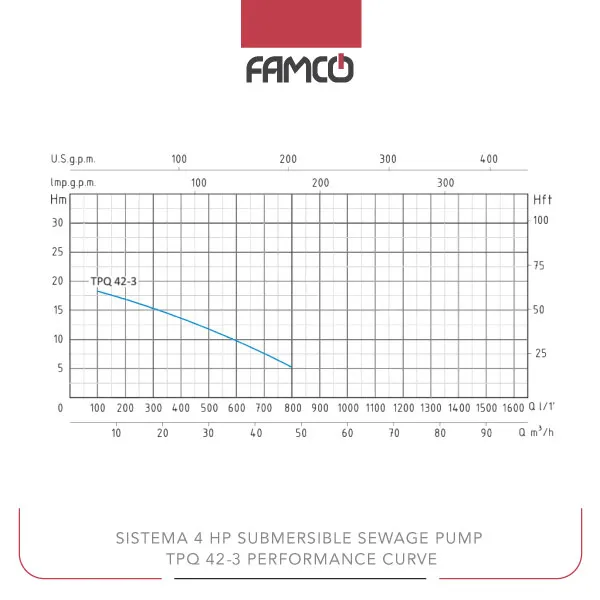

Sistema 4 HP Submersible Sewage Pump TPQ 42-3 Performance Data
| Q (m3/h) | 6 | 12 | 18 | 24 | 36 | 48 |
| Q (l/min) | 100 | 200 | 300 | 400 | 600 | 800 |
| H (m) | 18 | 17 | 15 | 13 | 9.5 | 5 |
Sistema 4 HP Submersible Sewage Pump TPQ 42-3 Applications
- Water transfer in residential and industrial settings
- Drainage and flood control
- Irrigation systems
- Industrial fluid handling
Sistema 4 HP Submersible Sewage Pump TPQ 42-3 Benefits
- High flow capacity for efficient water movement
- Reliable continuous operation when submerged
- Versatile temperature and pH range handling
- Suitable for various applications with deep immersion capability
Sistema 4 HP Submersible Sewage Pump TPQ 42-3 Price List
| No. | Name | Price |
| 1 | Sistema 4 HP Submersible Sewage Pump TPQ 42-3 Price | Contact us |
