Sistema 4 HP Multistage Submersible Pump ST 18-35 Specifications
This product features a powerful 3 kW (4 HP) motor, capable of delivering a maximum flow rate of 6 cubic meters per hour or 100 liters per minute. It can generate a maximum head of 231 meters, making it suitable for high-pressure applications. The device weighs only 7.9 kilograms, ensuring portability and ease of installation. This Sistema submersible pump is designed to operate efficiently at a maximum immersion depth of 150 meters and can handle liquid temperatures up to 35°C. The insulation class is F, providing good thermal protection, while the protection class IP68 ensures it is dust-tight and waterproof, suitable for continuous submersion in harsh environments.
| Specification | Value |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Maximum Flow rate (m3/h) | 6 |
| Maximum Flow rate (l/min) | 100 |
| Maximum head (m) | 231 |
| Weight (kg) | 7.9 |
| Maximum depth of immersion (m) | 150 |
| Liquid temperature (°C) | 35 |
| Insulation class | F |
| Protection class | IP68 |

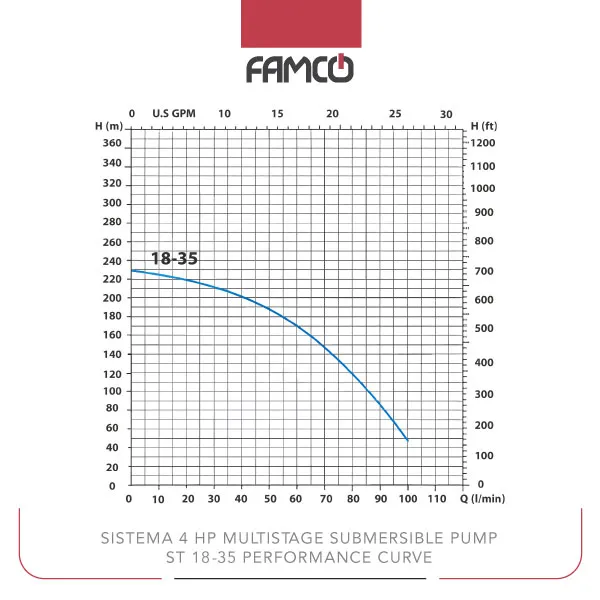

Sistema 4 HP Multistage Submersible Pump ST 18-35 Performance Data
| Q (m3h) | 0 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
| Q (l/min) | 0 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| H (m) | 231 | 217 | 212 | 208 | 202 | 189 | 170 | 149 | 120 | 87 | 50 |
Sistema 4 HP Multistage Submersible Pump ST 18-35 Applications
- Deep well water extraction
- Industrial fluid transfer
- Water supply systems
- Aquaculture and irrigation
Sistema 4 HP Multistage Submersible Pump ST 18-35 Benefits
- High efficiency with powerful motor
- Suitable for deep immersion up to 150 meters
- Durable and waterproof with IP68 protection
- Lightweight and portable for easy handling
Sistema 4 HP Multistage Submersible Pump ST 18-35 Price List
| No. | Name | Price |
| 1 | Sistema 4 HP Multistage Submersible Pump ST 18-35 Price | Contact us |
