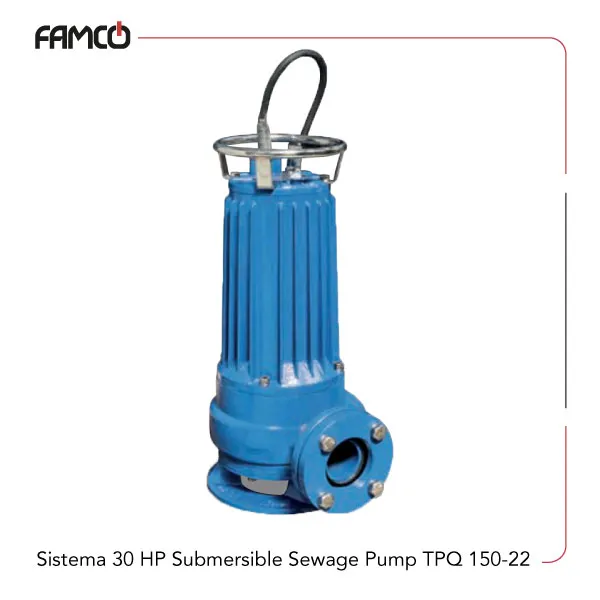

Sistema 30 HP Submersible Sewage Pump TPQ 150-22 Specifications
Sistema submersible sewage pump TPQ 150-22 offers a powerful 30 HP (22 kW) motor, designed for heavy-duty applications. It operates on a three-phase power supply, drawing 45 amps of current. Capable of handling a maximum flow rate of 300 cubic meters per hour or 5000 liters per minute, it is suitable for large-scale water transfer tasks. The maximum head height is 29.5 meters, making it effective for lifting water over significant distances. This Sistema sewage pump can operate with liquids at temperatures up to 35°C for residential use, complying with EN 60335-2-41 standards, and up to 50°C for other industrial applications. The pump can be fully submerged up to 10 meters deep, ensuring versatility in various environments. It is compatible with liquids having a pH level between 4 and 10, making it suitable for different water qualities. Designed for continuous operation, this pump is ideal for long-term use in demanding settings, providing reliable performance with its robust construction and efficient motor.
| Specification | Value |
| Power (HP) | 30 |
| Power (kW) | 22 |
| Current | 45 A |
| Number of phases | Three-phase |
| Maximum Flow rate (m3/h) | 300 |
| Maximum Flow rate (l/min) | 5000 |
| Maximum head (m) | 29.5 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Liquid pH | from 4 to 10 |
| Continuous duty | Yes, with completely submersed pump |

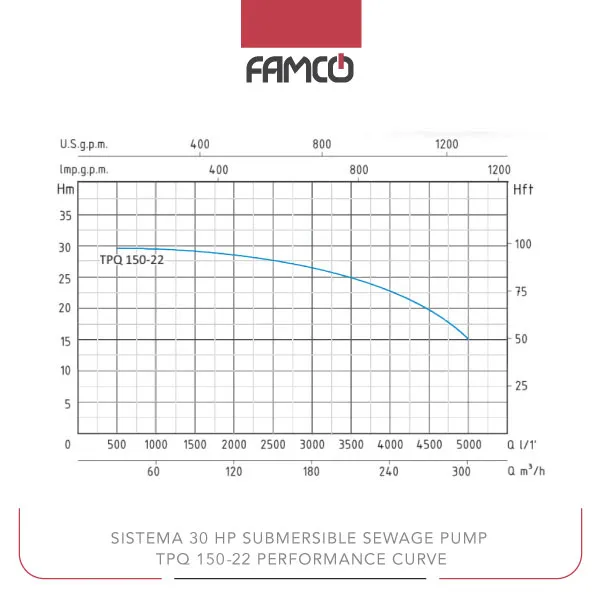

Sistema 30 HP Submersible Sewage Pump TPQ 150-22 Performance Data
| Q (m3/h) | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | 270 | 300 |
| Q (l/min) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| H (m) | 29.5 | 29.1 | 28.1 | 28.5 | 27.5 | 26.2 | 24.3 | 22 | 17.5 | 15 |
Sistema 30 HP Submersible Sewage Pump TPQ 150-22 Applications
- Industrial water transfer and drainage
- Agricultural irrigation systems
- Large residential water supply
- Construction site dewatering
Sistema 30 HP Submersible Sewage Pump TPQ 150-22 Benefits
- High flow capacity for large-scale tasks
- Reliable continuous operation
- Suitable for various liquids and conditions
- Deep immersion capability for versatile use
Sistema 30 HP Submersible Sewage Pump TPQ 150-22 Price List
| No. | Name | Price |
| 1 | Sistema 30 HP Submersible Sewage Pump TPQ 150-22 Price | Contact us |
