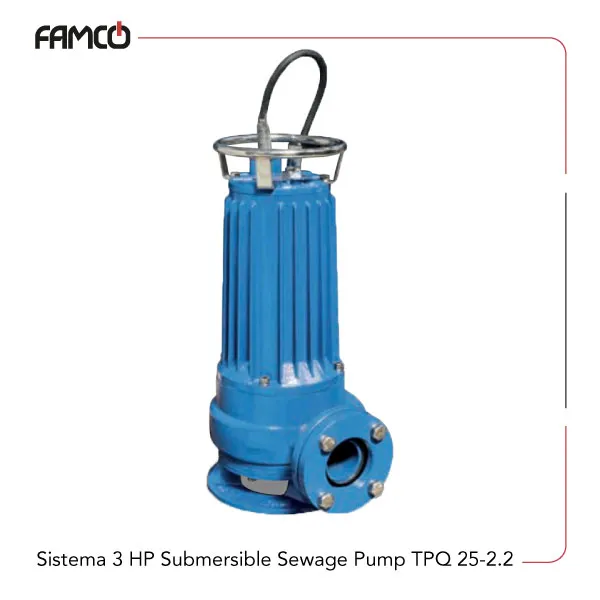

Sistema 3 HP Submersible Sewage Pump TPQ 25-2.2 Specifications
This submersible pump offers a powerful 3 HP (2.2 kW) motor, capable of handling high flow rates up to 42 cubic meters per hour or 700 liters per minute. It can operate at a maximum head of 16 meters, making it suitable for various water transfer tasks. This Sistema sewage pump is designed for continuous operation when fully submerged, ensuring reliable performance over extended periods. It can handle liquids with pH levels from 4 to 10, making it versatile for different water qualities. For home applications, it supports liquid temperatures up to 35°C and can be immersed up to 10 meters deep, complying with EN 60335-2-41 standards. For other uses, it can manage liquids up to 50°C, providing flexibility for industrial or agricultural tasks. Its robust construction and high efficiency make it ideal for demanding environments where consistent water movement is required, whether for irrigation, drainage, or water supply systems.
| Specification | Value |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Maximum Flow rate (m3/h) | 42 |
| Maximum Flow rate (l/min) | 700 |
| Maximum head (m) | 16 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Liquid pH | from 4 to 10 |
| Continuous duty | Yes, with completely submersed pump |
Sistema 3 HP Submersible Sewage Pump TPQ 25-2.2 Performance Data
| Q (m3/h) | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 39 | 42 |
| Q (l/min) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| H (m) | 16 | 15.6 | 15 | 14.5 | 13.7 | 13 | 12 | 11.5 | 10.2 | 9.6 | 8.5 | 7.5 | 6 |
Sistema 3 HP Submersible Sewage Pump TPQ 25-2.2 Applications
- Water transfer in residential settings
- Irrigation and agricultural use
- Drainage and flood control
- Industrial water pumping
Sistema 3 HP Submersible Sewage Pump TPQ 25-2.2 Benefits
- High flow rate for quick water movement
- Reliable continuous operation when submerged
- Versatile with different liquids and temperatures
- Durable design suitable for tough environments
Sistema 3 HP Submersible Sewage Pump TPQ 25-2.2 Price List
| No. | Name | Price |
| 1 | Sistema 3 HP Submersible Sewage Pump TPQ 25-2.2 Price | Contact us |
