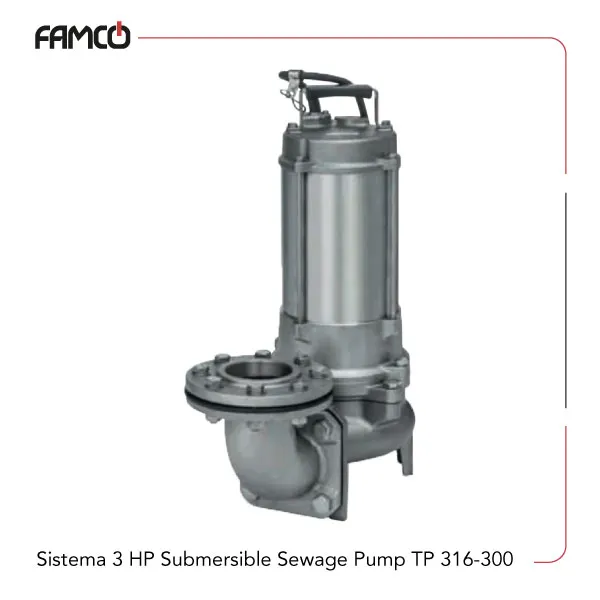

Sistema 3 HP Submersible Sewage Pump TP 316-300 Specifications
Sistema Submersible Sewage Pump TP 316-300 features a powerful 3 HP (2.2 kW) motor designed for reliable performance in various applications. It operates on a three-phase power supply, drawing 5.5 amperes. The pump can handle a maximum flow rate of 54 cubic meters per hour, equivalent to 900 liters per minute, making it suitable for high-demand tasks. It can generate a maximum head of 15.7 meters, allowing it to lift liquids efficiently over considerable distances. This Sistema sewage pump is capable of working with liquids at temperatures up to 35°C for home use, complying with EN 60335-2-41 standards, and up to 40°C for other applications. It can be immersed up to 10 meters deep, ideal for various pumping needs, with a minimum suction level of 150 mm to ensure proper operation. Designed for continuous duty, it is built with an insulation class F and a protection rating of IP68, providing excellent durability and safety. The pump also includes thermic protection to prevent overheating during prolonged use, ensuring longevity and reliable operation in demanding environments.
| Specification | Value |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Number of phases | Three-phase |
| Current | 5.5 A |
| Maximum Flow rate (m3/h) | 54 |
| Maximum Flow rate (l/min) | 900 |
| Maximum head (m) | 15.7 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Min. suction level | 150 mm |
| Continuous duty | Yes |
| Insulation Class | F |
| Protection degree | IP68 |
| Thermic protection | Yes |

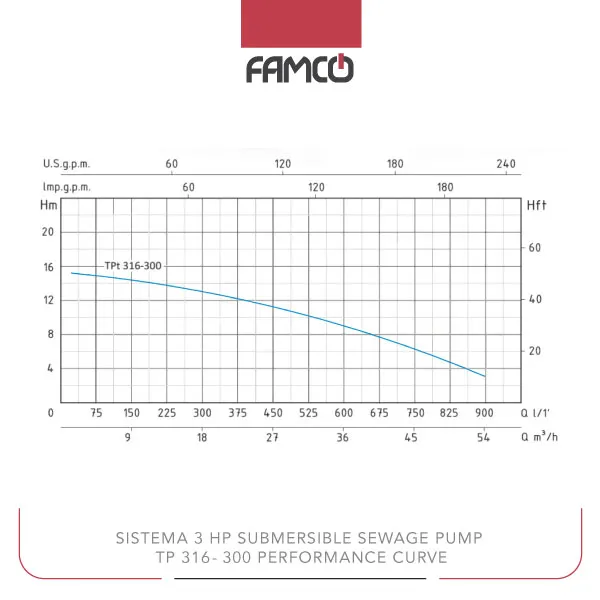

Sistema 3 HP Submersible Sewage Pump TP 316-300 Performance Data
| Q (m3/h) | 1.5 | 3 | 6 | 8 | 9 | 12 | 24 | 36 | 48 | 54 |
| Q (l/min) | 25 | 50 | 100 | 133 | 150 | 200 | 400 | 600 | 800 | 900 |
| H (m) | 15.7 | 15.4 | 15 | 14.6 | 14.4 | 14.2 | 13 | 9 | 5 | 3 |
Sistema 3 HP Submersible Sewage Pump TP 316-300 Applications
- Water transfer in residential and industrial settings
- Irrigation systems for farms and gardens
- Deep well water extraction
- Industrial fluid circulation and transfer
Sistema 3 HP Submersible Sewage Pump TP 316-300 Benefits
- High flow rate for efficient water movement
- Durable build with IP68 protection for harsh environments
- Continuous operation capability for long-term use
- Thermic protection to prevent overheating and extend lifespan
Sistema 3 HP Submersible Sewage Pump TP 316-300 Price List
| No. | Name | Price |
| 1 | Sistema 3 HP Submersible Sewage Pump TP 316-300 Price | Contact us |
