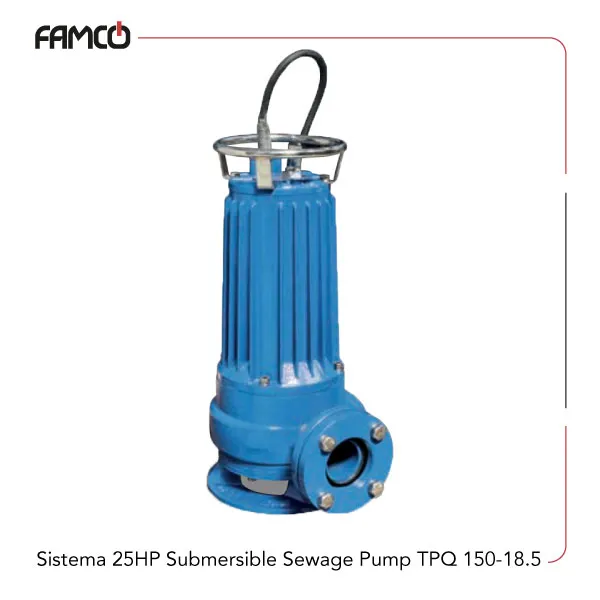

Sistema 25 HP Submersible Sewage Pump TPQ 150-18.5 Specifications
This powerful three-phase submersible pump offers a high performance with 25 HP (18.5 kW) of power and a current draw of 43 A. It can handle a maximum flow rate of 270 cubic meters per hour, which translates to 4500 liters per minute, making it suitable for large-scale water transfer or drainage tasks. This Sistema sewage pump can generate a maximum head of 24 meters, allowing it to lift water efficiently over significant heights. It is designed for continuous operation when fully submerged, ideal for long-term applications. The device supports liquid temperatures up to 35°C for residential use, complying with EN 60335-2-41 standards, and can handle higher temperatures up to 50°C for other industrial or commercial uses. It can operate at a maximum immersion depth of 10 meters, suitable for deep water applications. The pump is compatible with liquids having a pH range from 4 to 10, ensuring versatility across different water qualities. Its robust construction and specifications make it suitable for various demanding environments, including water transfer, drainage, and industrial processes.
| Specification | Value |
| Power (HP) | 25 |
| Power (kW) | 18.5 |
| Current | 43 A |
| Number of phases | Three-phase |
| Maximum Flow rate (m3/h) | 270 |
| Maximum Flow rate (l/min) | 4500 |
| Maximum head (m) | 24 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Liquid pH | from 4 to 10 |
| Operation | Continuous duty with completely submersed pump |

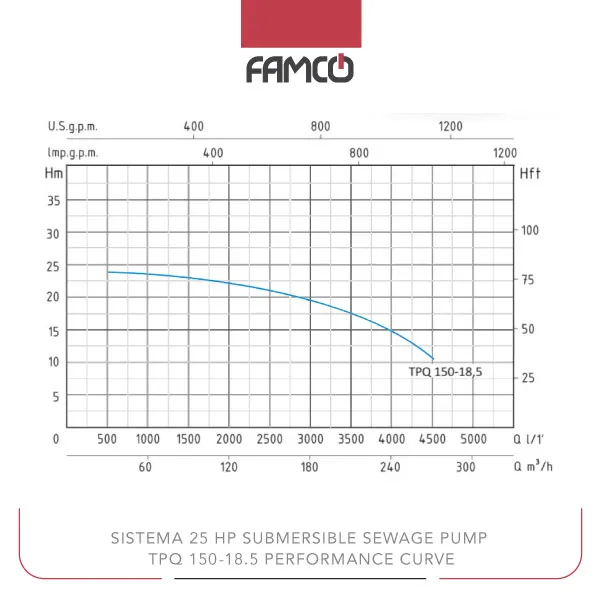

Sistema 25 HP Submersible Sewage Pump TPQ 150-18.5 Performance Data
| Q (m3/h) | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | 270 |
| Q (l/min) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
| H (m) | 24 | 23.8 | 23.5 | 22.6 | 20.5 | 20 | 17.9 | 15 | 11.5 |
Sistema 25 HP Submersible Sewage Pump TPQ 150-18.5 Applications
- Water transfer in large-scale projects
- Drainage and sewage management
- Industrial water pumping
- Deep well water extraction
Sistema 25 HP Submersible Sewage Pump TPQ 150-18.5 Benefits
- High power and flow rate for demanding tasks
- Reliable continuous operation when submerged
- Versatile with temperature and pH compatibility
- Suitable for both residential and industrial use
Sistema 25 HP Submersible Sewage Pump TPQ 150-18.5 Price List
| No. | Name | Price |
| 1 | Sistema 25 HP Submersible Sewage Pump TPQ 150-18.5 Price | Contact us |
