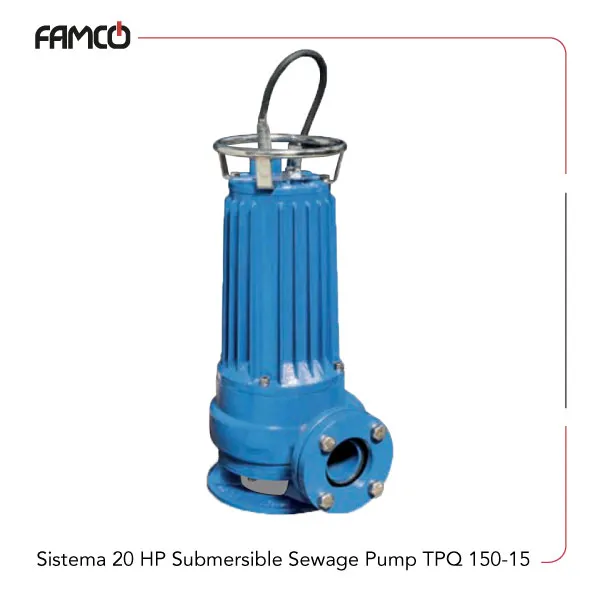

Sistema 20 HP Submersible Sewage Pump TPQ 150-15 Specifications
Sistema submersible sewage pump TPQ 150-15 offers a powerful 20 HP (15 kW) motor, designed for heavy-duty applications. It operates on a three-phase power supply, drawing 31 amperes. The pump can handle a maximum flow rate of 180 cubic meters per hour, which translates to 3000 liters per minute, making it suitable for large-scale water transfer tasks. It can generate a maximum head of 23.5 meters, providing strong vertical lift capabilities. This Sistema sewage pump is suitable for liquids with a pH range from 4 to 10, ensuring compatibility with various water qualities. It is designed for continuous operation when fully submerged, making it ideal for long-term use in pumping applications. The pump can handle liquids at temperatures up to 35°C for residential purposes, complying with EN 60335-2-41 standards, and up to 50°C for other industrial uses. It can be immersed up to 10 meters deep, ensuring flexibility in installation and operation. Its robust construction and high performance make it suitable for demanding environments where reliable and efficient water movement is required.
| Specification | Value |
| Power (HP) | 20 |
| Power (kW) | 15 |
| Current | 31 A |
| Number of phases | Three-phase |
| Maximum Flow rate (m3/h) | 180 |
| Maximum Flow rate (l/min) | 3000 |
| Maximum head (m) | 23.5 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Liquid pH | from 4 to 10 |
| Duty cycle | Continuous with fully submerged pump |

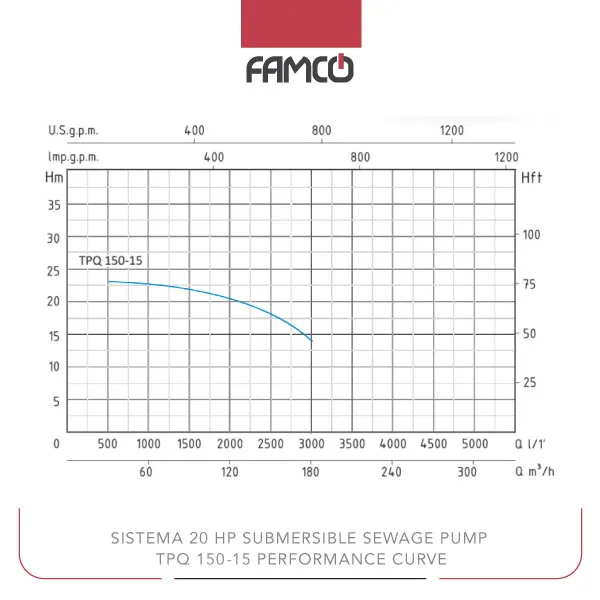

Sistema 20 HP Submersible Sewage Pump TPQ 150-15 Performance Data
| Q (m3/h) | 30 | 60 | 90 | 120 | 150 | 180 |
| Q (l/min) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 |
| H (m) | 23.5 | 23.3 | 22.2 | 23 | 18.3 | 14 |
Sistema 20 HP Submersible Sewage Pump TPQ 150-15 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Large residential water supply
- Deep well pumping
Sistema 20 HP Submersible Sewage Pump TPQ 150-15 Benefits
- High flow capacity for large volume transfer
- Durable and reliable for continuous use
- Versatile with temperature and pH range
- Suitable for deep immersion and demanding environments
Sistema 20 HP Submersible Sewage Pump TPQ 150-15 Price List
| No. | Name | Price |
| 1 | Sistema 20 HP Submersible Sewage Pump TPQ 150-15 Price | Contact us |
