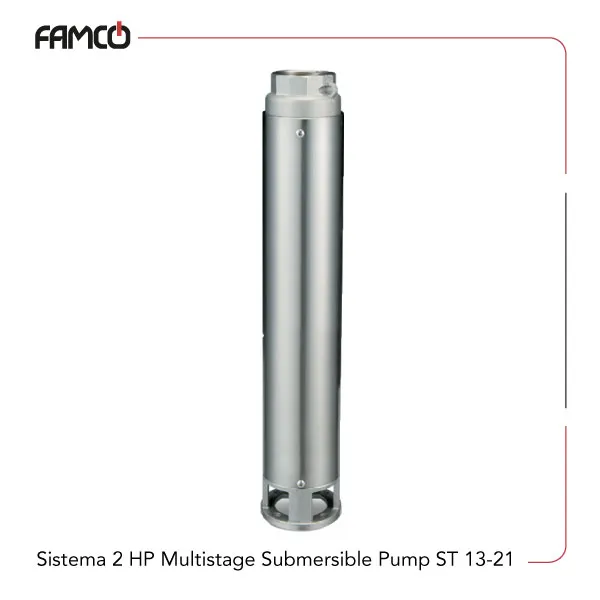

Sistema 2 HP Multistage Submersible Pump ST 13-21

Sistema 2 HP Multistage Submersible Pump ST 13-21 Specifications

This pump features a powerful 1.5 kW (2 HP) motor, capable of handling flow rates up to 4.2 cubic meters per hour or 70 liters per minute. It is designed with a head range between 49 and 142 meters, making it suitable for various high-demand applications. The body is made of durable cast iron, ensuring longevity and resistance to harsh conditions. It operates efficiently at a liquid temperature of up to 35°C. The pump is protected with an IP68 degree of protection, providing excellent resistance against dust and water ingress. This Sistema submersible pump has an insulation class B, which supports safe and reliable operation. The device weighs only 5 kg, making it relatively lightweight for its power capacity. The connection size is DN 1 1/4 inches, suitable for standard piping systems.

Specification	Value
Power (kW)	1.5
Power (HP)	2
Flow rate (m3/h)	0-4.2
Flow rate (l/min)	0-70
Head range (m)	49-142
Insulation class	B
Protection degree	IP68
Body	Cast iron
Liquid temperature (°C)	35
Weight (kg)	5
DNM	1 1/4″

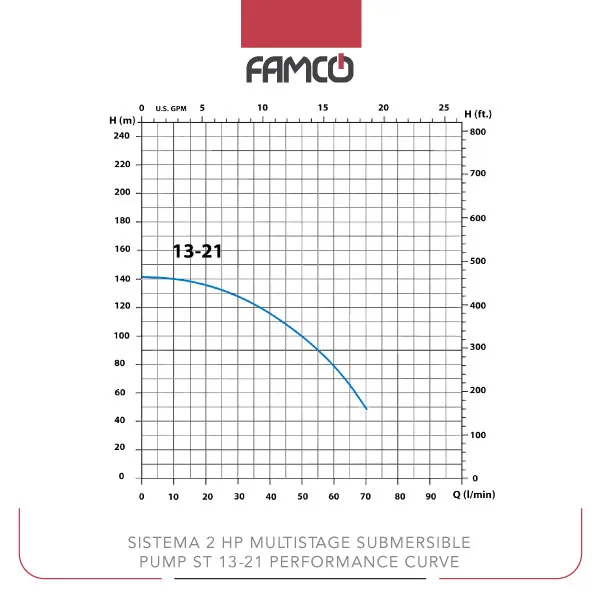

Sistema 2 HP Multistage Submersible Pump ST 13-21 Performance Data

Q (m3/h)	0	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	4.2
Q (l/min)	0	15	20	25	30	35	40	45	50	50
H (m)	142	135	132	127	122	115	108	100	79	49

Sistema 2 HP Multistage Submersible Pump ST 13-21 Applications

• Irrigation systems in agriculture
• Water supply for residential buildings
• Industrial water transfer
• Pressure boosting in commercial facilities



Sistema 2 HP Multistage Submersible Pump ST 13-21 Benefits

• Durable cast iron construction for long-lasting use
• High efficiency with adjustable flow and head ranges
• Excellent protection against dust and water ingress (IP68)
• Lightweight design for easy installation and maintenance



Sistema 2 HP Multistage Submersible Pump ST 13-21 Price List

No.	Name	Price
1	Sistema 2 HP Multistage Submersible Pump ST 13-21 Price	Contact us
