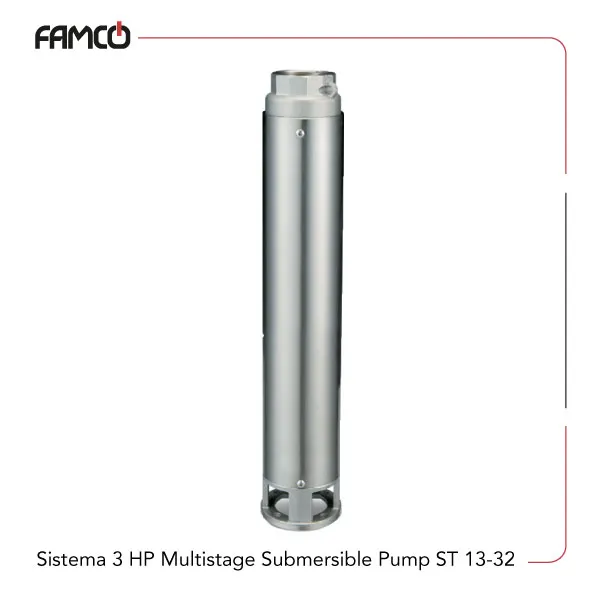

Sistema 2.2 HP Multistage Submersible Pump ST 13-32 Specifications
Sistema multistage submersible pump ST 13-32 features a powerful 2.2 kW (3 HP) motor, suitable for various fluid transfer tasks. It can handle flow rates up to 4.2 cubic meters per hour or 70 liters per minute, making it ideal for medium-duty applications. The head range varies from 62 to 208 meters, providing flexibility for different height requirements. The body is made of durable cast iron, ensuring longevity and resistance to corrosion. This Sistema submersible pump operates efficiently at a liquid temperature of up to 35°C. The pump is designed with an insulation class B and a protection degree of IP68, making it suitable for harsh environments and outdoor use. Weighing only 7.1 kg, it is relatively lightweight and easy to install. The connection size is DN 1 1/4 inches, compatible with standard piping systems.
| Specification | Value |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Flow rate (m3/h) | 0-4.2 |
| Flow rate (l/min) | 0-70 |
| Head range (m) | 62-208 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Liquid temperature (°C) | 35 |
| Weight (kg) | 7.1 |
| DNM | 1 1/4″ |

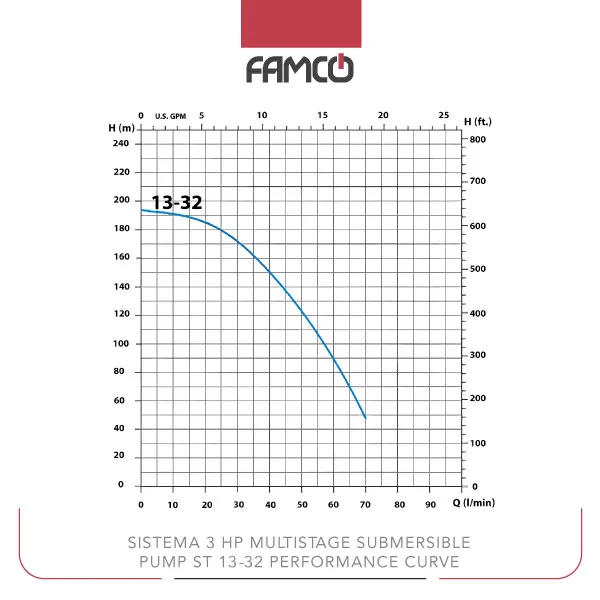

Sistema2.2 HP Multistage Submersible Pump ST 13-32 Performance Data
| Q (m3/h) | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 4.2 |
| Q (l/min) | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 50 |
| H (m) | 208 | 200 | 194 | 187 | 177 | 165 | 152 | 138 | 104 | 62 |
Sistema2.2 HP Multistage Submersible Pump ST 13-32 Applications
- Water supply systems
- Irrigation in agriculture
- Industrial fluid transfer
- Municipal water management
Sistema2.2 HP Multistage Submersible Pump ST 13-32 Benefits
- High durability with cast iron body
- Flexible flow and head range
- Suitable for outdoor use with IP68 protection
- Lightweight and easy to install
Sistema 2.2 HP Multistage Submersible Pump ST 13-32Price List
| No. | Name | Price |
| 1 | Sistema 2.2 HP Multistage Submersible Pump ST 13-32 Price | Contact us |
