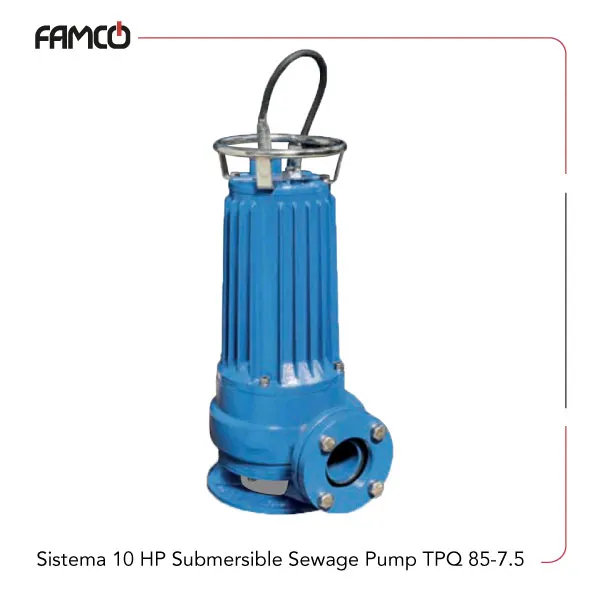

Sistema 10 HP Submersible Sewage Pump TPQ 85-7.5 Specifications
Sistema 10 HP submersible sewage pump TPQ 85-7.5 features a 10 HP (7.5 kW) motor, providing reliable performance for various applications. It operates at a current of 8.5 A and can handle a maximum flow rate of 96 cubic meters per hour, equivalent to 1600 liters per minute. This Sistema sewage pump can generate a maximum head of 30 meters, making it suitable for lifting water from deep sources. It is designed for continuous operation when fully submerged, ensuring consistent performance. The device supports liquid temperatures up to 35°C for home use, complying with EN 60335-2-41 standards, and can handle liquids up to 50°C for other applications. It is compatible with liquids having a pH range from 4 to 10, making it versatile for different water qualities. The maximum immersion depth is 10 meters, ideal for well or tank installations, and it is suitable for various industrial or domestic uses where reliable water transfer is needed.
| Specification | Value |
| Power (HP) | 10 |
| Power (kW) | 7.5 |
| Current | 8.5 A |
| Number of phases | Three-phase |
| Maximum Flow rate (m3/h) | 96 |
| Maximum Flow rate (l/min) | 1600 |
| Maximum head (m) | 30 |
| Liquid temperature | up to 35°C (for home use according to EN 60335-2-41) |
| Temperature max. liquid | 50°C (for other uses) |
| Maximum immersion depth | 10 meters (for home use according to EN 60335-2-41) |
| Liquid pH | from 4 to 10 |
| Operation | Continuous duty with completely submersed pump |

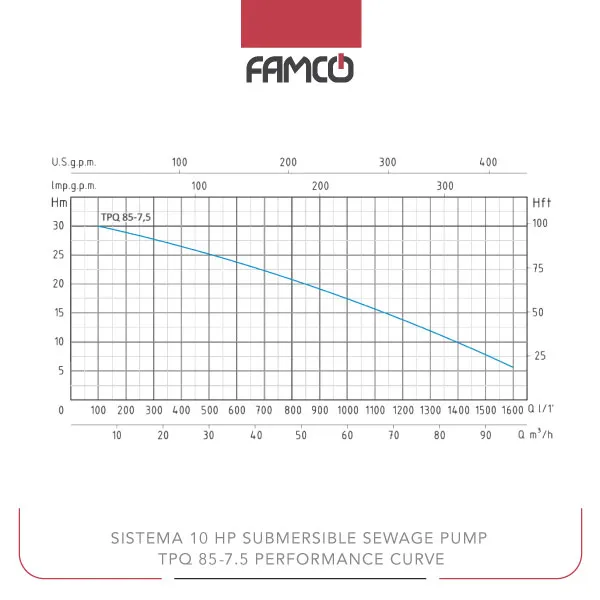

Sistema 10 HP Submersible Sewage Pump TPQ 85-7.5 Perforamnce Data
| Q (m3/h) | 6 | 12 | 18 | 24 | 36 | 48 | 60 | 72 | 84 | 96 |
| Q (l/min) | 100 | 200 | 300 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 |
| H (m) | 30 | 28.5 | 27.5 | 26.5 | 24 | 21 | 17.5 | 13 | 10 | 6 |
Sistema 10 HP Submersible Sewage Pump TPQ 85-7.5 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Domestic water supply
Sistema 10 HP Submersible Sewage Pump TPQ 85-7.5 Benefits
- High power and flow capacity for demanding tasks
- Reliable continuous operation when submerged
- Suitable for various liquids and temperatures
- Deep immersion capability up to 10 meters
Sistema 10 HP Submersible Sewage Pump TPQ 85-7.5 Price List
| No. | Name | Price |
| 1 | Sistema 10 HP Submersible Sewage Pump TPQ 85-7.5 Price | Contact us |
