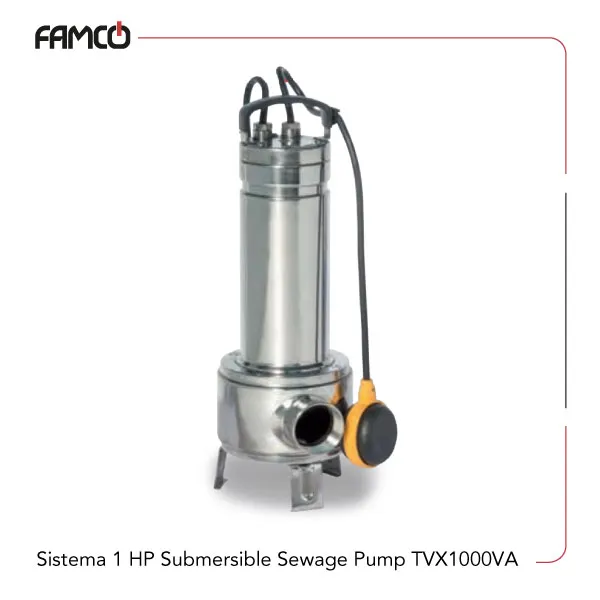

Overview of Sistema 1 HP Submersible Sewage Pump TVX1000VA

Sistema 1 HP submersible sewage pump TVX1000VA offers a solid balance of power and efficiency for everyday pumping tasks. With a 1 HP motor (0.75 kW) and a single-phase setup, it runs on 4.8 A, making it suitable for homes, gardens, and small commercial use where simple installation matters. Its performance stands out through its output capacity. It can move up to 21 m3/h, which translates to 350 l/min, giving it the ability to handle large volumes of water in a short time. Whether you need to empty a pool, support irrigation, or transfer water between tanks, this flow rate makes the work noticeably faster and less demanding.

Sistema 1 HP Submersible Sewage Pump TVX1000VA Specifications

Sistema 1 HP submersible sewage pump TVX1000VA is equipped with a 1 HP (0.75 kW) motor designed for single-phase power, making it suitable for both household setups and light industrial use. It draws 4.8 amperes and can move up to 21 cubic meters of water per hour, equal to 350 liters per minute. With a maximum head of 9 meters, it can transfer water effectively across moderate height differences. This Sistema sewage pump can handle liquids up to 35°C, making it a practical choice for domestic water systems, irrigation, and general fluid transfer. The pump is made for continuous operation, allowing it to run for long periods without interruption. It comes with insulation class F for thermal protection and an IP 68 rating, meaning it is fully sealed against dust and water, suitable for outdoor placement or submerged use. The inlet can take grain sizes of 35 mm on the TVX 750/VA model and 50 mm on the standard version, offering flexibility when dealing with particles in the water. The minimum suction level is 120 mm, and it can be immersed up to 5 meters, making it suitable for deeper installations such as sumps or pits.

Specification	Value
Power (HP)	1
Power (kW)	0.75
Number of phases	Single-phase
Current	4.8 A
Maximum Flow rate (m3/h)	21
Maximum Flow rate (l/min)	350
Maximum head (m)	9
Liquid temperature up to	35°C
Maximum immersion depth	5 meters
Grain size inlet Ø	50 mm
Min. suction level	120 mm
Duty cycle	Continuous
Insulation Class	F
Protection degree	IP 68

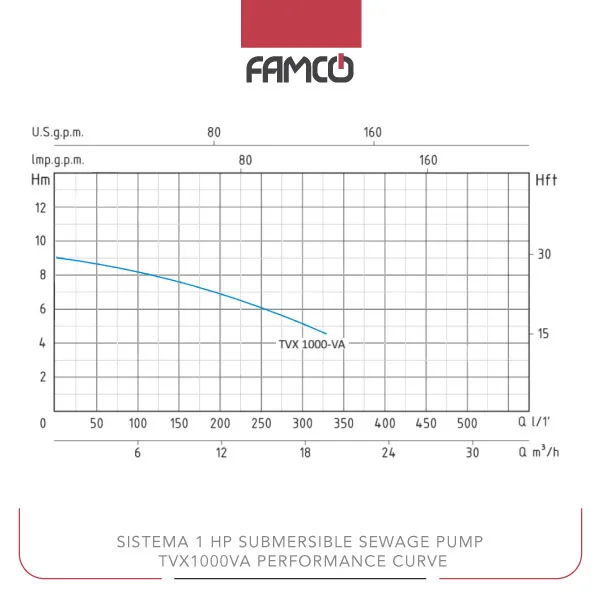

Sistema 1 HP Submersible Sewage Pump TVX1000VA Performance Data

Q (m3/h)	0	3.6	5.4	7.2	9	12	15	21
450Q (l/min)	0	60	90	120	150	200	250	350
H (m)	9	8.3	8	7.8	7.5	7	6	4

Sistema 1 HP Submersible Sewage Pump TVX1000VA Applications

Home water supply and transfer
Irrigation systems for gardens and farms
Sump and drainage pumping
Industrial fluid transfer tasks

Sistema 1 HP Submersible Sewage Pump TVX1000VA Benefits

High efficiency with a strong 1 HP motor
Durable and waterproof IP 68 protection
Suitable for continuous operation
Flexible inlet options for various setups

Sistema 1 HP Submersible Sewage Pump TVX1000VA Price List

No.	Name	Price
1	Sistema 1 HP Submersible Sewage Pump TVX1000VA Price	Contact us

Brand	Sistema
Number of Phases	Single-Phase
Current (A)	4.8
Maximum Flow Rate (L/min)	350
Maximum Flow Rate (m3/h)	21
Maximum Delivery Head (m)	9.0
Maximum Liquid Temperature (°C)	35
Maximum immersion depth (m)	5
Insulation Class	F
Degree of Protection	IP68
